(“Apparat” is an old-fashioned german word for a telephone or also for the extension number of a phone.)

As I just started with my next MidiBox project, I thought this time I´ll have to contribute a build blog. So here we go:

The idea is to build a synthesizer together with a vocoder into an old telephone. This brings up a few considerations:

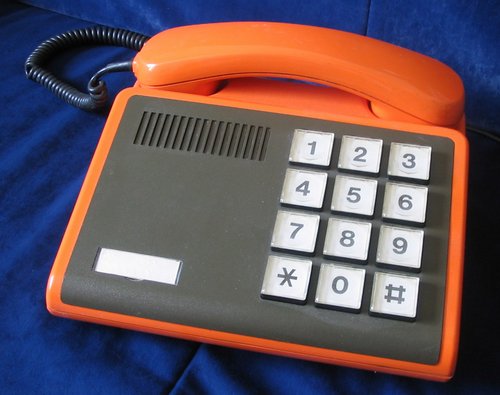

I really wanted a “Plug'n'Go” thing for stage use, so everything must fit into the phone. This means (of course) the phone needs to offer some space inside and has to look cool. I chose this phone - it's an 80ies phone built by SEL from the “design” line of the Deutsche Telekom. It emerged from a phone for disabled people, hence the really BIG dial buttons.

The vocoder has to be as small as possible. Mostly, vocoding is found in (at least) 9.5“ FX units. Standalone vocoders (like the MAM VF11 or DIY versions) are normally analogue and even bigger units. Then I found the Alesis Metavox - it´s the smallest (14 x 8 cm) and also cheapest vocoder existing (got it for 30 EUR new). Most of its functions are not really useful for music, all around the internal oscillator/LFO is more like a DJ toy. But the sound quality in external mode is quite good.

The carrier signal has to be polyphonic and should be quite brilliant to achieve good vocoder results. At first, I thought about using a MBSID but quickly rejected this idea. It's only polyphonic with (mostly boring) single oscillator sounds, and the higher frequencies are not really present. Even more, The vocoder would have to be used with the normal filter switched off, so a great part of the SID character would be gone anyway. So the choice is the MB FM.

My central objective is that the finished Apparat 20 should just look as much as possible like an ordinary phone. So there won´t be a display or any additional CS elements for the MBFM. Up to 20 patches will be selected via the normal dial keys (1..0, and you can select two “banks” with # and *). I can imagine some of you saying “But you can´t edit anything and wouldn´t it be cool to have this or that parameter accessible in live performance?”. Of course it would, but I'm building a big MBFM for home use anyway, and there's always JSynthLib…
The vocoder has only one single parameter to modify when external mode is selected (Sibilance, i.e. how much high frequency of the original signal will bleed thru, i.e. consonants). The corresponding pot will be mounted hidden beneath the pickup. The pickup will switch on and off the vocoder bypass and will get an electret capsule and a simple mic pre.

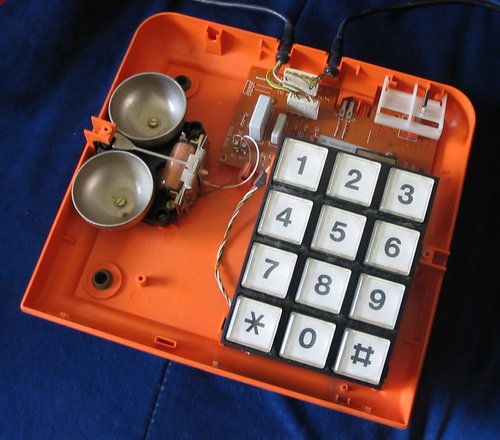

This is what the phone looks like inside - you can see there's quite some room in there.

After throwing everything out, I examined the keyboard to find out how to use it.

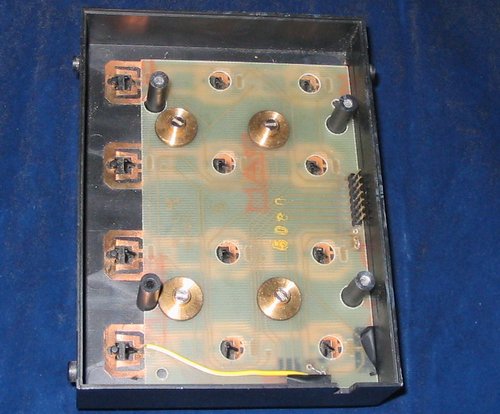

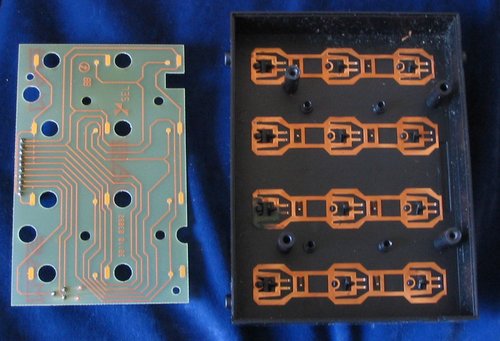

Under the control board there is a simple 4×3 button matrix (without diodes - but that's no problem, it won't be necessary to press more than one button at the same time).

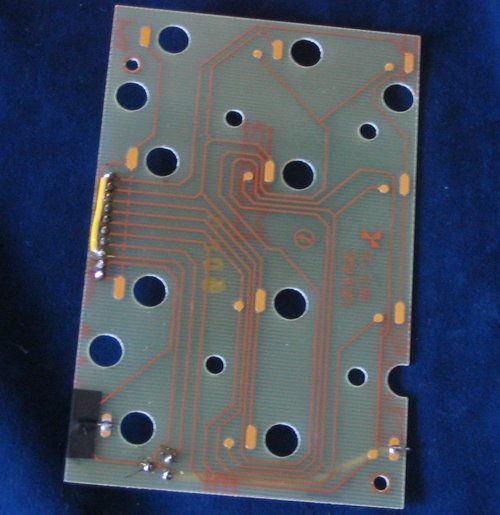

Because the contacts for the # and * buttons were not connected, I had to solder a few thin wires and I rewired the connector:

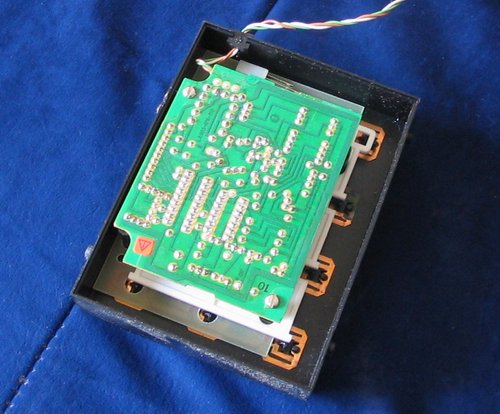

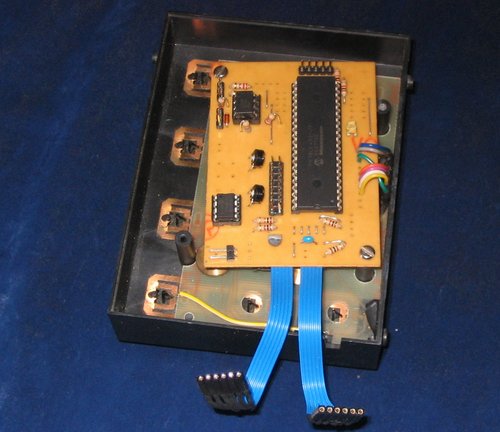

There's some space under the keypad, so I decided to mount the Core directly onto the backside of the keypad - the OPL3 module will still fit beneath it.

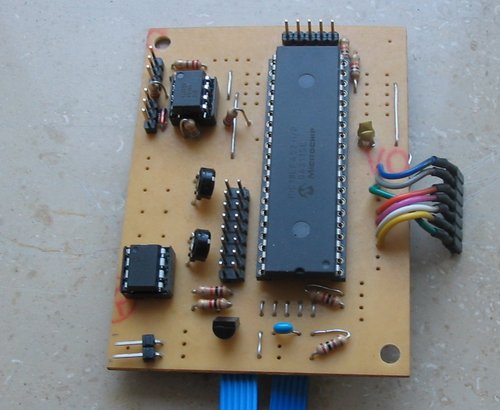

I built a simple Core module with most of the connectors and the PSU section left out - the phone will be powered from the nice +5V, +/-12V PSU I bought cheaply from Pollin last year, so there's no need for rectifier, regulator etc.. That way there was enough unused space on the PCB that I could cut a few tracks and add the BankStick directly to the core PCB.
The keypad matrix is connected to J5. There are 10k PullDown resistors where the three columns are connected. The OPL3 board wires were a bit tricky - the pin order is swapped because of the board being mounted heads-down.

So now I had a keyboard with integrated core - how to scan the key matrix? There are the sm_examples from Thorsten, but the FM has hardly any RAM left and it's also preferable not to use too much processing power. Debouncing is not necessary, because every button press is a single key action and it doesn't hurt if the same Program Change is executed a few times. So I chose to do my own simple matrix scan.

We need a few preparations: First, I defined the two variables MATRIX_BUTTON and MATRIX_LAYER. Then at the end of USER_Init (main.asm) I inserted this:

    ;; ------- prepare scan matrix --------------------------------------

    ;; disable the ADC which allocates the analog pins
    movlw	0x07
    movwf	ADCON1

    ;; Initialize J5 (PORTA 0..3,5 output, PORTE 0..2 input)
    bcf	TRISA, 0	; Pin RA.0 = output
    bcf	TRISA, 1	; Pin RA.1 = output
    bcf	TRISA, 2	; Pin RA.2 = output
    bcf	TRISA, 3	; Pin RA.3 = output
    bcf	TRISA, 5	; Pin RA.5 = output
    bsf	TRISE, 0	; Pin RE.0 = input
    bsf	TRISE, 1	; Pin RE.1 = input
    bsf	TRISE, 2	; Pin RE.2 = input

    ;; set initial state
    bcf LATA, 0
    bcf LATA, 1
    bcf LATA, 2
    bcf LATA, 3
    movlw 0x00
    movwf MATRIX_BUTTON
    movwf MATRIX_LAYER
;; --------------- end modification -----------------------------------------

#if CS_ENABLED
	;; reset the control surface
	goto	CS_MENU_Reset
#else
	return
#endif

The scanning is done in cs_menu_timer.inc. The following code is inserted at the beginning of the CS_MENU_TIMER function:

CS_MENU_TIMER

    ;; --------------- scan button matrix ---------------------------------------
    ;; rows on PORTE (with 10k PullDown resistors)
    ;; cols on PORTA (0..3)

    movlw 0x00

    bsf LATA, 3
    IFSET PORTE, 0, movlw 0x01
    IFSET PORTE, 1, movlw 0x02
    IFSET PORTE, 2, movlw 0x03
    bcf LATA, 3

    bsf LATA, 2
    IFSET PORTE, 0, movlw 0x04
    IFSET PORTE, 1, movlw 0x05
    IFSET PORTE, 2, movlw 0x06
    bcf LATA, 2

    bsf LATA, 1
    IFSET PORTE, 0, movlw 0x07
    IFSET PORTE, 1, movlw 0x08
    IFSET PORTE, 2, movlw 0x09
    bcf LATA, 1

    bsf LATA, 0
    IFSET PORTE, 0, movlw 0x11
    IFSET PORTE, 1, movlw 0x0A
    IFSET PORTE, 2, movlw 0x10
    bcf LATA, 0

    movwf MATRIX_BUTTON

;; --------------- end modification -----------------------------------------

  decfsz	CS_MENU_TIMER_CTR, F; since this routine is called every 1 ms, but the cursor
;; ...

Here MATRIX_BUTTON is set to a value greater 0 while a key is pressed. The result is then processed at the end of each USER_TICK in the main.asm:

;; --------------- Program Change on key press ------------------------------
    movlw 0x00					;; Button pressed?
    cpfsgt MATRIX_BUTTON
    return

    movlw 0x0f					;; Yes -> * or # ?
    cpfsgt MATRIX_BUTTON
    goto PATCH_SEL

    movlw 0x10					;; Yes -> select layer (1..10/11..20)
    cpfsgt MATRIX_BUTTON
    goto PATCH_10

    movlw 0x00					;; 1..10
    movwf MATRIX_LAYER
	return

PATCH_10					;; 11..20
    movlw 0x0A
    movwf MATRIX_LAYER
    return

PATCH_SEL					;; Normal patch selection
    movf MATRIX_BUTTON, W
    addlw (-1)
    movwf MIOS_PARAMETER2

    movf MATRIX_LAYER, W			;; Add layer
    addwf MIOS_PARAMETER2

    movlw 0xC0				;; Program Change Ch 1
    movwf MIOS_PARAMETER1
    call MBFM_MIDI_NotifyReceivedEvent

;; --------------- end modification -----------------------------------------
	return

There will be some more coding necessary for the vocoder (the MB has to toggle one vocoder button 5 times on startup to select external mode, and the telephone hook has to toggle the bypass “pedal” (on/off) for every change), but the key scanning already works. So let's finish the MBFM.

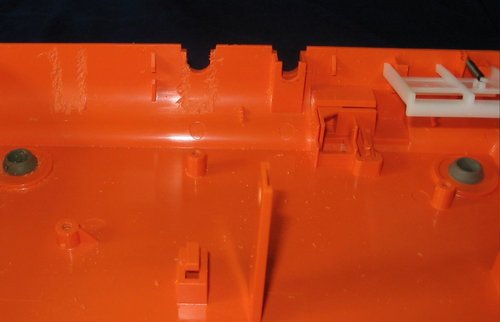

First, I milled away most of the mounting posts in the phone:

All jacks and the OPL3 board were installed and the wiring for power and MIDI was done:
