Core4Disc Midi-Expansion

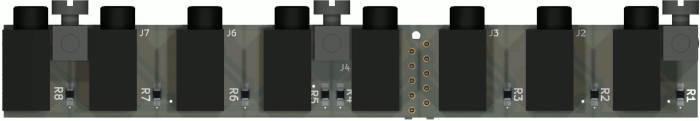

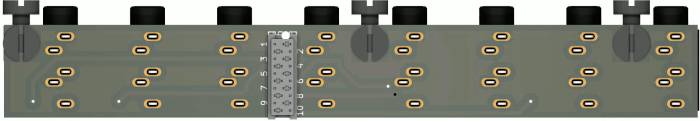

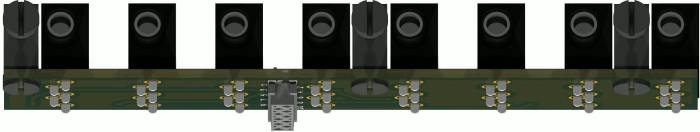

This are the Gate In/Out boards, 4 off them are needet to get 16x Gate-input/Trigger, and 16x Gate-Output triggermatrix5

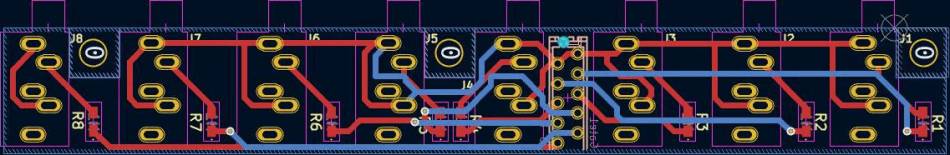

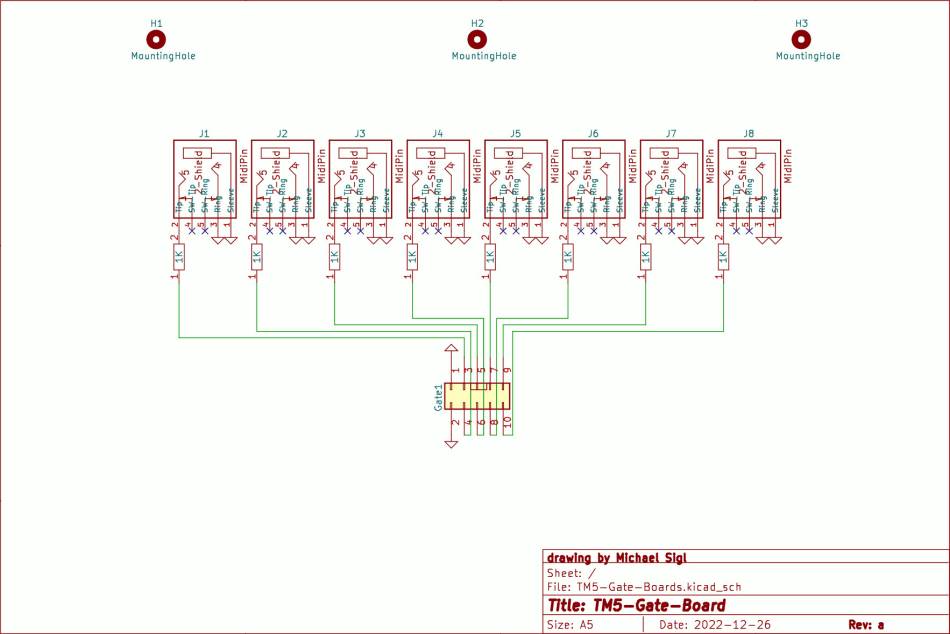

Shematic
Building and BOM
Handsolder…
BOM
qty | reference | value | footprint | MouserPartNr |
---|---|---|---|---|
1 | Gate1 | Header-2×5-Micromatch | Header-2×5-Micromatch | 571-1-2178710-0 |
3 | H1, H2, H3 | Montageblock | Mounting-Hole-M3-for-FPanel-with-Block | none |
8 | J1-J8 | 3.5Jack for Gates | 3-5JACK-CUI_SJ1-3535NG | 490-SJ1-3535NG |
8 | R1-R8 | 1K | R-1K-0805-250mW | 667-ERJ-P06J102V |
I dont have to forget to order a ton off “Montageblock”…
To Do
waiting for Prototype PCB
Community users working on it
- Phatline = PCB & Shematic, UI-Programming, Documentation…
Just let a Private message on the forum to user already involved.
or join the forum: Triggermatrix 5
