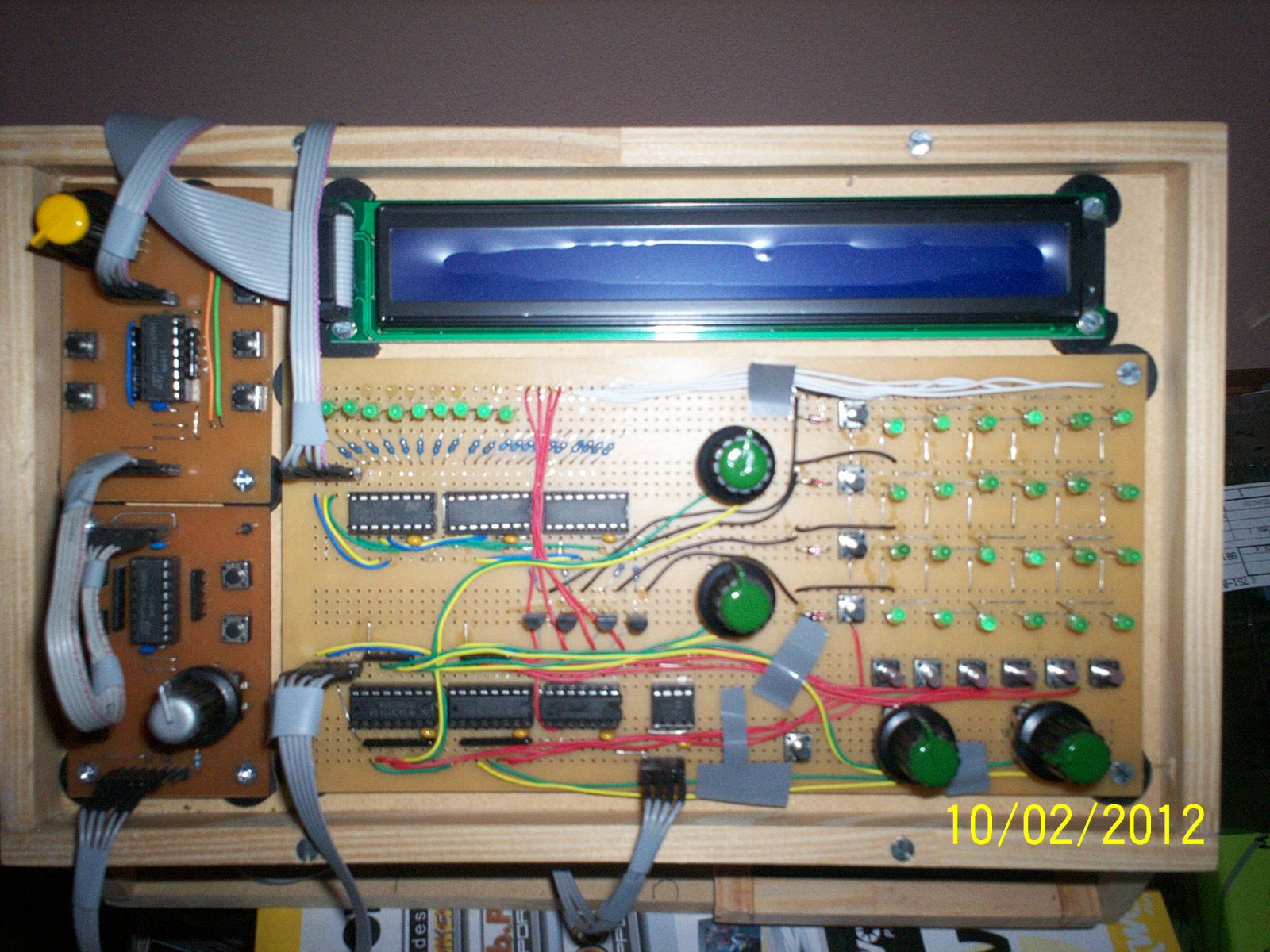

Here i built a CS for the FM synth using a experimental board for the matrix and three 74HC595 and two 74HC165 and at the left two small PCB hand made with one 74HC165 each for the menu control
I add as well a 74HC07 and 4 BC548 in order to handle sinking currents. I also place a banckstick 24LC512 in the middle bottom of the experimental board
