SIDFB Board Front

November 27, 2012
1,182 views
View Sauraen's images

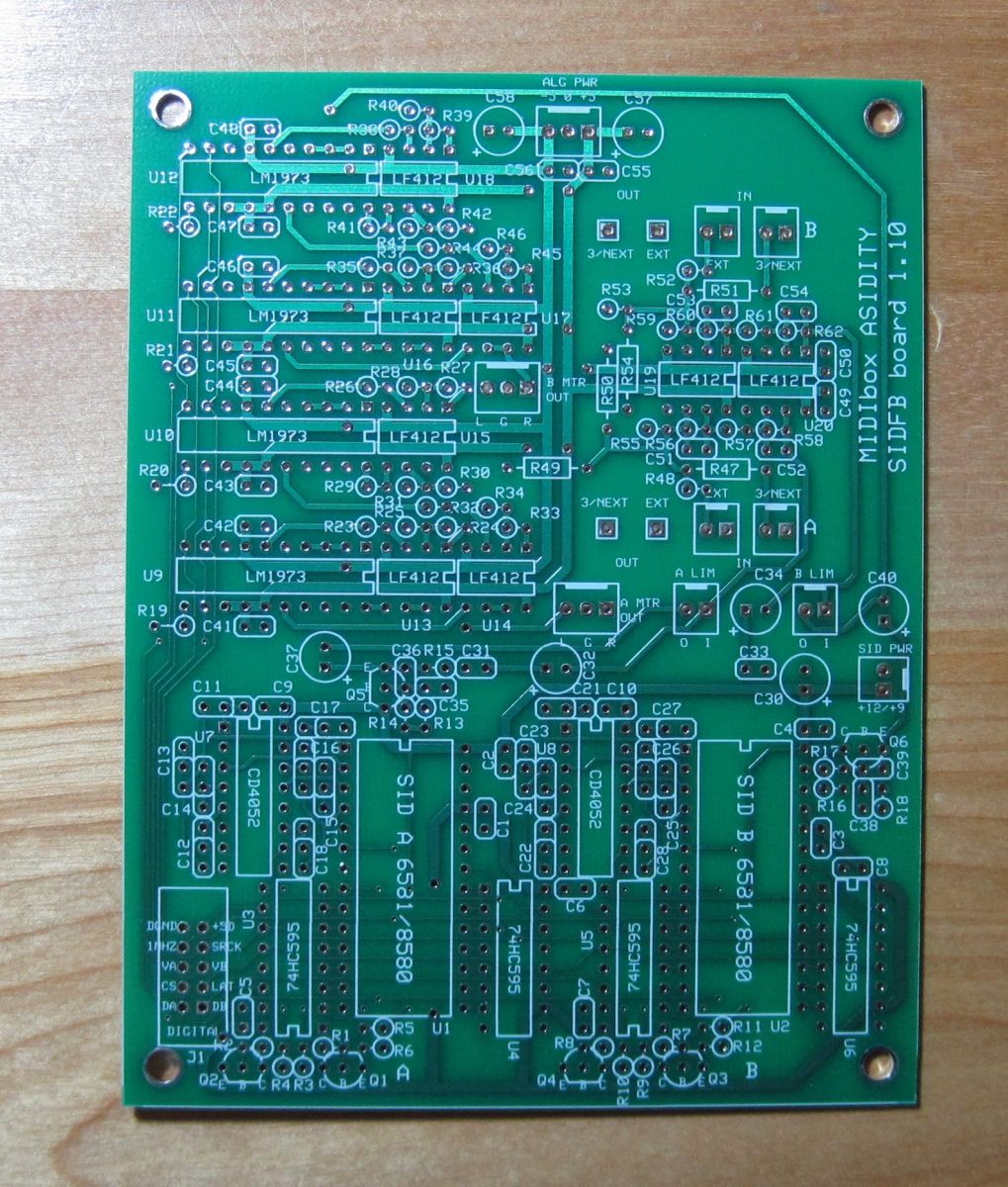

The circuit boards came in the mail today from ExpressPCB! Four custom MBHP_SIDFB module boards, each containing containing two SIDs, six channels of digitally controlled feedback and audio outputs per SID, and a CD4052-based circuit to switch between four pairs of filter capacitors.
