Main Board

johnmx

By johnmx

 Share

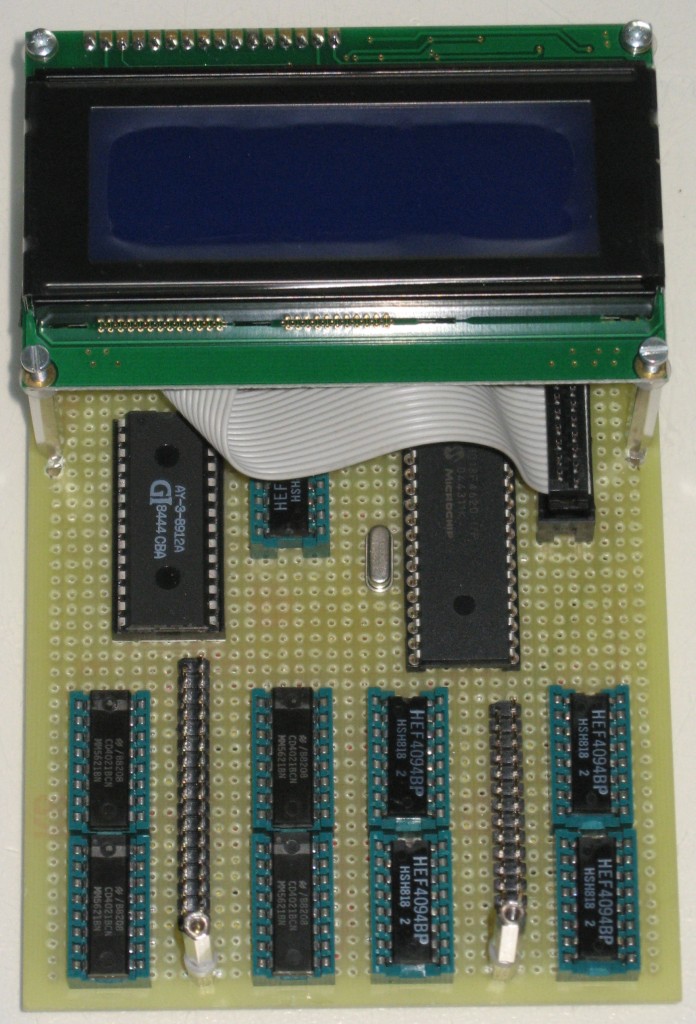

The main board includes the CORE, DIN, DOUT & AY. Here we can see the pin headers to connect the buttons and LEDs.

Copyright

© JP Electronics
From the album:

johnmx - MIDIbox AY (YM) V2

  • 8 images
  • 0 comments
  • 4 image comments
