MIDIbox FM V2.0 Prototype: FM Widget
By Sauraen
- 1,371 views
- View Sauraen's images

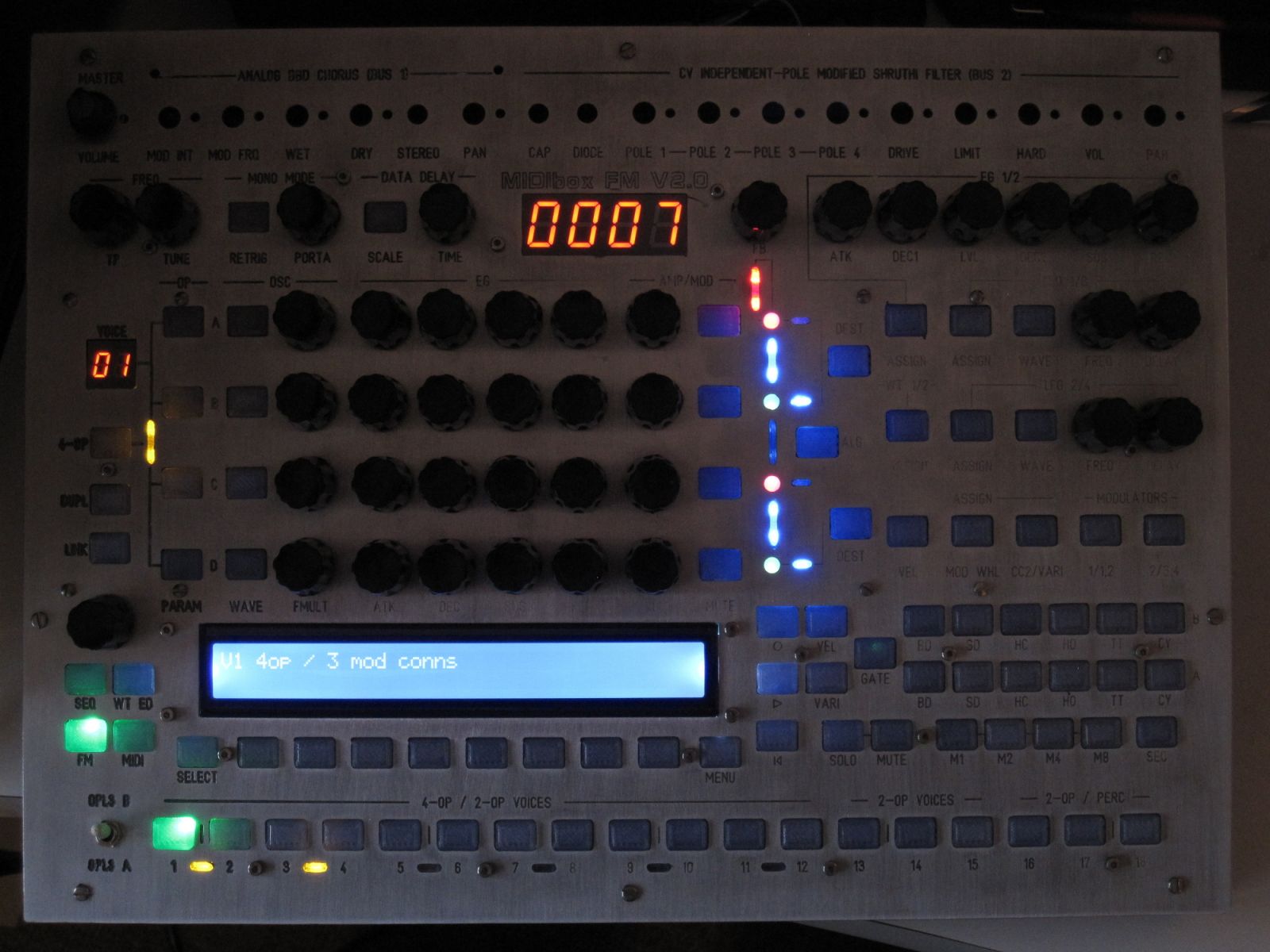

The widget shows the signal path for the FM synthesis. The colors are more visible in person: red is modulator, green is carrier, blue is signal path, red on top is feedback.
Photo Information
- Taken with Canon Canon PowerShot SD1200 IS
- Focal Length 9.7 mm
- Exposure Time 1/20
- f Aperture f/3.5
- ISO Speed 400
