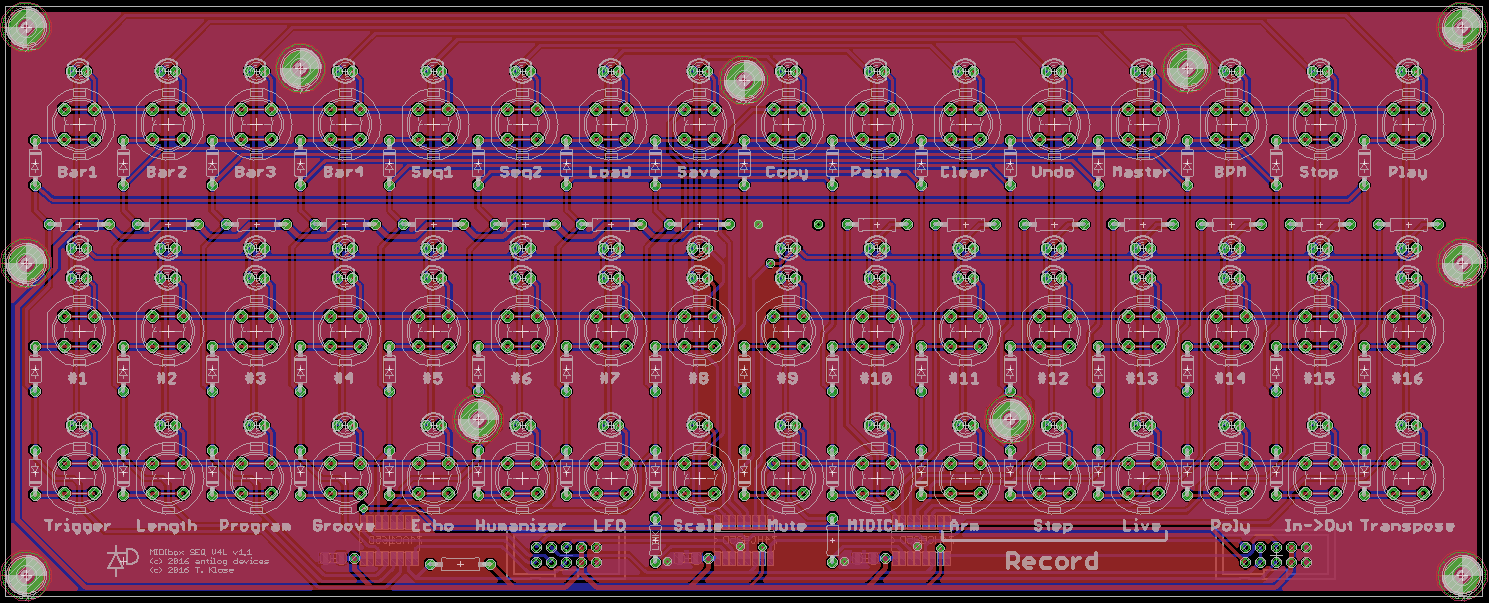

Re-work of the V4L concept


Copyright

© 2016 latigid on

From the category:

Schematics and PCBs

· 187 images
  • 187 images
  • 52 image comments


Recommended Comments

latigid on

Posted

I can try, what's your preference? Anything but TL1100, they go dodgy after a few years.

See here also:



Altitude

Posted

The 6mm ones are fine, same as the orginal except with the correct footprint. Lots of options there

latigid on

Posted

6mm ones with pin spacing of 6.5/4.5mm?

Not sure if the fab will like the overlapping drill hits...

D6_6mm.thumb.PNG.4d6b91ee7a3161e63474ebb



Do you have an example layout or know of a board house that will do them?

Altitude

Posted (edited)

You know, dont even bother.. Those look like C&K D6R90 which are a buck each anyway

Edited by Altitude
latigid on

Posted (edited)

Sadly no difference as the D6 pads are on square. I've got something workable just moving the other switch up 1.5 1.6mm, should be fine!

Edited by latigid on
Altitude

Posted

like I said, dont bother.  Those switches are a good choice and there really isnt anything to be gained here with multiple footprints.  Looks at smashes SEQV4 CS board for a perfect example of multiple footprints for one switch

latigid on

Posted (edited)

It works with some creative pad arranging!

D6_6mm_2.thumb.PNG.e0791d8f31bd9e78091ea



But I agree, the D6 buttons are pretty good (I gave a few reasons in the V4L thread). In saying that they are quite tall (better for raised front panels though) and do have a bit of slop when pressed, so another option's not a bad thing.



Edited by latigid on
