First draft DIN/DOUT PCB


nebula
 Share

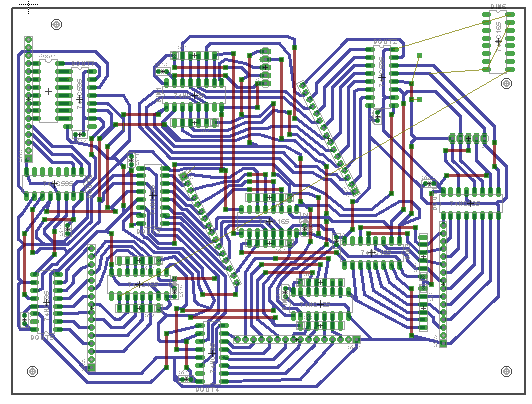

The DIN/DOUT was to be connected to this PCB, "sammich" style, using SIP headers. This board was also designed for home etching. I quickly came to realize that this was going to require a ridiculous amount of drilling, and too many wires on top of my single-sided board.

(Red = top wires, blue = bottom traces)
