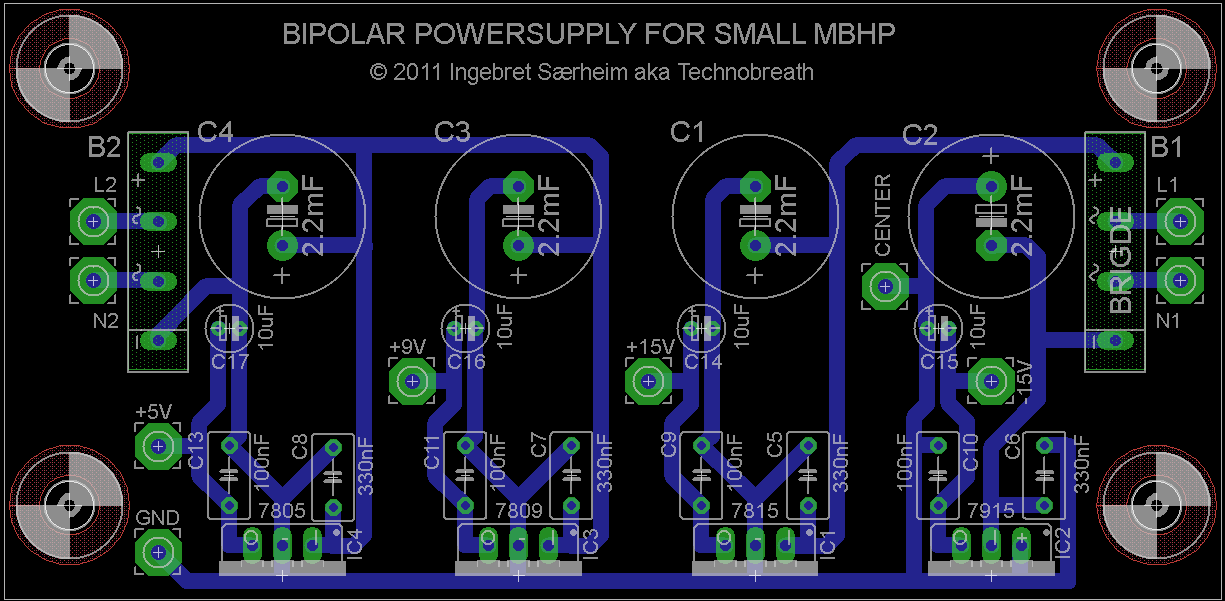

Well. Another PCB design of the PSU for the StereoSID. I thought I was done with the last one, but critic voices told otherwise
. So Here it is, hopefully the final version. More compact, looks tidier, negative vreg on the far right instead of in the middle. etc etc. Please tell me what u think of it .
- Massive amounts of thanks goes to SmashTV & Co for all the nice tips on psu design. Not that I claim it's good enough for them to put their name on it hehe, but they have been nice enough to look at my crazy ideas Thanks
Thanks
Looks good. Just make sure you don't connect all the IC to one big heatsink. The metal backside of the 7915 is not GND.
Thanks.
/me knows. Thanks for watching out for me though . I use clips to attach the cases to the heatsink, and also isolation rubber.
I just started soldering the board today with the components I got laying around, the bridges, the small caps, and the vregs 9 and 5v. The rest is probably delivered today, but it's too late to do something now.
Oh, I tried a solder through spray on mask - lets see how that works out...
/me knows
. Thanks for watching out for me though . I use clips to attach the cases to the heatsink, and also isolation rubber.I just started soldering the board today with the components I got laying around, the bridges, the small caps, and the vregs 9 and 5v. The rest is probably delivered today, but it's too late to do something now.
Oh, I tried a solder through spray on mask - lets see how that works out..
.Ah, i have a can of that here. A green mask. But haven't tried it yet.
One board scrapped, new one made. I wasn't quite satisfied with the way the soldermask turned out. . Pics to follow.
. Pics to follow.
