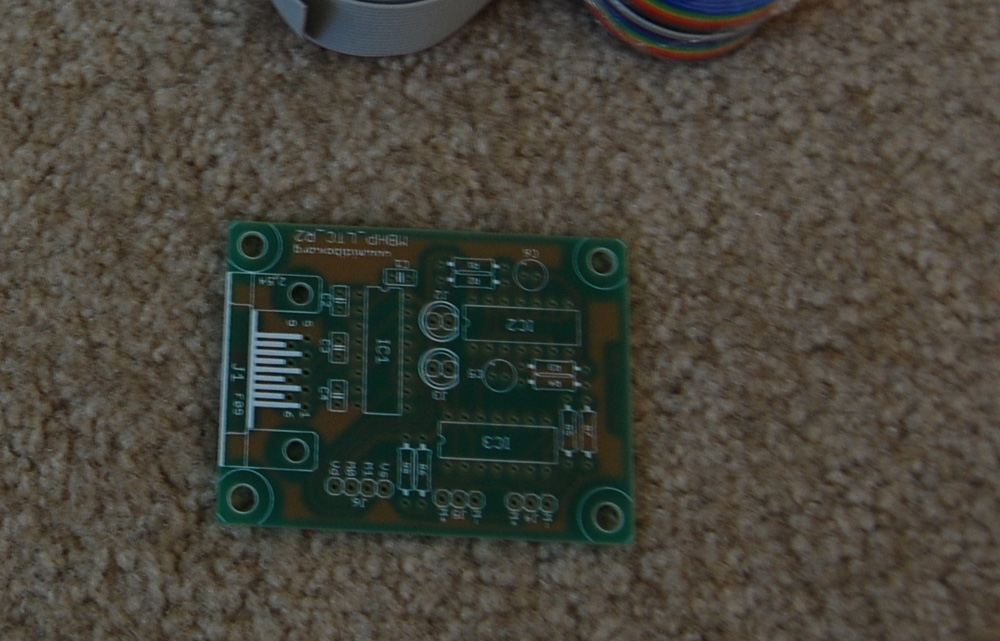

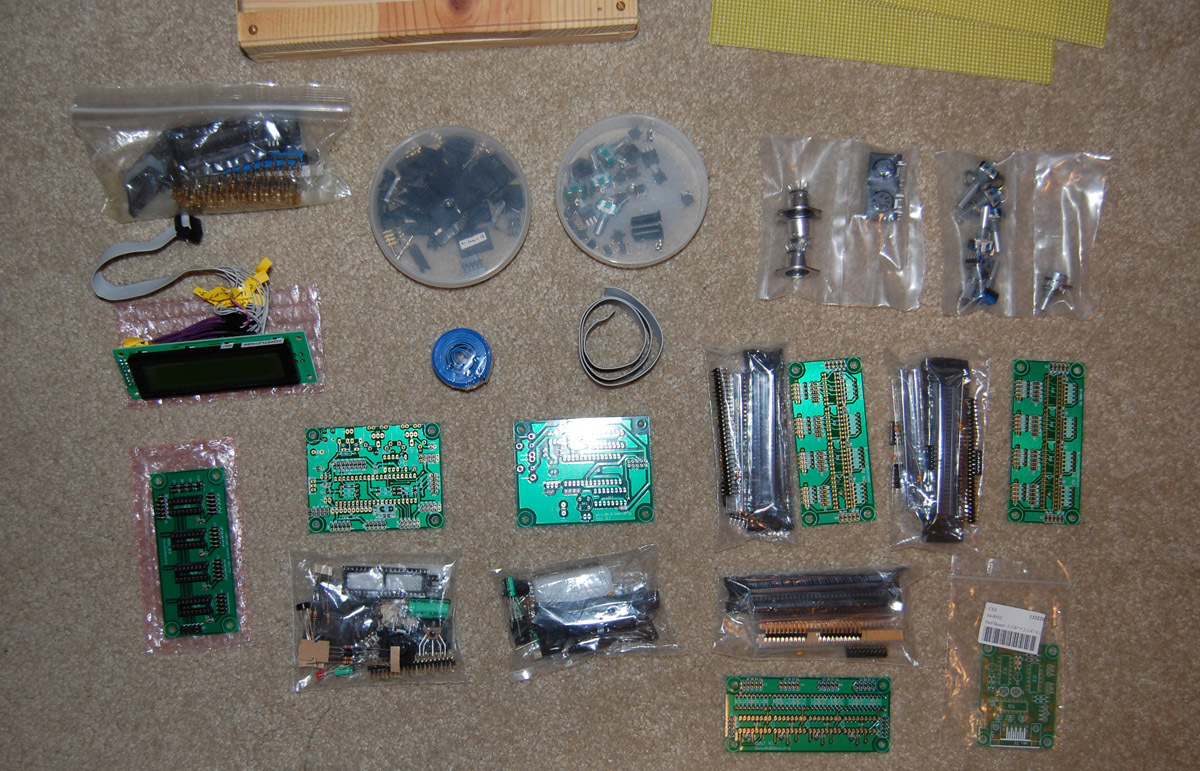

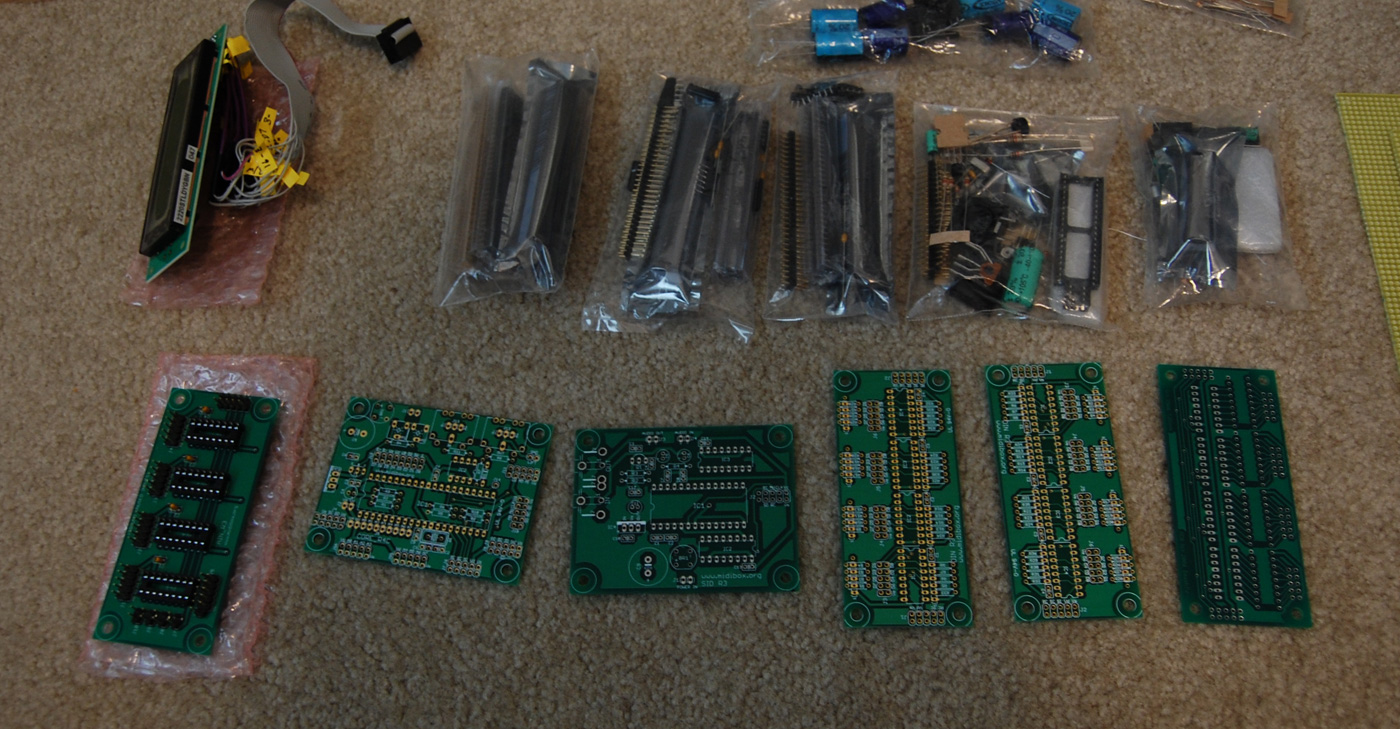

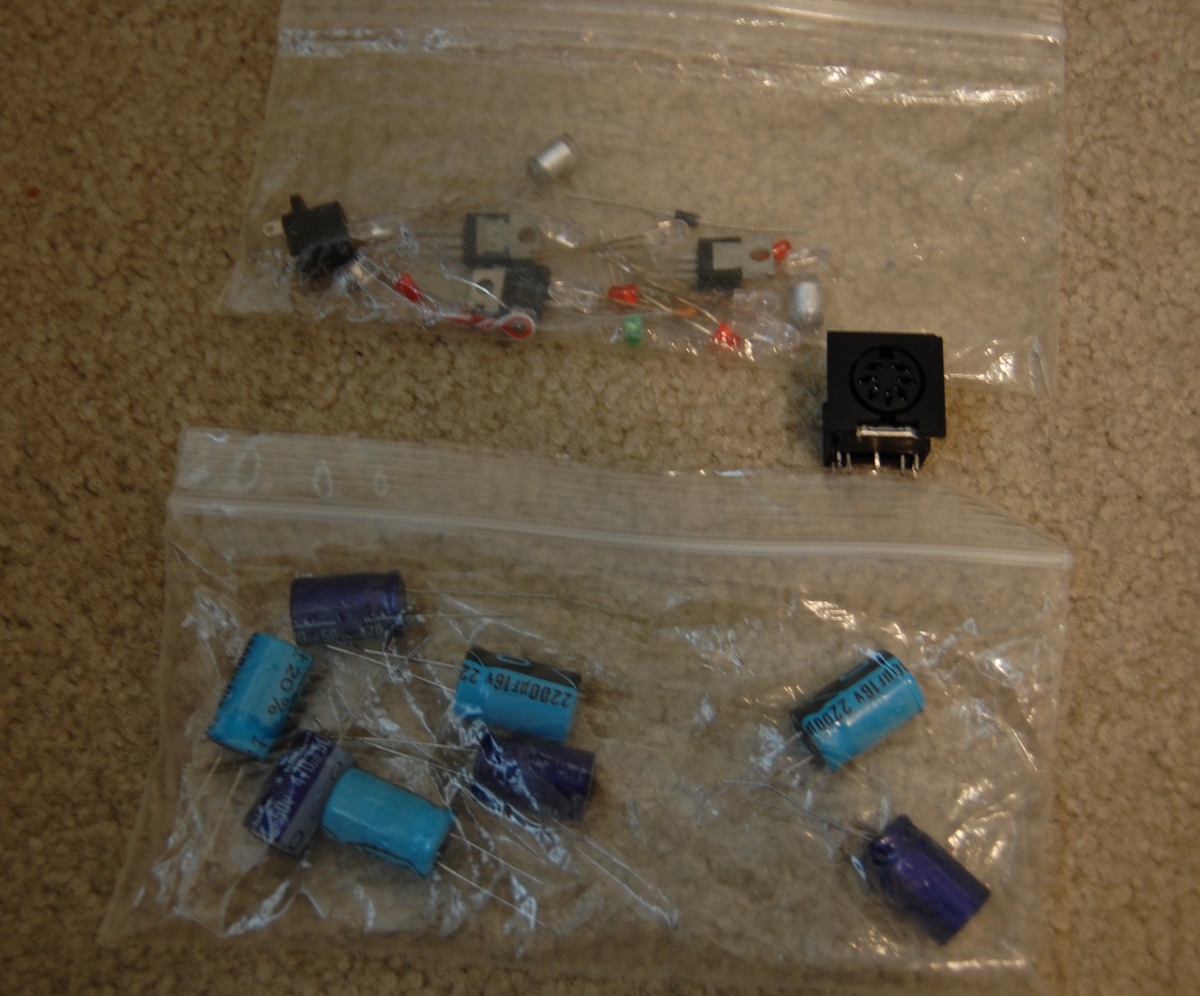

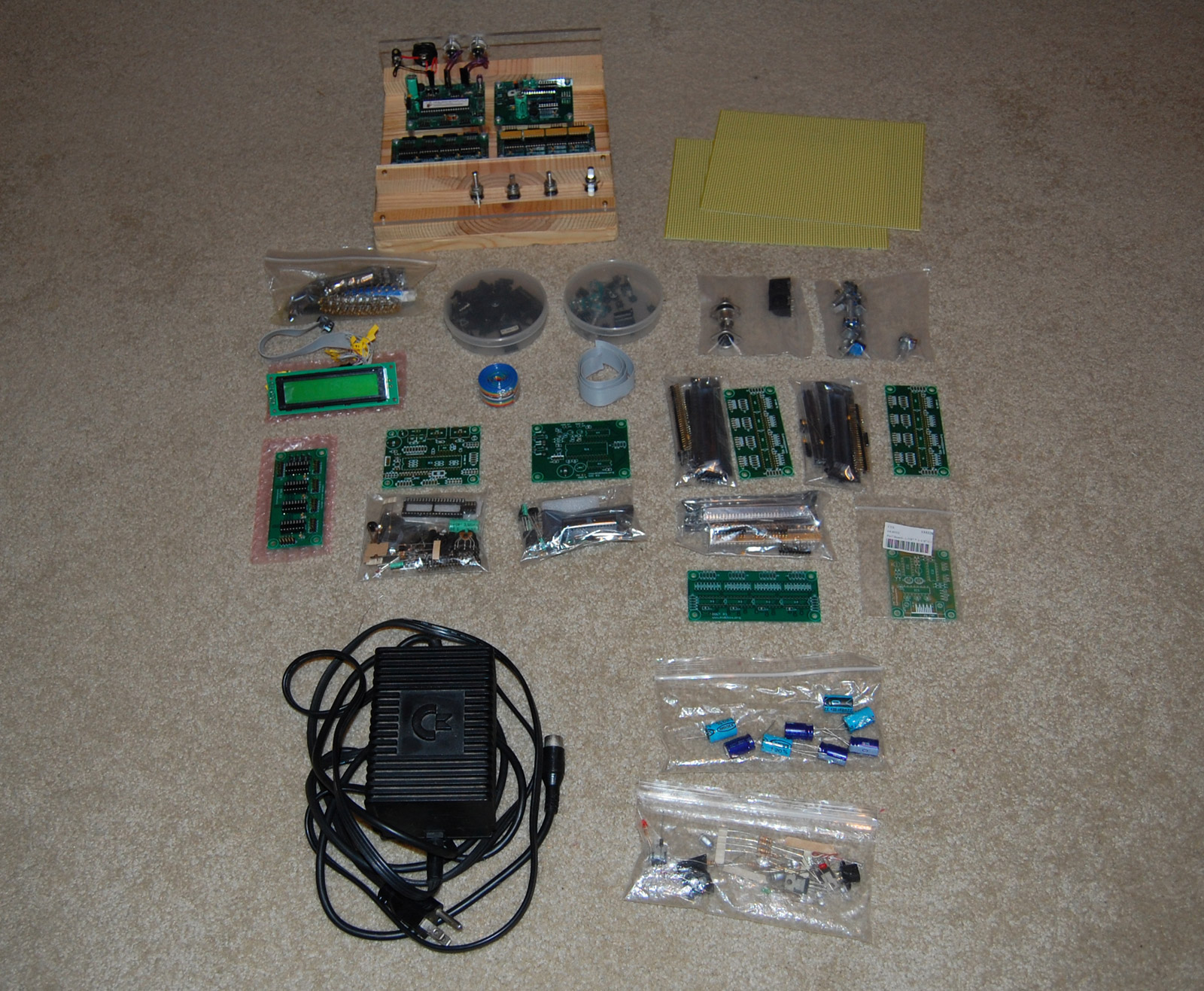

  1. I have a bunch of MIDIbox boards and parts that I purchased around 2006. All parts were bought from SmashTV. I had bought enough to make 2 SID engines with an elaborate MIDI controller interface. I also built a custom wood/plexiglass PCB mount which is included along with a bunch of schematic printouts Below are images of everything. $60 for everything plus shipping based on your location. I can give you my ebay name and business website for reference. Included Parts: Soldered: CoreR4C (Bootstrap V1_2) SID R3 (no SID chip) DIN R3 DOUT R3 AIN R3 Unsoldered: CoreR4C (no chip) SID R3 (no chip) (2) DIN R3 DOUT R3 Other: MBHP LTC R2 LCD V002210 rev C Bootstrap v1_1b(may not work) (2) small memory chips Parts: (5) MIDI jacks (3 panel-mount, 2 surface-mount) (10) encoders (1) pot (16) small buttons (4) toggle switches (1) knob cap ribbon cable (LCD size) header pins (male and female) (20+) black cable connectors Commodore Parts: (1) original C64 power supply with separate connector pulled from original machine (4)2200uf 16V caps (4)470uf 50V caps assorted components pulled from original C64 board Misc: (1) Wooden/Plastic assembled mount for testing boards (includes MIDI I/O, Power connector, switch, encoders) (2) Large PCB yellow blank sheets Partlist.pdf
  2. Sure, I can ship to Germany. I would ship Fedex. Contact me via email or PM if you're interested. I just found a big stack of schematics and instruction printouts I made when I originally got these parts. There's also specific info on the LCD and encoders in the papers. I'll include these with the MIDIbox parts.

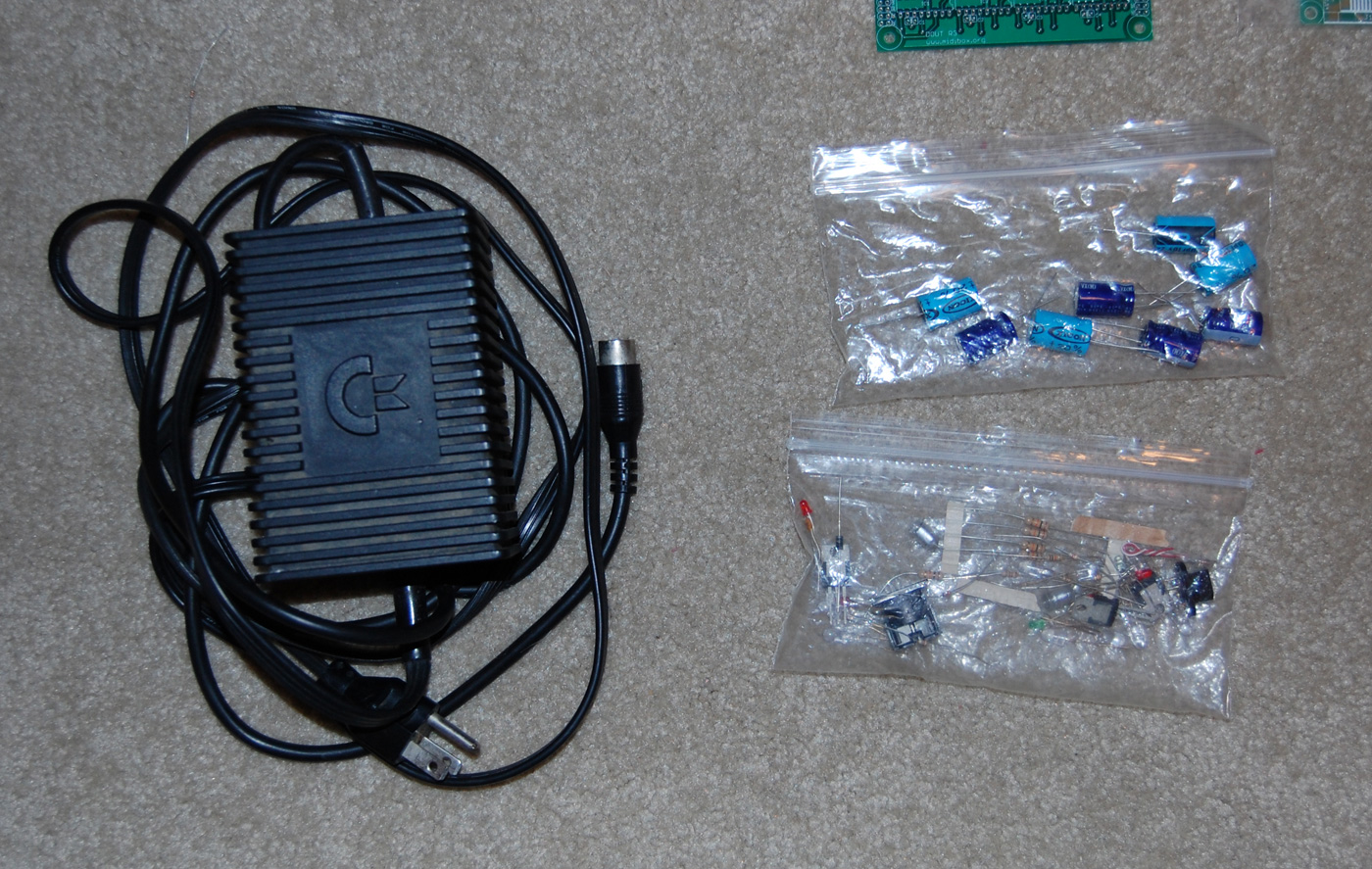

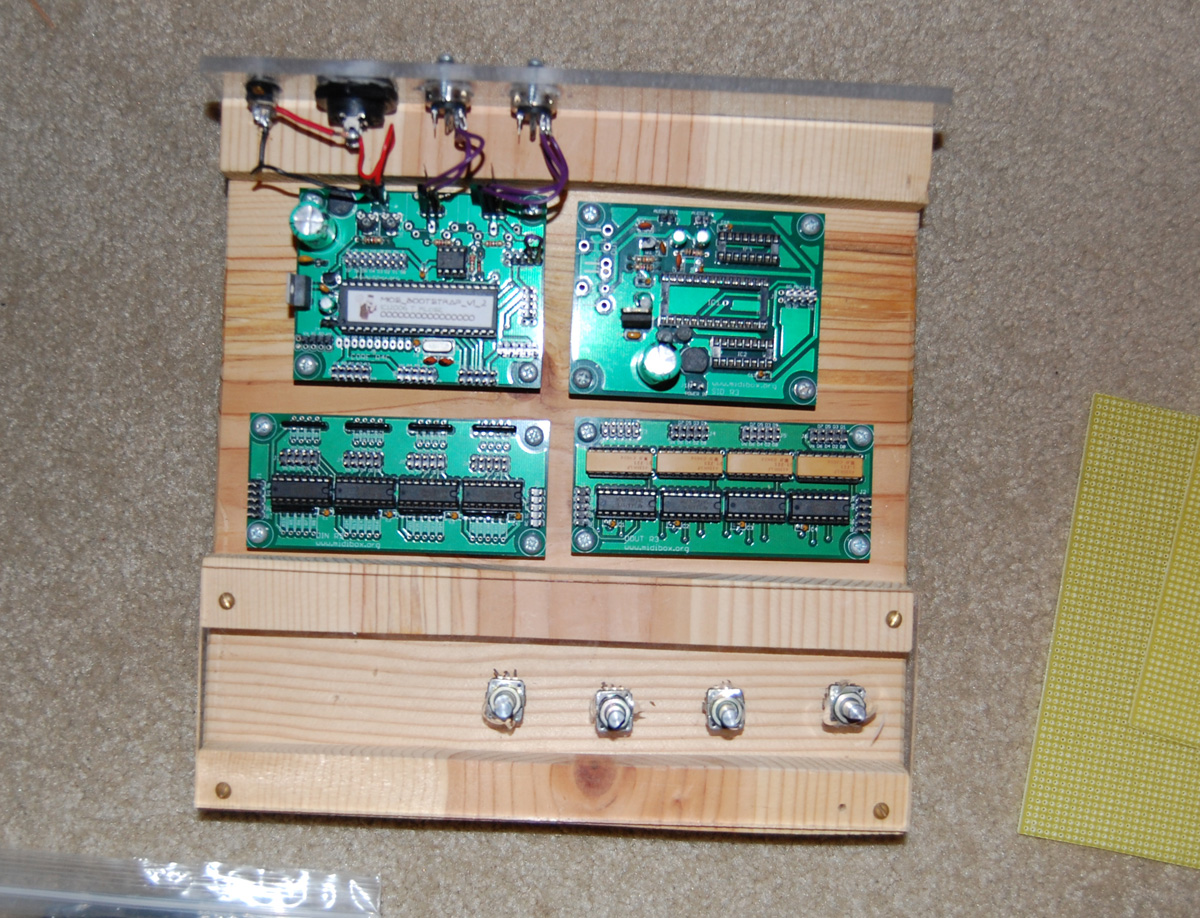

  3. I bought these parts a while back from SmashTV. Many of the kits are still sealed in the original bags. Unfortunately I don't have the time to invest in building a Midibox so I'm selling these. I'm hoping someone might be able to put to these to good use. A complete list of the parts is the last image below. When I bought these parts, I think it was enough to build two MIDIbox SID's with an extensive front panel interface. Also included in this is a wood and plexiglass mount I built. It's easier to take a look at the photo to see what it is. There's also some miscellaneous parts like an LCD, parts pulled from a C64 and it's original powersupply. I just took a look on AVIshowtech and calculated the midibox parts to come in at around $200 (not including the custom mount, additional components, and C64 powersupply). Since some aren't the latest rev, etc, I'm asking $125 for the midibox parts and mount + $15 shipping. For the powersupply, along with parts pulled from a C64 and a stash of capacitors, I'm asking $20 + $15 shipping. If you wanted both, I can combine the two with shipping and take a little off of the power supply. I'm located in Southern California about 2 hours east of LA. If interested, contact me and we can go from there.
×
×
