I'm having some trouble getting this to work with my MB SEQ v4L. I assume that there would be a different set of commands if I want to use a usb connection rather than connecting to my MB SEQ4L via the ethernet port, correct? If so, what would they look like?

hmmm... I'm not sure where I got CC# 32 from. Regardless, CC# 0 is bank select, then use a standard program change message to select the patch. In essence, any device that can send patch change messages will work, be it hardware, or software. Of course the other option is to add a minimal control surface because the default function of the menu knob is to change patches.

CC #0 is to select the bank, and CC #32 is to select the patch. (btw these are standard CC values for bank/patch changes)

You may need to double check your connections from the core to your control surface.

I use Miditrix to play notes while messing with the editor. It's really easy to use.

You could always use Ponoko for a front panel. It's extremely easy and pretty inexpensive too.

veroboard

Good luck! I had the same issue with sections of the MB SID I just finished. It took lots of careful bending and finagling to get things to fit. That panel looks great by the way.

Very nice work indeed!

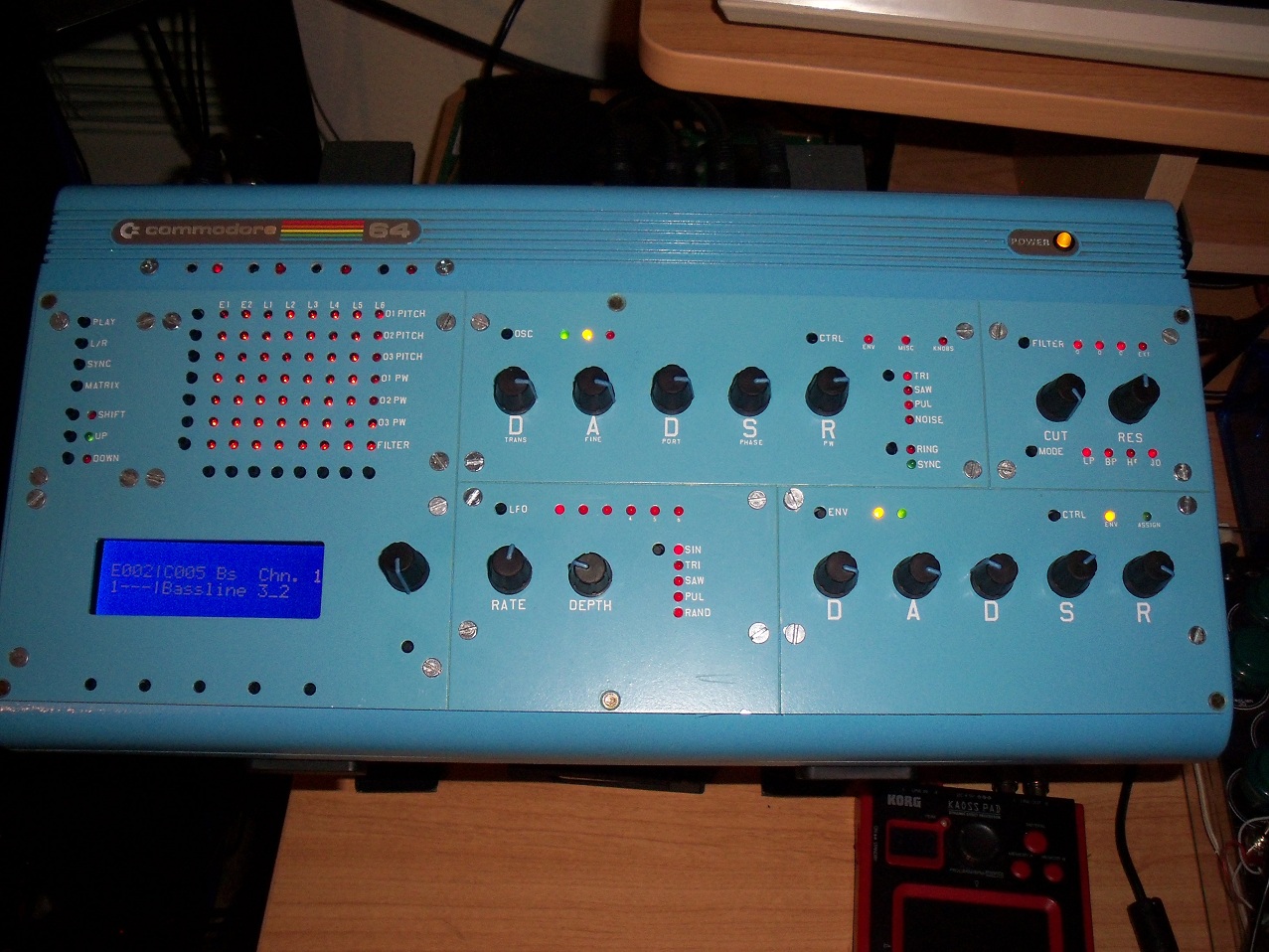

After a couple false starts, road blocks, and generally life getting in the way, I've finally finished the project that initially introduced me to the wonderful world of MIDIboxes. It's not my first completed midibox, just the first one I started working on. I've also completed a sammichSID and two MB SEQv4ls. I thought I'd share a photo of my newest MB SID. It's got a 6582 baseboard and a vserion 2 CS. Currently, I have 6 SIDs installed; 2 8580s and 4 6581s. I plan to add two swidSIDs as well. Special thanks goes to rvooh and Wilba for tips on the CS wiring. (Btw don't ask for me to show off the wiring, it's not pretty in there, but it works) :blush:

I completely forgot that I said I was going to add to this until I was browsing the forums at work today. Better late than never, I suppose. I added 22 more arps. Patches are labled "Arp 2" .. "Arp 128" The "Sound" column only describes the oscillator sound | Arp | Sound | Dir | Sort | Hold | Speed | GLen | Range | Sync | CAC | One | Easy | Comments +-----+---------------+-------+------+-------+------+-------+------+-----+-----+------+------+----------- | 002 | Simple Pulse | Up | * | - | 32 | 6 | 1 | * | o | o | * | | 003 | Simple Pulse | Down | * | - | 32 | 6 | 1 | * | o | o | * | | 004 | Simple Pulse | U&D | * | - | 32 | 6 | 1 | * | o | o | * | | 005 | Simple Pulse | Up | * | - | 32 | 6 | 3 | * | o | o | * | | 006 | Simple Pulse | Rnd | * | - | 32 | 6 | 3 | * | o | o | * | | 007 | 3OSC Detuned | Up | * | - | 32 | 6 | 3 | * | o | o | * | | 008 | 3OSC Detuned | Up | * | - | 32 | 16 | 3 | * | o | o | * | | 009 | 3OSC Detuned | Up | * | - | 32 | 32 | 3 | * | o | o | * | | 010 | 3OSC Synched | Up | * | - | 32 | 32 | 3 | * | o | o | * | | 011 | 3OSC Filtered | Up | * | - | 32 | 28 | 3 | * | o | o | * | | 012 | 3OSC Filtered | Up | * | - | 32 | 28 | 3 | * | o | o | * | CutOff sweeped via LFO1 | 013 | 3OSC Filtered | Up | * | - | 32 | 28 | 2 | * | o | o | * | ENV1 Depth modulated via WT1 | 014 | 3OSC Filtered | Up | * | - | 32 | WT2 | 2 | * | o | o | * | + GateLen modulated via WT2 | 015 | 3OSC HP Fil. | Up | * | - | 32 | WT2 | 2 | * | o | o | * | + GateLen modulated via WT2 | 014 | 3OSC Filtered | Up | * | - | 32 | WT2 | 2 | * | o | o | * | + GateLen modulated via WT2 | 015 | 3OSC HP Filt. | Up | * | - | 32 | WT2 | 2 | * | o | o | * | + GateLen modulated via WT2 | 016 | 3OSC Detuned | Up | * | - | 32 | 32 | 3 | * | * | o | * | play multiple keys! | 017 | 3OSC Det. Saws| Up | * | - | 32 | 32 | 3 | * | * | o | * | play multiple keys! | 018 | 3OSC Det. Saws| Down | * | - | 32 | 32 | 3 | * | * | o | * | play multiple keys! | 019 | 3OSC Det. Saws| Rnd | * | - | 32 | 32 | 3 | * | * | o | * | play multiple keys! | 020 | 3OSC Det. Saws| Rnd | * | - | 32 | 32 | 8 | * | * | o | * | play multiple keys! | 021 | 3OSC Det. Saws| Rnd | * | - | 16 | 32 | 8 | * | * | o | * | play multiple keys! | 022 | 3OSC Det. Saws| Rnd | * | - | 46 | 32 | 4 | * | * | o | * | play multiple keys! | 023 | 3OSC Saw/LoTri| Rnd | * | - | Mixed | 32 | 4 | * | * | o | * | play multiple keys! | 024 | 3OSC Saw/LoTri| Rnd | * | - | Mixed | 32 | 4 | * | * | o | * | play multiple keys! | 025 | 3OSC Saw/LoTri| Mixed | * | - | Mixed | 32 | Mixed | * | * | o | * | play multiple keys! | 026 | 3OSC Saw/LoTri| Mixed | * | - | Mixed | 32 | Mixed | * | Mix | o | * | play multiple keys! | 027 | 3OSC TriOnly | Mixed | * | - | Mixed | 32 | Mixed | * | Mix | o | * | play multiple keys! | 028 | PWM Bass1 Arp | Up | * | - | 32 | 16 | 2 | * | o | o | O | PWM Bass1 from default patches but with a 1 octave arp. | 029 | 3OSC Det. Saws| Mixed | o | - | 32 | 6 | Mixed | * | * | o | * | play multiple keys! | 030 | 3OSC Pulse/Tri| Down | o | - | 32 | 6 | Mixed | o | o | o | * | play multiple keys! | 031 | 3OSC Pulse/Saw| Up | o | - | 32 | 6 | Mixed | o | o | o | o | play multiple keys! | 032 | 3OSC Det. Saws|Up/Dwn2| o | - | 32 | Mixed| 3 | o | o | o | * | play multiple keys! | 033 | 3OSC Pulse/Saw| Mixed | o | - | 32 | 19 | Mixed | * | o | o | * | play multiple keys! | 034 | 3OSC Pulse/Saw| Up | o | - | 32 | Mixed| Mixed | * | * | o | * | play multiple keys! | 035 | 3OSC Pulse/Saw| Mixed | o | - | Mixed | 6 | Mixed | o | o | o | o | play multiple keys! | 036 | Pul/Saw/Tri | Mixed | o | - | Mixed | 6 | 3 | o | o | o | Mix | play multiple keys! | 037 | Tri Only | Down | o | - | 32 | 6 | 3 | o | o | o | O | play multiple keys! | 038 | 3OSC Pulse/Saw| Mixed | o | - | 32 | Mixed| Mixed | o | o | o | O | play multiple keys! | 039 | Det. Saw |Up/Dwn2| o | - | 32 | 25 | 3 | * | o | o | * | play multiple keys! | 040 | Det. Pulse |Up/Dwn2| * | - | 32 | 11 | 3 | * | o | o | * | play multiple keys! | 041 | Det. Pul/Tri | Up/Dwn| * | - | 16 | 12 | 3 | * | o | o | * | play multiple keys! | 042 | 2OSC Det. Saws| Up | * | - | 32 | Mixed| 3 | * | o | o | * | play multiple keys! | 043 | 2OSC Det. Puls| Up | * | - | 32 | Mixed| Mixed | * | o | o | * | play multiple keys! | 044 | 2OSC Det. Tri | Up | * | - | 32 | Mixed| Mixed | * | o | o | * | play multiple keys! | 045 | 2OSC Det. Saws| Up | * | - | 32 | Mixed| Mixed | * | o | o | * | play multiple keys! | 046 | 3OSC Tri/Puls | Up | * | - | 32 | 2 | 9 | * | o | o | * | play multiple keys! | 047 | 3OSC Tri/Puls | Up | * | - | 32 | 3 | 9 | * | o | o | * | play multiple keys! | 048 | 3OSC Tri/Puls | Down | * | - | 32 | 2 | 9 | * | o | o | * | play multiple keys! | 049 | 3OSC Tri/Puls | Down | * | - | 32 | 3 | 9 | * | o | o | * | play multiple keys! | 050 | 3OSC Pulse | Mixed | * | - | 32 | Mixed| Mixed | * | o | o | * | play multiple keys! 127_arps__050.zip

I'm not sure I follow. There's no folding required.

Haha, In that case people will just have to wait longer, since I made several adjustments/improvements from the version I just had made.

Sorry for such a long wait on this, but I've made my adjustments and attached my case design. *edit: my file had a few things screwed up. I'll repost it after I get home from work tonight.
