I have got two midibox BLM (button led matrix) PCB's left which I don't need anymore. Both PCB's are in excellent condition (unused and clean) ! I don't recall what I have paid for them, but I think 30 EUR each, shipped within Germany, is a fair price. If somebody outside Germany is interested, please ask me for a specific shipping quote for your country.

I have got one unused Midibox SEQ control surface PCB left which I don't need anymore. The PCB is totally clean and unused, please check out the pictures attached. So I am happy to let it go. I thought 30 EUR shipped within Germany is a fair price. If somebody outside Germany wants th PCB, I have to get a quote for shiping.

I did just use a knife in order to lift the paper. I didn't use any liquids during this process ....

very good Peter, I like it !

sold.

Hi Guys, I have got a complete sammichFM Kit sitting here, waiting to be built. Unfortunately I have got no time to get my hands on it. So it is up for sale now. I am asking 210 EUR (shipped within Germany), shipped elsewere in Europe 215 EUR's. The kit is new and complete, never touched ! Cheers orange

I have got some left :-)

Well, as you mention it. I didn't pay any attention to this detail :-). After the replacement of the green display, I haven't connected the SEQV4 to the PC. Maybe not a good idea... I will measure the heat generated by the voltage regulator at some point and check their specs again. Not sure where there limits in terms of current are ... Thanks for the hint, I didn't realize that they are so energetic :-) ..... and FAST !!

Yes, they were. I didn't pay $100 for them....

Yesterday I was so upset about the parameter jumps of my Bourns encoder in my MBSEQ V4 that I decided to replace them. Today I used my 808 in order to de-soldered them. Then I replaced them with the good old Alpha's. Man, those Bourns encoders suck..... Now with the Alpha encoders it is really fun to play with the MBSEQ. PS: I've got flat top LED's in my control surface. When I removed it, I couldn't re-assemble it. So I had to de-solder the LED's are well and had to replace them... I am done for today :-)

I can recommend the following Noritake VFD displays: http://de.mouser.com/ProductDetail/Noritake/CU40025-UW6J/?qs=LpQOCaTXNHji3bWMnGLoCw== They are extremely fast, good looking, but not cheap .... I put two of them in my MBSEQ V4, they are working great !

Today I installed two Noritake VFD Display's. I bought them cheap when I was in the US. They are great and really fast, but here in Europe they are soooo expensive ... http://de.mouser.com/ProductDetail/Noritake/CU40025-UW6J/?qs=LpQOCaTXNHji3bWMnGLoCw==

Hi, I can recommend the following cable: http://www.reichelt.de/Platinen-Steckverbinder/PS-25-8G-BR/index.html?;ACTION=3;LA=2;ARTICLE=32346;GROUPID=5216;SID=15UNjuWqwQAQ8AAH2rDD458ecd87cdfb539c0c5e96d06a7805539 It works very well and you can still separate both parts from each other:

Hi, I would be interested in two boards as well :phone: Cheers orange

Hi, I have just ordered one from Goldphoenixpcb.com and they charged 103 USD (incl. shipping within the US). I guess there are other alternatives in Europe... Cheers orange

yes, that should be fine. And yes, it is always good to check the orientation of the electrolytic capacitors as well as the diods and the network resistors.

oh, does she !?! :shocked: Always good to buy her a new pair of shoes or a nice hand bag, or whatever she is into. You will see that works great, no complaints anymore ... hehe

Thanks for the quick reply ! I just send my inquiry.

The following caps are the right ones, they measure 15,5 x 15,5 mm. I guess the 16x16mm in the WIKI are hand measured and not taken from the data sheet, isn't it ? http://www.conrad.de/ce/de/product/707023/Marquardt-Tastkappe-Serie-6425-826000011-Tastkappe-blank-Anthrazit-Passend-fuer-Serie-6425-ohne-LED

Hi Ilmenator, I wanted to order a PCB from goldphoenixpcb., but I am struggling with the fields to be entered in the order / quote form. Can you please review the fields entered ? I guess I have to enter the total size (335.15mm x 97.92mm) as given in the WIKI, right ? Thank you ! orange

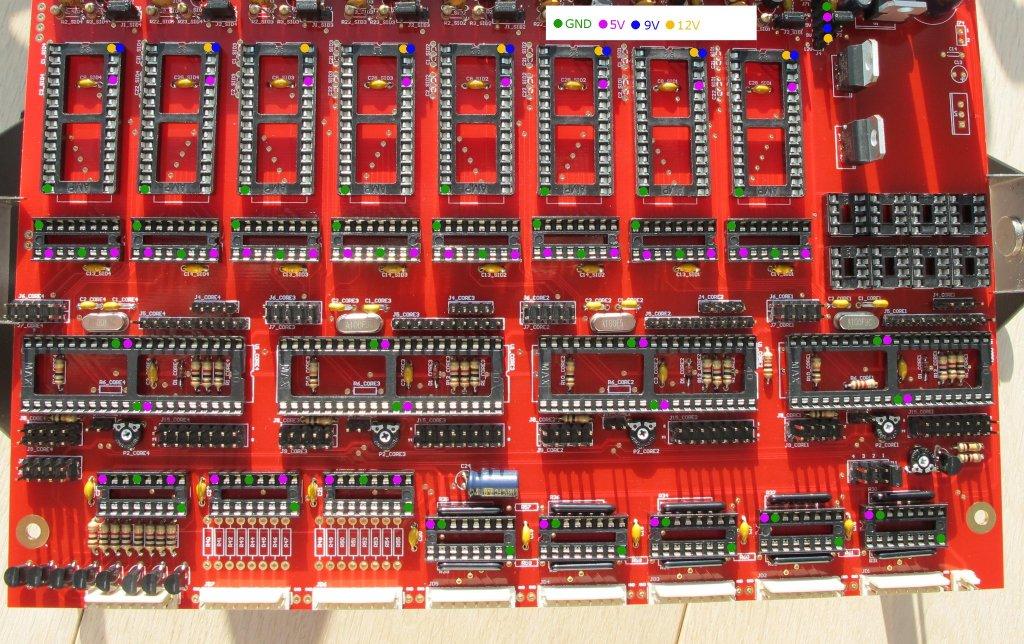

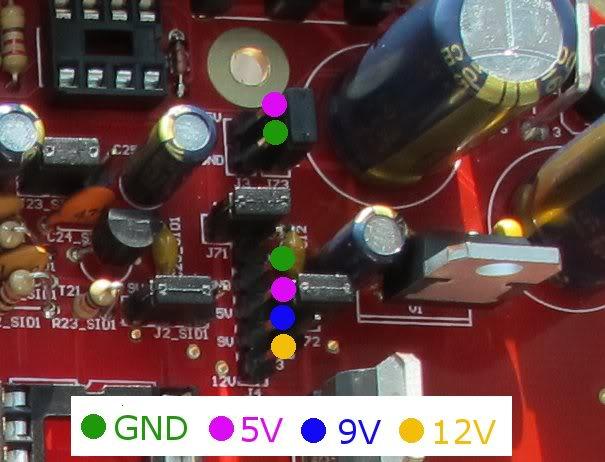

Check the voltage, should be according to the attached documents.... 9V and 12V always according to the current setting of your jumpers. You should carry on only if the voltages are correct....

That looks great, good work ! Freddy: Wait until the design is finished before you order your parts. Otherwise you have to sell your unwanted parts again :smile:

Hi Freddy, I can wait .....

Freddy, you can offer me what you've got, but I have to check out the pictures beforehand. I am aiming towards perfection, so if that combination is cheaper but looking ugly, then I am out :shifty:, otherwise I am in :rolleyes:

Hi Guys, I just figured that in the BOM there is no supplier mentioned for the switch caps. I found the following and I wonder which ones are the right ones ? Snap In: http://www.conrad.de/ce/de/product/707023/Marquardt-Tastkappe-Serie-6425-826000011-Tastkappe-blank-Anthrazit-Passend-fuer-Serie-6425-ohne-LED Plain: http://www.conrad.de/ce/de/product/704928/Marquardt-Tastkappe-Serie-6425-825000011-Tastkappe-blank-Anthrazit-Passend-fuer-Serie-6425-ohne-LED;jsessionid=EADC3CF4CBEE7AB7C23D9C7497B310C1.ASTPCEN10 I am just wondering if both will work and which of those are recommended ... Thanks ! orange
