MIDIbox of the Week (MIDIbox SID made by Kevin)

MIDIbox of the Week (MIDIbox SID made by Kevin) Rate Topic:

#1 TK.

MIDIbox Guru

Group: Administrators
Posts: 11,134
Joined: 01-January 01
LocationGermany

Posted 28 May 2008 - 22:44

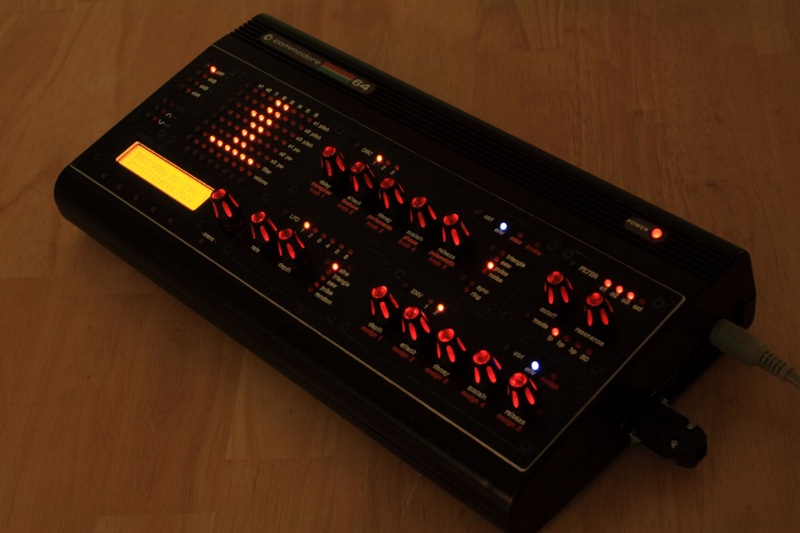

This beautiful MIDIbox SID V2 has been built by Kevin aka. Subatomic
Don't miss his construction blog: http://www.subatomicglue.com/sidl0g/ :)

Posted Image

#2 stevenclements

MIDIbox Newbie

Group: Members
Posts: 46
Joined: 13-February 06
LocationEdmonton Alberta Canada

Posted 29 May 2008 - 00:18

Beautiful... I'll take it~!!! :D

#3 Wilba

MIDIbox Hero

Group: Administrators
Posts: 3,284
Joined: 27-August 03
LocationMelbourne, Australia

Posted 29 May 2008 - 01:09

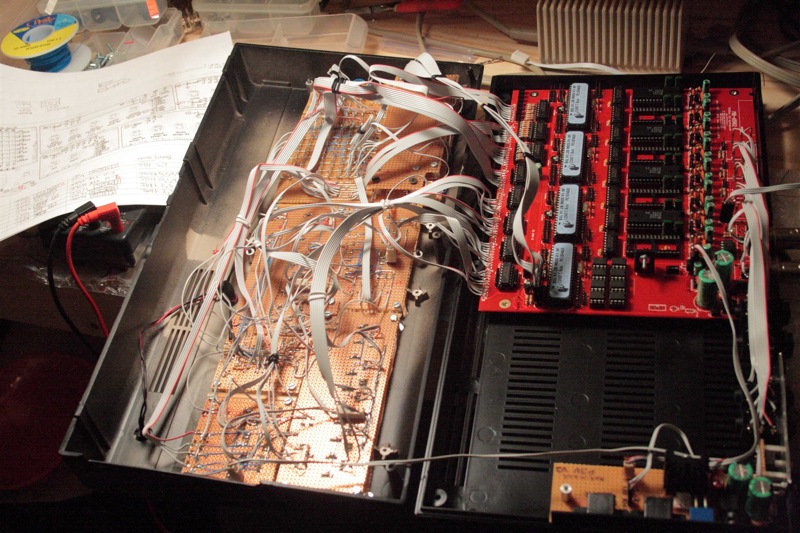

It looks fantastic. It's got that old-school vibe to it, like it's a tribute to TK's original MB-SID case, but with the V2 mods to the CS and in sexy red and black. It's good to see someone build their own CS the hard way with veroboard and lots of wire, totally original and incredibly cool.

You've earned supreme respect from me for wiring up a control surface to match the default MB-6582 switch/LED matrix! That wiring was hard enough to do with "virtual" wires on a PCB - doing it with real wires must have taken a lot of patience and careful planning. In case people were wondering, that is a prototype of the new MB-6582 base PCBs about to go into full production.

#4 subatomic

MIDIbox Newbie

Group: Members
Posts: 53
Joined: 04-December 05
LocationSan Francisco, California

Posted 29 May 2008 - 01:31

hey guys, thanks for the kind words! this project was very fun, and now that it's done, damn, i can really see firsthand how cool the mbsid is in sound and function (awesome work TK)! thanks to everyone who has helped me along that way, and TK rules for conceiving of the mbSID, and wilba for simplifying the design into the mb6582, awesome!...

Quote

That wiring was hard enough to do with "virtual" wires on a PCB
- doing it with real wires must have taken a lot of patience and careful planning.

Here's my "careful planning" for the wiring:
http://www.subatomic...0g/IMG_3595.JPG
My first thought was to pass through all busses (JD8/JD7/JD6/JD5) to each CS module, but I found that only a few wires from each bus was actually needed for most of the cs modules, so it helped to simplify and plan out, especially since I didn't quite have room on a couple of the modules for so many pins. regardless, planning this out ahead of time on paper proved to be a great reference when i actually did the work! I was able to plan the above diagram using Wilba's DIN and DOUT wiring diagrams and thus it matches Wilba's firmware almost verbatim, I only had to change a couple lines in the .asm and recompile for the PgUp/PgDown buttons.

#5 Pascal

MIDIbox Tweaker

Group: Members
Posts: 266
Joined: 16-January 08
LocationDüsseldorf

Posted 29 May 2008 - 05:27

Congratulation! It was a great Build! And the Colorshema is pefect!! :)

#6 sineSurfer

MIDIbox Tweaker

Group: Programmer
Posts: 284
Joined: 04-September 07
LocationMexico City

Posted 29 May 2008 - 06:11

yeah Kevin, it looks great and is good to see your box finished ;)...now show the heart breaker pictures, you know you want to heehee

#7 nILS

MIDIbox Hero

Group: Administrators
Posts: 3,986
Joined: 22-July 03
LocationStuttgart, Doucheland

Posted 29 May 2008 - 07:50

Congrats, subatomic! Nice build, I just love the orangish LCD, reminds me off my XP-30 ;D

#8 seppoman

Shnizzzle

Group: Frequent Writer
Posts: 1,065
Joined: 13-December 03
LocationDuesseldorf, Germany

Posted 29 May 2008 - 08:29

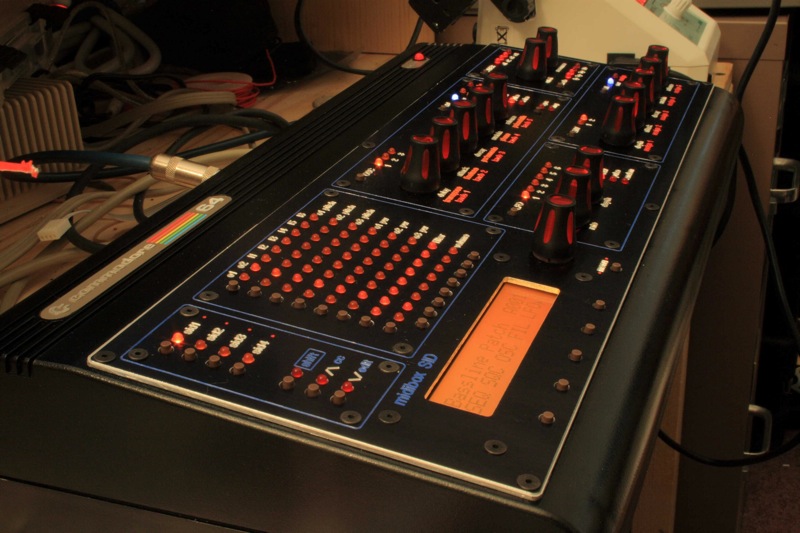

Fantastic box, I love it :) also the blue lines on the panel go together very well with all the red lights. Where did you get the panel made?

S

#9 subatomic

MIDIbox Newbie

Group: Members
Posts: 53
Joined: 04-December 05
LocationSan Francisco, California

Posted 29 May 2008 - 09:26

Quote

Where did you get the panel made?

hey seppoman, I have this awesome friend with a CNC, he made 2 copies, one for me and one for him. hopefully someday, my box will have a twin. :-)
I designed the color scheme using photoshop with art pulled from google, screengrabs from frontpanel designer, photos of the albs.de knobs, crystalfontz images, and other clipart i pulled from various places. i tried about 20 different colorschemes before settling on this mockup. Previsualization is very useful! :)

#10 stryd_one

MIDIbox Guru

Group: Frequent Writer
Posts: 8,850
Joined: 25-February 03
LocationMelbourne, Victoria, Australia

Posted 29 May 2008 - 10:05

Quote

This beautiful MIDIbox SID V2

Yep!!

#11 Goblinz

MIDIbox Guru

Group: Members
Posts: 1,022
Joined: 30-May 07
LocationYorkshire, UK

Posted 29 May 2008 - 20:32

Looks good. Took me a whie to realise it wasa c64 case. The underlit knos work well, I'm doing the same so will find your blog useful!

G

#12 stryd_one

MIDIbox Guru

Group: Frequent Writer
Posts: 8,850
Joined: 25-February 03
LocationMelbourne, Victoria, Australia

Posted 30 May 2008 - 10:39

Quote

Took me a whie to realise it wasa c64 case.

They always scrub up nicely with a good re-paint huh!

#13 Sasha

MIDIbox Guru

Group: Members
Posts: 1,941
Joined: 20-March 05
LocationBelgrade, Serbia

Posted 30 May 2008 - 13:42

Hey Sub, this looking great! Where are those DIN jacks with metal ring coming from.

#14 swindus

MIDIbox Newbie

Group: Members
Posts: 70
Joined: 30-January 08

Posted 30 May 2008 - 13:51

Very nice! Congrats!

#15 reboot

MIDIbox Tweaker

Group: Members
Posts: 272
Joined: 29-February 04
Locationfrance

Posted 30 May 2008 - 15:32

hard work and very nice!! :)

#16 subatomic

MIDIbox Newbie

Group: Members
Posts: 53
Joined: 04-December 05
LocationSan Francisco, California

Posted 30 May 2008 - 18:08

Quote

Hey Sub, this looking great! Where are those DIN jacks with metal ring coming from.

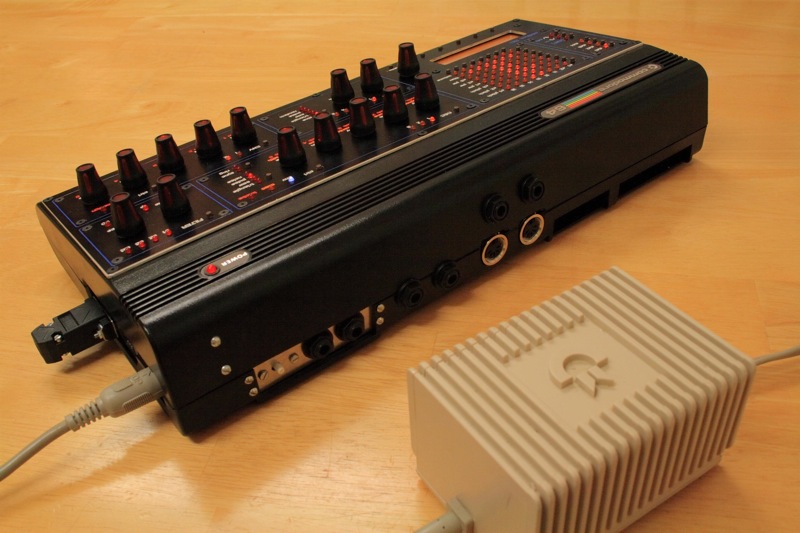

I'm using this MIDI jack in the mbSID: Digikey CP-1235-ND (CUI SD-50LS).
It fit perfectly into the c64's 2 port holes on the back (i.e. no cutting the c64 case!!)

Here's the one I used on the 9090, it's somewhat similar: Mouser 164-2522 (Deltron 651-0500)
