FS 6582 panel .fr

[reboot]

hello

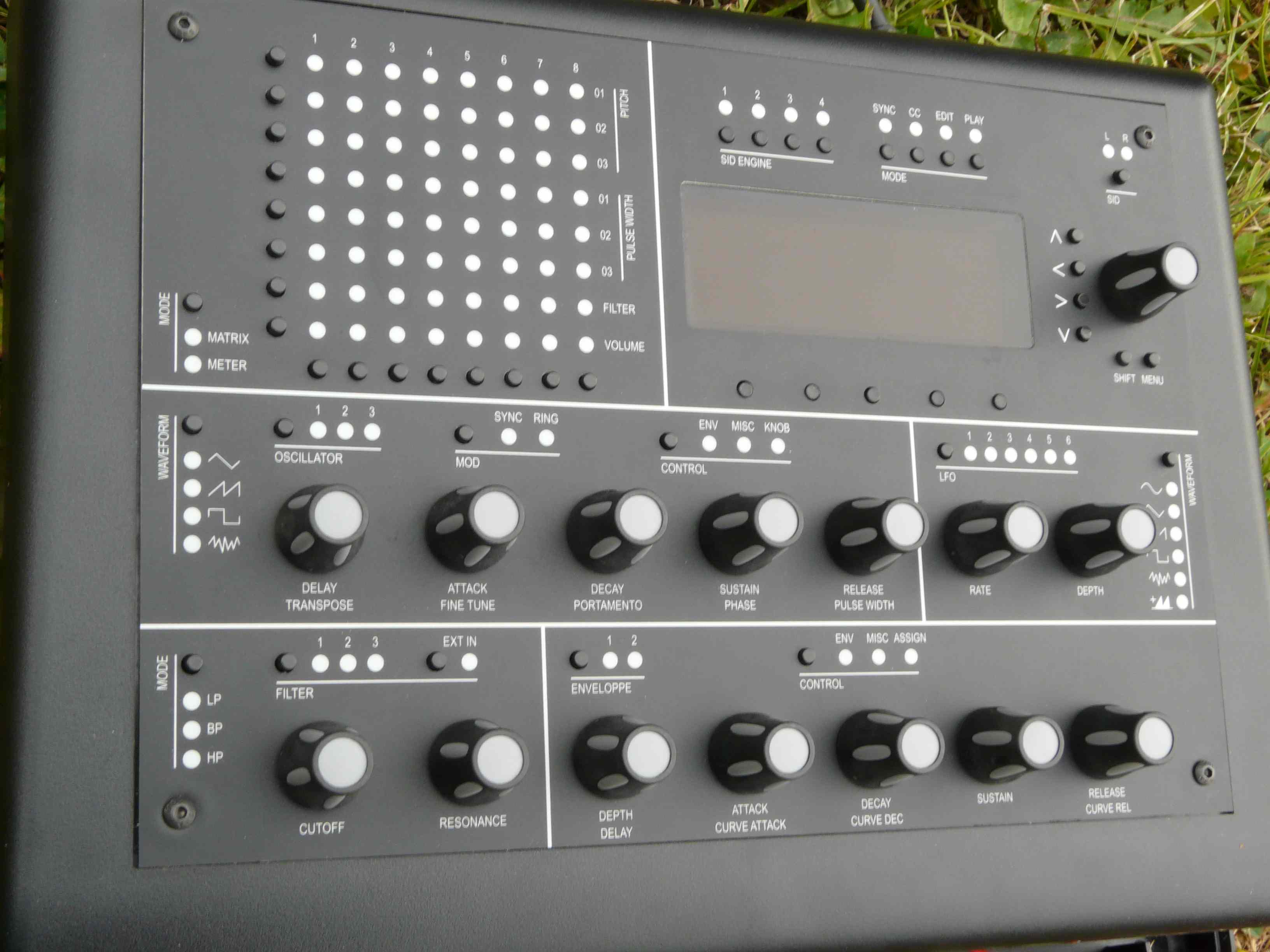

i made some 6582 panels for me and friends so there's some spares

50e +shipping with 1,5mm aluminium laser cut , front and back

thank you

Edited August 20, 2010 by reboot

[julienvoirin]

mets m'en un de coté selim

j'vais recevoir une CS PCB d'ici qlq jours

des news de mon panneau de M1000 controller ?

++

[Spazi]

Hey mate, You still selling one of these?

[gtxdude]

if you are, i'll take one!

[Rave-TZ]

Me too. Any more?

[reboot]

hello

if at least 10 persons need this panel i can order some more ...

let me know .

i'll post new pics soon

reboot

Edited October 24, 2010 by reboot

[Kickflip]

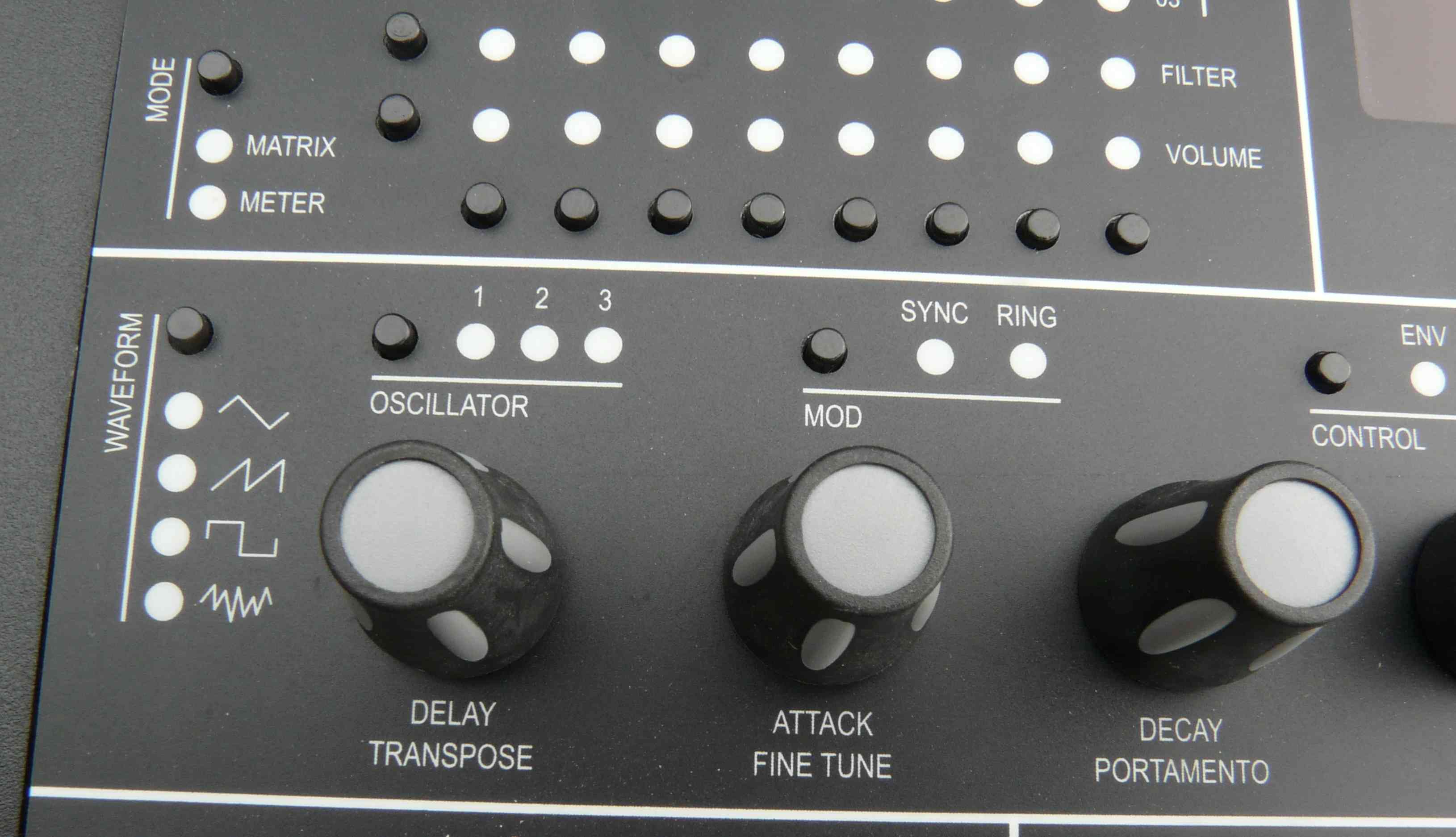

May be interested in a set here too, wondering though, the LED holes don't appear to be drilled on the photographs in the first post?

[ilmenator]

May be interested in a set here too, wondering though, the LED holes don't appear to be drilled on the photographs in the first post?

The whole thing looks like being covered with a Lexan overlay? Where did you order that?

[mrcam]

Hello,

Intéressé aussi par 1 panel pour une MB6582.

Merci !

[iZZE]

Hello.. I am from Austria/Europe..i am also interested.. I would only need the Frontpanel. Are the led holes cut out ?

Thanks

Patrick

[ganchan]

probably interested in one, can you give use some more specs?

[reboot]

hello

sorry for the delay ....

the lexan panels i had have a problem as i didn't checked my illustrator file .

i will organise a batch next week .

price will be around 80 euros max .

the lexan will have a window included like this ..

http://picasaweb.google.com/catchreboot/MBSID#5359182162824829698

not here

http://picasaweb.google.com/catchreboot/SidPanels#5509422095551359858

i can fix the lexan on the panel for you and spacers if you need .

ilmenator, you're right , the leds are not drilled , it's like opaque film .

same technique :

http://audio.chernis-grant.com/pictures/ebay/minimoog/DSC01863.jpg

Ize , i an do a panel in 2mm alu anodized or 1,5mm metal or 1,5 inox a bit like mirror but it can have imperfections .

your impressions are welcome

thank you

Edited November 3, 2010 by reboot

[ganchan]

well, seems good but, the next batch will have that imperfection on the lexan?

about the imperfection, do you mean the one in the photo where the lcd button's holes in the lexan are not in place with the metal panel's holes?

i've noticed in the first post, left photo, the bottom left screw seems like had flex the panel like it is made of plastic or thin metal, can you explain? :)

thankyou.

G.

[reboot]

hello ganchan,

the next batch will not have the imperfection on the lexan , it concern just the laser cut .

the flex you see is because i screw a bit too much , the lexan is like a thick sticker , i can cut the holes in 4mm or more .

on the metal panel ,

the leds and buttons holes will be 4mm instead of 3 and 3,5mm , and window 1mm bigger.

in this case it's impossible to see the panel after lexan fixed .

pics very soon .

[reboot]

the back panel can be changed also so ideas are welcome.

thanks

[ganchan]

i like to see the panel with a led lighting in the back if it possible.

if you had screw too much and flexed the lexan i can assume that this is 2mm or more..

i've never see a sticker on meta flexed with a screw, is too thin :)

[iZZE]

I already have a Aluminium Panel.. as i dont know exactly what lexan is, will i be able to fit it over my panel ? i have a red eloxated one, but i would like black, so can i just put a black lexan overlay on it ? How much would it cost. Thanks Patrick

[reboot]

Patrick ,just the lexan ..40e it's very easy to fix it with water and soap .

the lexan is 0,5mm (i suppose)

thanks

[iZZE]

Any pictures of the lexan in action ?

Thanks

Patrick

[reboot]

i wait a screen from eio for 1,5 month...after i 'll receive and finish the sid , i'll send you pictures .

[tb303orys]

i want a set too!
