Encoder trouble makes FM hard to control Rate Topic:

#1 selfservice

MIDIbox Newbie

Group: Members
Posts: 54
Joined: 03-May 04
LocationItaly

Posted 28 August 2011 - 12:11

Hi guys, after 2 years i found some spare time and motivation to finish my FM.
Now i've a problem with the encoders. They are from AVI Showtech and are 24 step detented encoders. They seems to be glitchy and every step modify the counter of 4 steps or more. Even movin the knob up and down without doing another step makes the counter up or down.

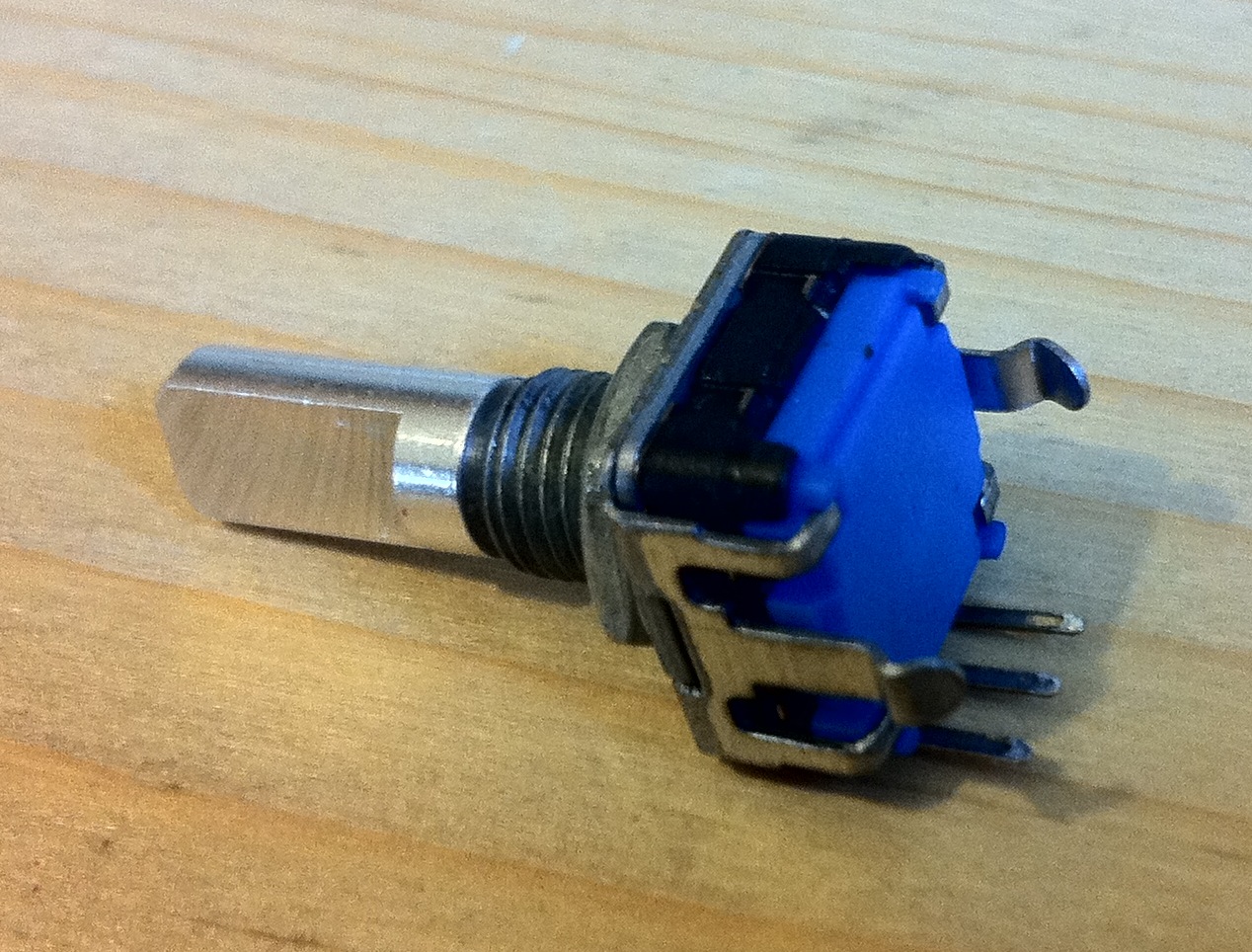

Attacched there is a photo of the encoder and a video of the trouble.

Can you suggest me something to solve the problem?

Kisses

Attached File(s)

Number of downloads: 5

This post has been edited by selfservice: 28 August 2011 - 12:14

Beatu chi lu pota, Beatu chi lu zappa, Na paralise secca a chi ce mette l'acqua.

#2 ilmenator

MIDIbox Guru

Group: Frequent Writer
Posts: 1,120
Joined: 01-September 02
LocationTrondheim, Norway

Posted 28 August 2011 - 12:25

Well, the obvious would be: get another encoder!

#3 m00dawg

MIDIbox Guru

Group: Members
Posts: 1,083
Joined: 27-March 07
LocationUSA

Posted 28 August 2011 - 14:23

Actually, I sometimes have similar problems with the SammichFM such that I have wondered if it was a software thing?

My Blog: http://www.moocowproductions.org/
My Band: http://www.victimcache.com/

#4 TK.

MIDIbox Guru

Group: Administrators
Posts: 11,141
Joined: 01-January 01
LocationGermany

Posted 28 August 2011 - 17:33

No, it's now SW issue.

But this can happen if you swapped the connections between the 3 encoder pins!

Some encoders have ground at the middle pin, some others at the left pin.
Just try it!

Best Regards, Thorsten.
