Core4Disc Midi-Expansion
this is one essential part for my triggermatrix5

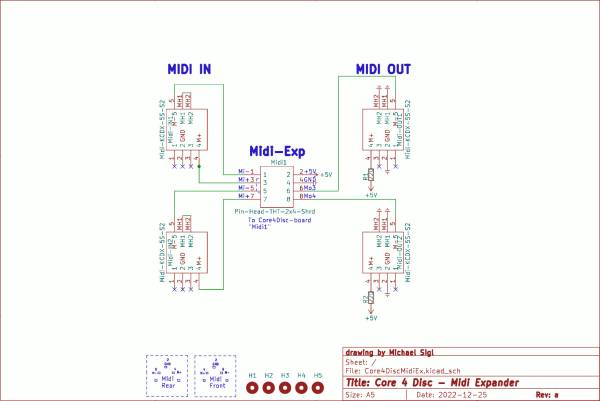

Shematic
Building and BOM
Handsolder, easy project…
BOM
^Qty ^Reference(s) ^Value ^Footprint ^Mouser^
| 1 | Midi1 | Pin-Head-2×4 | PinHead-Shrd-2×4-THT | 649-75869-232LF |
| 4 | Midi-IN1-2, Midi-OUT1-2 | Din 5Pole | KCDX5SS2 | 806-KCDX-5S-S2 |
| 2 | R1, R2 | 220 | THT or 1206 | SMD: 660-RK73B2BTTD221J THT: 281-220-RC |
R1 and R2 can be solderd as Thruhole, or SMD1206 Package
To Do
waiting for Prototype PCB
Community users working on it
- Phatline = PCB & Shematic, UI-Programming, Documentation…
Just let a Private message on the forum to user already involved.
or join the forum: Triggermatrix 5
