dipBoardF4 Modules

Basic connection Modules for dipBoardF4 and dipCoreF4.

Dual OTG USB, one Dual role(mini-AB, B) and second is Host only(A).
DC Input 9-12V with 5V regulator, switch and led.
In device Mode, VBUS is switched off when DC Input is enough to supply the 5V regulator.
Power switch also acts on USB powering.
micro-SD Card socket with push-push.
Reset and User buttons, 2 leds for user purpose.
Dual MCAN bus RJ11 connectors with 120Ω termination switch.

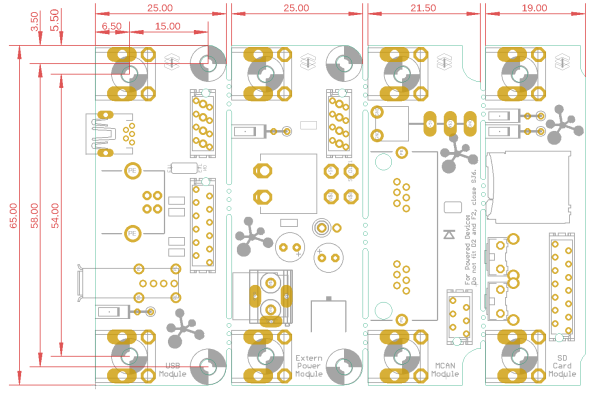

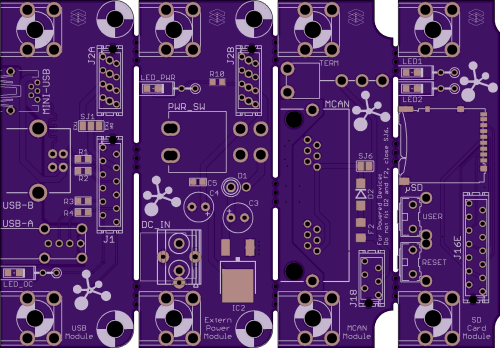

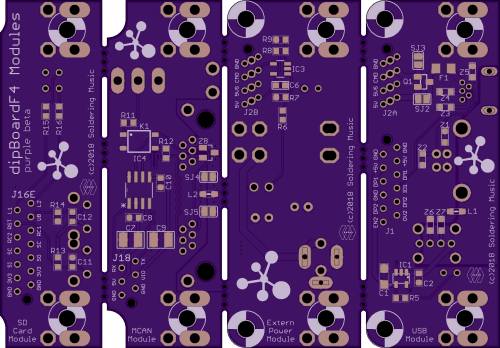

PCB

2 layers PCB design.
Fits 2 layer mostly common design rules.

version 1. Mouser BOM:toDo

Qty	Value	Package	Parts	Mouser	Notes
Resistors
4	22R 5%	0603	R1, R2, R3, R4	667-ERJ-PA3J220V
1	680R 5%	0603	R5	667-ERJ-PA3J681V	Depends on Led
PTC fuses, resettable thermistors
1	1206L150THWR	1206	F1	576-1206L150THWR
Capacitors
1	100n	0603	C2	80-C0603C104Z3V
1	4,7u Tantalum	SMC_A(1206)	C1	647-F931C475MAA
ESD Suppressors / TVS Diodes
7	CG0603MLC-05E	0603	Z1, Z2, Z3, Z4, Z5, Z6, Z7	652-CG0603MLC-05E
Ferrite Bead
1	BLM21	0805	L1	81-BLM21P331SG
LEDs
1	–	0805 or THT	LED_OC	755-SML-H12U8TT86C(0805)	2x5mm rectangular THT
Transistor
1	FDN304P	SSOT-3	Q1	512-FDN304P	P-Channel MOSFET
IC
1	STMPS2161STR	SOT23-5L	IC1	511-STMPS2161STR	Power Switch IC
Connectors
1	mini-USB	THT	MINI-USB	571-1734510-1
1	USB-B	THT	USB-B	538-67068-8000
1	USB-A	THT	USB-A	538-48204-0001
1	micro-match 2×4	Female	J2A	571-7-215079-8 or 571-2178710-8 (value line)
1	micro-match 2×6	Female	J1A	571-8-215079-2 or 571-1-2178710-2 (value line)
Others
2	Screw terminal	–	–	534-7790

version 1. Mouser BOM:toDo

Qty	Value	Package	Parts	Mouser	Notes
Resistors
1	680R 5%	0603	R10	667-ERJ-PA3J681V	Depends on Led
2	10K 1%	0603	R6, R7	755-ESR03EZPF1002
1	22K 1%	0603	R8	755-ESR03EZPF2202
1	33K 1%	0603	R9	667-ERJ-PA3F3302V
Capacitors
2	100n	0603	C5, C6	80-C0603C104Z3V
2	10u	THT	C3, C4	667-ECE-A1HKA100I	6mm diam. max, 2.5mm lead space
Diode
1	SB240	DO15	D1	625-SB240-E3
LEDs
1	–	0805 or THT	LED_PWR	755-SML-H12U8TT86C(0805)	2x5mm rectangular THT
IC
1	LD1086DT50TR	DPACK	IC2	511-LD1086DT50TR
1	LM321MF	SOT23-5	IC3	926-LM321MF/NOPB	Low Power Single Op Amp
Switch
1	E201J1AV2	–	PWR_SW	611-E201-004	DPDT power switch(same as Sammich…)
Connectors
1	micro-match 2×4	Female	J2B	571-7-215079-8 or 571-2178710-8 (value line)
1	DC in Socket Opt*1	Female	DC_IN	490-PJ-037A	Jack on board
1	DC in Socket Opt*2	Female	DC_IN	651-1729128 + 502-712A	Screw terminal on board(Board/Switch on front) + Jack on backpanel
Others
2	Screw terminal	–	–	534-7790

version 1. Mouser BOM:toDo

version 1. Mouser BOM:toDo

Qty	Value	Package	Parts	Mouser	Notes
Resistors
1	100R 5%	0603	R12	755-ESR03EZPF1000
1	1K 5%	0603	R11	755-ESR03EZPJ102
PTC fuses, resettable thermistors
1	1206L150THWR	1206	F2	576-1206L150THWR
Capacitors
2	100n	0603	C8, C10	80-C0603C104Z3V
2	1u	1210	C7, C9	710-885012209003
ESD Suppressors / TVS Diodes
1	PESD1CAN	SOT23	Z8	771-PESD1CAN-T/R
Diodes
1	LSM115J	DO214BA	D2	494-LSM115JE3/TR13
Ferrite Bead
1	BLM21	0805	L2	81-BLM21P331SG
Relay
1	TLP175A	SOP4	Q1	757-TLP175A(TPLE	Photorelay MOSFET
IC
1	TCAN1042GV	SOIC8	IC4	595-TCAN1042GVDRQ1	CAN tranceiver
Switch
1	1101M2S3AV2BE2	–	TERM	611-1101M2S3AV2BE2
Connectors
1	RJE0166202	dual RJ11 6p6c	MCAN	523-RJE01-662-02
1	micro-match2x3	Female	J18	571-215079-6 or 571-2178710-6 (value line)
Others
2	Screw terminal	–	–	534-7790
