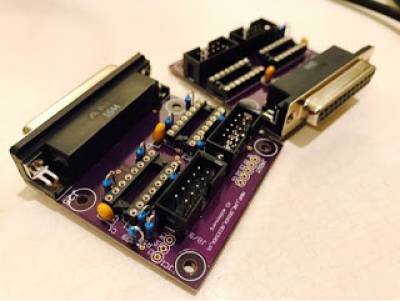

LINE DRIVER Boards parts list
The line driver modules have been designed to connect SPI devices and serial shift registers (DINs/DOUTs) to a MIDIbox over long distances.
Parts List
| Description | Type | Quantity | Reichelt Ref | Mouser Ref | Digikey Ref |
|---|---|---|---|---|---|
| MC3486 | RS-422 Interface IC Quad Line | 2 | MC 3486 DIL | 595-MC3486N | |
| MC3487 | RS-422 Interface IC Quad Line | 2 | MC 3487 DIL | 595-MC3487N | |
| IC socket | 16 pin | 4 | GS 16 | 575-199316 | |
| Ceramic Cap | 100 nF (.1uF) | 4 | Z5U-2,5 100n | 80-C412C104K5R | |
| Resistor | 100 Ohm | 12 | 1/4W 110 | 603-MFR-25FBF52-100R | |
| D-sub female connector | 25 pin | 2 | D-SUB BU 25US | 571-1734350-1 | |
| 2×5 DIL Headers | 10 pin | 4 | WSL 10G | ||
| 2×5 DIL Sockets | 10 pin | 4 | PFL 10 | 538-87834-1019 | |
| 1-row SIL Headers | (only 13 pins required) | 1 | 855-M20-9994045 | ||
| Jumper | 10 pin | 4 | JUMPER 2,54GL RT |
Mouser Parts Cart: https://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=e7d04d9577
Datasheets
