modules/blm_x/blm_x.h File Reference

#include <mios32_config.h>

Data Structures
struct	blm_x_config_t
Defines
#define	BLM_X_NUM_ROWS   4
#define	BLM_X_BTN_NUM_COLS   4
#define	BLM_X_LED_NUM_COLS   4
#define	BLM_X_LED_NUM_COLORS   3
#define	BLM_X_ROWSEL_DOUT_SR   1
#define	BLM_X_LED_FIRST_DOUT_SR   2
#define	BLM_X_BTN_FIRST_DIN_SR   1
#define	BLM_X_ROWSEL_INV_MASK   0x00
#define	BLM_X_DEBOUNCE_MODE   0
#define	BLM_X_COLOR_MODE   0
#define	BLM_X_NUM_BTN_SR   (BLM_X_BTN_NUM_COLS / 8 + 1)
#define	BLM_X_NUM_LED_SR   (BLM_X_LED_NUM_COLS * BLM_X_LED_NUM_COLORS / 8 + 1)
Functions
s32	BLM_X_Init (void)
s32	BLM_X_PrepareRow (void)
s32	BLM_X_GetRow (void)
s32	BLM_X_BtnHandler (void *notify_hook)
s32	BLM_X_BtnGet (u32 btn)
u8	BLM_X_BtnSRGet (u8 row, u8 sr)
s32	BLM_X_LEDSet (u32 led, u32 color, u32 value)
s32	BLM_X_LEDColorSet (u32 led, u32 color_mask)
s32	BLM_X_LEDSRSet (u8 row, u8 sr, u8 sr_value)
s32	BLM_X_LEDGet (u32 led, u32 color)
u32	BLM_X_LEDColorGet (u32 led)
u8	BLM_X_LEDSRGet (u8 row, u8 sr)
s32	BLM_X_ConfigSet (blm_x_config_t config)
blm_x_config_t	BLM_X_ConfigGet (void)
Variables
u8	BLM_X_LED_rows [BLM_X_NUM_ROWS][BLM_X_NUM_LED_SR]

---

Define Documentation

#define BLM_X_BTN_FIRST_DIN_SR   1

#define BLM_X_BTN_NUM_COLS   4

#define BLM_X_COLOR_MODE   0

#define BLM_X_DEBOUNCE_MODE   0

#define BLM_X_LED_FIRST_DOUT_SR   2

#define BLM_X_LED_NUM_COLORS   3

#define BLM_X_LED_NUM_COLS   4

#define BLM_X_NUM_BTN_SR   (BLM_X_BTN_NUM_COLS / 8 + 1)

#define BLM_X_NUM_LED_SR   (BLM_X_LED_NUM_COLS * BLM_X_LED_NUM_COLORS / 8 + 1)

#define BLM_X_NUM_ROWS   4

#define BLM_X_ROWSEL_DOUT_SR   1

#define BLM_X_ROWSEL_INV_MASK   0x00

---

Function Documentation

s32 BLM_X_BtnGet

(

u32

btn

)

s32 BLM_X_BtnHandler

(

void *

notify_hook

)

Here is the call graph for this function:

u8 BLM_X_BtnSRGet	(	u8	row,
		u8	sr
	)

blm_x_config_t BLM_X_ConfigGet

(

void

)

s32 BLM_X_ConfigSet

(

blm_x_config_t

config

)

s32 BLM_X_GetRow

(

void

)

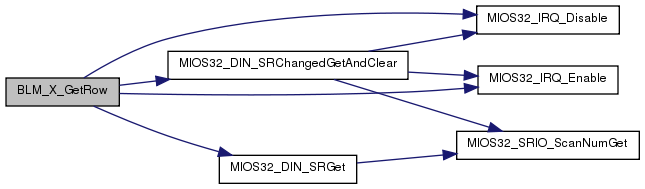

Here is the call graph for this function:

s32 BLM_X_Init

(

void

)

u32 BLM_X_LEDColorGet

(

u32

led

)

s32 BLM_X_LEDColorSet	(	u32	led,
		u32	color_mask
	)

s32 BLM_X_LEDGet	(	u32	led,
		u32	color
	)

s32 BLM_X_LEDSet	(	u32	led,
		u32	color,
		u32	value
	)

u8 BLM_X_LEDSRGet	(	u8	row,
		u8	sr
	)

s32 BLM_X_LEDSRSet	(	u8	row,
		u8	sr,
		u8	sr_value
	)

s32 BLM_X_PrepareRow

(

void

)

Here is the call graph for this function:

---

Variable Documentation

u8 BLM_X_LED_rows[BLM_X_NUM_ROWS][BLM_X_NUM_LED_SR]
