MIOS32_SDCARD

Defines

#define MIOS32_SDCARD_MUTEX_TAKE   {}
#define MIOS32_SDCARD_MUTEX_GIVE   {}
#define MIOS32_SDCARD_SPI_PRESCALER   MIOS32_SPI_PRESCALER_8
#define SDCMD_GO_IDLE_STATE   (0x40+0)
#define SDCMD_GO_IDLE_STATE_CRC   0x95
#define SDCMD_SEND_OP_COND   (0x40+1)
#define SDCMD_SEND_OP_COND_CRC   0xf9
#define SDCMD_SEND_OP_COND_SDC   (0xC0+41)
#define SDCMD_SEND_OP_COND_SDC_CRC   0xff
#define SDCMD_READ_OCR   (0x40+58)
#define SDCMD_READ_OCR_CRC   0xff
#define SDCMD_APP_CMD   (0x40+55)
#define SDCMD_APP_CMD_CRC   0xff
#define SDCMD_SEND_IF_COND   (0x40+8)
#define SDCMD_SEND_IF_COND_CRC   0x87
#define SDCMD_SEND_CSD   (0x40+9)
#define SDCMD_SEND_CSD_CRC   0xff
#define SDCMD_SEND_CID   (0x40+10)
#define SDCMD_SEND_CID_CRC   0xff
#define SDCMD_SEND_STATUS   (0x40+13)
#define SDCMD_SEND_STATUS_CRC   0xaf
#define SDCMD_READ_SINGLE_BLOCK   (0x40+17)
#define SDCMD_READ_SINGLE_BLOCK_CRC   0xff
#define SDCMD_SET_BLOCKLEN   (0x40+16)
#define SDCMD_SET_BLOCKLEN_CRC   0xff
#define SDCMD_WRITE_SINGLE_BLOCK   (0x40+24)
#define SDCMD_WRITE_SINGLE_BLOCK_CRC   0xff
#define CT_MMC   0x01
#define CT_SD1   0x02
#define CT_SD2   0x04
#define CT_SDC   (CT_SD1|CT_SD2)
#define CT_BLOCK   0x08

Functions

s32 MIOS32_SDCARD_Init (u32 mode)
s32 MIOS32_SDCARD_PowerOn (void)
s32 MIOS32_SDCARD_PowerOff (void)
s32 MIOS32_SDCARD_CheckAvailable (u8 was_available)
s32 MIOS32_SDCARD_SendSDCCmd (u8 cmd, u32 addr, u8 crc)
s32 MIOS32_SDCARD_SectorRead (u32 sector, u8 *buffer)
s32 MIOS32_SDCARD_SectorWrite (u32 sector, u8 *buffer)
s32 MIOS32_SDCARD_CIDRead (mios32_sdcard_cid_t *cid)
s32 MIOS32_SDCARD_CSDRead (mios32_sdcard_csd_t *csd)

Detailed Description

SD Card is accessed via SPI1 (J16) or alternatively via SPI2 (J8/9) A bitbanging solution (for using alternative ports) will be provided later.

The card has to be supplied with 3.3V!

The SDIO peripheral is not used to ensure compatibility with "mid density" devices of the STM32 family, and future derivatives != STM32

MIOS32_SDCARD_Init(0) has to be called only once to initialize the driver.

MIOS32_SDCARD_CheckAvailable() should be called to connect with the SD Card. If 0 is returned, it can be assumed that no SD Card is connected. The function can be called periodically from a low priority task to retry a connection, resp. for an auto-detection during runtime

MIOS32_SDCARD_SectorRead/SectorWrite allow to read/write a 512 byte sector.

If such an access returns an error, it can be assumed that the SD Card has been disconnected during the transfer.

Since DMA is used for serial transfers, Reading/Writing a sector typically takes ca. 500 uS, accordingly the achievable transfer rate is ca. 1 MByte/s (8 MBit/s)

08 Jan 2009: Modified by philetaylor to add MMC and HCSD support also added a first attempt at using a mutex to allow sharing of SPI0 between SD cards and ENC28J60 ethernet. If used in this way, SD card must be inserted at poweron and will not be recognised if inserted after. Hopefully a fix will be found for this!

Define Documentation

#define CT_BLOCK   0x08
#define CT_MMC   0x01
#define CT_SD1   0x02
#define CT_SD2   0x04
#define CT_SDC   (CT_SD1|CT_SD2)
#define MIOS32_SDCARD_MUTEX_GIVE   {}
#define MIOS32_SDCARD_MUTEX_TAKE   {}
#define MIOS32_SDCARD_SPI_PRESCALER   MIOS32_SPI_PRESCALER_8
#define SDCMD_APP_CMD   (0x40+55)
#define SDCMD_APP_CMD_CRC   0xff
#define SDCMD_GO_IDLE_STATE   (0x40+0)
#define SDCMD_GO_IDLE_STATE_CRC   0x95
#define SDCMD_READ_OCR   (0x40+58)
#define SDCMD_READ_OCR_CRC   0xff
#define SDCMD_READ_SINGLE_BLOCK   (0x40+17)
#define SDCMD_READ_SINGLE_BLOCK_CRC   0xff
#define SDCMD_SEND_CID   (0x40+10)
#define SDCMD_SEND_CID_CRC   0xff
#define SDCMD_SEND_CSD   (0x40+9)
#define SDCMD_SEND_CSD_CRC   0xff
#define SDCMD_SEND_IF_COND   (0x40+8)
#define SDCMD_SEND_IF_COND_CRC   0x87
#define SDCMD_SEND_OP_COND   (0x40+1)
#define SDCMD_SEND_OP_COND_CRC   0xf9
#define SDCMD_SEND_OP_COND_SDC   (0xC0+41)
#define SDCMD_SEND_OP_COND_SDC_CRC   0xff
#define SDCMD_SEND_STATUS   (0x40+13)
#define SDCMD_SEND_STATUS_CRC   0xaf
#define SDCMD_SET_BLOCKLEN   (0x40+16)
#define SDCMD_SET_BLOCKLEN_CRC   0xff
#define SDCMD_WRITE_SINGLE_BLOCK   (0x40+24)
#define SDCMD_WRITE_SINGLE_BLOCK_CRC   0xff

Function Documentation

s32 MIOS32_SDCARD_CheckAvailable ( u8  was_available  )

If SD card was previously available: Checks if the SD Card is still available by sending the STATUS command.
This takes ca. 10 uS

If SD card was previously not available: Checks if the SD Card is available by sending the IDLE command at low speed.
This takes ca. 500 uS!
Once we got a positive response, MIOS32_SDCARD_PowerOn() will be called by this function to initialize the card completely.

Example for Connection/Disconnection detection:

 // this function is called each second from a low-priority task
 // If multiple tasks are accessing the SD card, add a semaphore/mutex
 //  to avoid IO access collisions with other tasks!
 u8 sdcard_available;
 s32 SEQ_FILE_CheckSDCard(void)
 {
   // check if SD card is available
   // High speed access if the card was previously available
   u8 prev_sdcard_available = sdcard_available;
   sdcard_available = MIOS32_SDCARD_CheckAvailable(prev_sdcard_available);

   if( sdcard_available && !prev_sdcard_available ) {
     // SD Card has been connected

     // now it's possible to read/write sectors

   } else if( !sdcard_available && prev_sdcard_available ) {
     // SD Card has been disconnected

     // here you can notify your application about this state
   }

   return 0; // no error
 }
Parameters:
[in] was_available should only be set if the SD card was previously available
Returns:
0 if no response from SD Card
1 if SD card is accessible

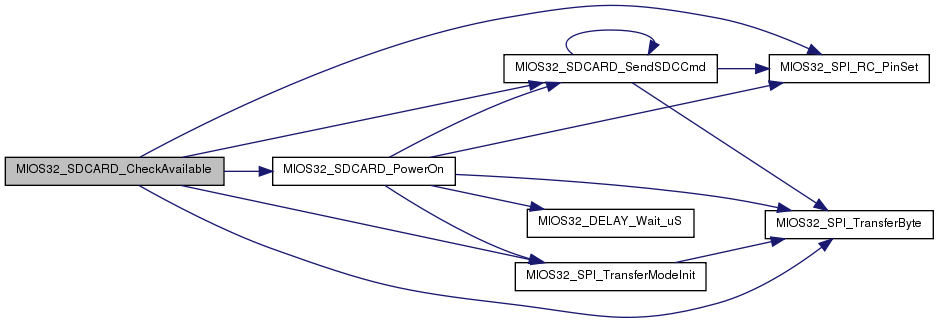

Here is the call graph for this function:

s32 MIOS32_SDCARD_CIDRead ( mios32_sdcard_cid_t *  cid  )

Reads the CID informations from SD Card

Parameters:
[in] *cid pointer to buffer which holds the CID informations
Returns:
0 if the informations haven been successfully read
-error if error occured during read operation
-256 if timeout during command has been sent
-257 if timeout while waiting for start token

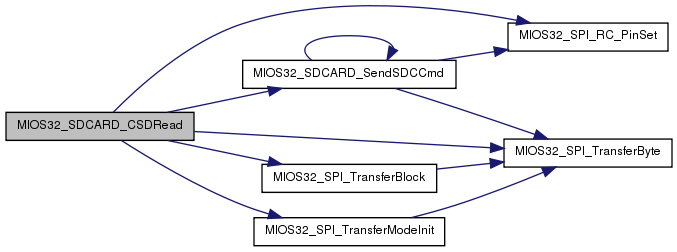

Here is the call graph for this function:

s32 MIOS32_SDCARD_CSDRead ( mios32_sdcard_csd_t *  csd  )

Reads the CSD informations from SD Card

Parameters:
[in] *csd pointer to buffer which holds the CSD informations
Returns:
0 if the informations haven been successfully read
-error if error occured during read operation
-256 if timeout during command has been sent
-257 if timeout while waiting for start token

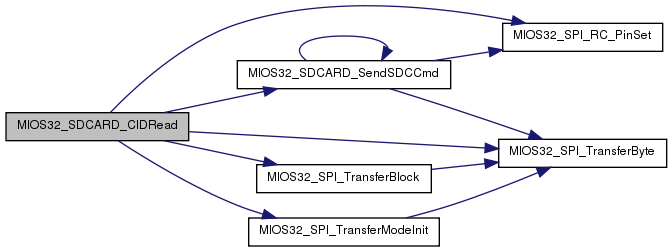

Here is the call graph for this function:

s32 MIOS32_SDCARD_Init ( u32  mode  )

Initializes SPI pins and peripheral to access MMC/SD Card

Parameters:
[in] mode currently only mode 0 supported
Returns:
< 0 if initialisation failed

Here is the call graph for this function:

s32 MIOS32_SDCARD_PowerOff ( void   )

Disconnects from SD Card

Returns:
< 0 on errors
Todo:
not implemented yet
s32 MIOS32_SDCARD_PowerOn ( void   )

Connects to SD Card

Returns:
< 0 if initialisation sequence failed

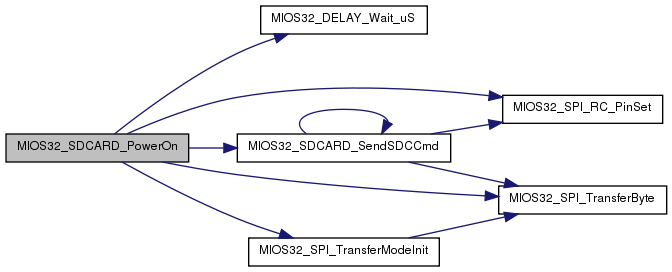

Here is the call graph for this function:

s32 MIOS32_SDCARD_SectorRead ( u32  sector,
u8 *  buffer
)

Reads 512 bytes from selected sector

Parameters:
[in] sector 32bit sector
[in] *buffer pointer to 512 byte buffer
Returns:
0 if whole sector has been successfully read
-error if error occured during read operation:
  • Bit 0 - In idle state if 1
  • Bit 1 - Erase Reset if 1
  • Bit 2 - Illgal Command if 1
  • Bit 3 - Com CRC Error if 1
  • Bit 4 - Erase Sequence Error if 1
  • Bit 5 - Address Error if 1
  • Bit 6 - Parameter Error if 1
  • Bit 7 - Not used, always '0'
-256 if timeout during command has been sent
-257 if timeout while waiting for start token

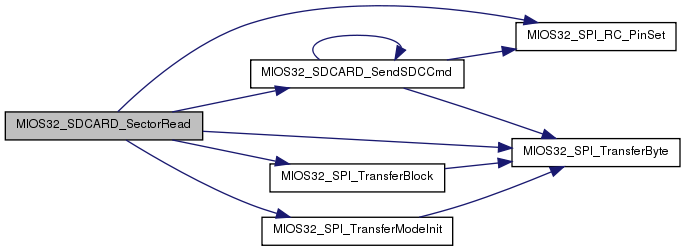

Here is the call graph for this function:

s32 MIOS32_SDCARD_SectorWrite ( u32  sector,
u8 *  buffer
)

Writes 512 bytes into selected sector

Parameters:
[in] sector 32bit sector
[in] *buffer pointer to 512 byte buffer
Returns:
0 if whole sector has been successfully read
-error if error occured during read operation:
  • Bit 0 - In idle state if 1
  • Bit 1 - Erase Reset if 1
  • Bit 2 - Illgal Command if 1
  • Bit 3 - Com CRC Error if 1
  • Bit 4 - Erase Sequence Error if 1
  • Bit 5 - Address Error if 1
  • Bit 6 - Parameter Error if 1
  • Bit 7 - Not used, always '0'
-256 if timeout during command has been sent
-257 if write operation not accepted
-258 if timeout during write operation

Here is the call graph for this function:

s32 MIOS32_SDCARD_SendSDCCmd ( u8  cmd,
u32  addr,
u8  crc
)

Sends command to SD card

Parameters:
[in] cmd SD card command
[in] addr 32bit address
[in] crc precalculated CRC
Returns:
>= 0x00 if command has been sent successfully (contains received byte)
-1 if no response from SD Card (timeout)

Here is the call graph for this function:
