MIOS32_SRIO

Functions
s32	MIOS32_SRIO_Init (u32 mode)
u8	MIOS32_SRIO_ScanNumGet (void)
s32	MIOS32_SRIO_ScanNumSet (u8 new_num_sr)
s32	MIOS32_SRIO_DoutPageGet (void)
u32	MIOS32_SRIO_DebounceGet (void)
s32	MIOS32_SRIO_DebounceSet (u8 _debounce_time)
s32	MIOS32_SRIO_DebounceStart (void)
s32	MIOS32_SRIO_ScanStart (void *_notify_hook)
Variables
volatile u8	mios32_srio_dout [MIOS32_SRIO_NUM_DOUT_PAGES][MIOS32_SRIO_NUM_SR]
volatile u8	mios32_srio_din [MIOS32_SRIO_NUM_SR]
volatile u8	mios32_srio_din_buffer [MIOS32_SRIO_NUM_SR]
volatile u8	mios32_srio_din_changed [MIOS32_SRIO_NUM_SR]

---

Detailed Description

SRIO Driver for MIOS32

---

Function Documentation

u32 MIOS32_SRIO_DebounceGet

(

void

)

Returns the debounce counter reload value of the DIN SR registers

Returns:

debounce counter reload value (0 if disabled, otherwise 1..255)

s32 MIOS32_SRIO_DebounceSet

(

u8

_debounce_time

)

Sets the debounce counter reload value for the DIN SR registers which are not assigned to rotary encoders (or other drivers which get use of MIOS32_DIN_SRChangedGetAndClear()) to debounce low-quality buttons.

Debouncing is realized in the following way: on every button movement the debounce preload value will be loaded into the debounce counter register. The counter will be decremented on every SRIO update cycle (usually 1 mS) As long as this counter isn't zero, button changes will still be recorded, but they won't trigger the APP_DIN_NotifyToggle hook.

No (intended) button movement will get lost, but the latency will be increased. Example: if the update frequency is set to 1 mS, and the debounce value to 32, the first button movement will be regognized with a worst-case latency of 1 mS. Every additional button movement which happens within 32 mS will be regognized within a worst-case latency of 32 mS. After the debounce time has passed, the worst-case latency is 1 mS again.

This function affects all DIN registers. If the application should record pin changes from digital sensors which are switching very fast, then debouncing should be ommited.

Parameters:

[in]

debounce_time

delay in mS (1..255) 0 disables debouncing (default)

Returns:

< 0 on errors

s32 MIOS32_SRIO_DebounceStart

(

void

)

Internally used function to start the debounce delay after a button has been moved.
This function is used by MIOS32_DIN_Handler(), there is no need to use it in a common application.

Returns:

< 0 on errors

s32 MIOS32_SRIO_DoutPageGet

(

void

)

Returns:

the DOUT page which is currently active (counted from 0)
(changes with each SRIO update cycle)

s32 MIOS32_SRIO_Init

(

u32

mode

)

Initializes SPI pins and peripheral

Parameters:

[in]

mode

currently only mode 0 supported

Returns:

< 0 if initialisation failed

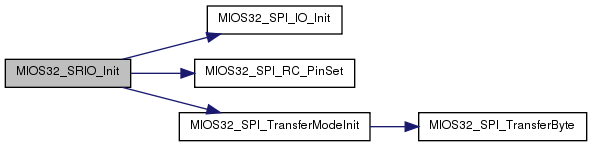

Here is the call graph for this function:

u8 MIOS32_SRIO_ScanNumGet

(

void

)

Returns the number of SRs which will be scanned by the SRIO driver

Returns:

number of SRs

s32 MIOS32_SRIO_ScanNumSet

(

u8

new_num_sr

)

Allows to change the number of SRs which will be scanned by the SRIO driver during runtime.

Parameters:

[in]

new_num_sr

must be lower or equal MIOS32_SRIO_NUM_SR

Returns:

!= 0 on errors

s32 MIOS32_SRIO_ScanStart

(

void *

_notify_hook

)

(Re-)Starts the SPI IRQ Handler which scans the SRIO chain

Parameters:

[in]

_notify_hook

notification function which will be called after the scan has been finished (all DOUT registers written, all DIN registers read) use NULL if no function should be called

Returns:

< 0 if operation failed

Here is the call graph for this function:

---

Variable Documentation

volatile u8 mios32_srio_din[MIOS32_SRIO_NUM_SR]

volatile u8 mios32_srio_din_buffer[MIOS32_SRIO_NUM_SR]

volatile u8 mios32_srio_din_changed[MIOS32_SRIO_NUM_SR]

volatile u8 mios32_srio_dout[MIOS32_SRIO_NUM_DOUT_PAGES][MIOS32_SRIO_NUM_SR]
