SSM2044 filter pcb stacked with two AOUT_LCs

jjonas

By jjonas

 Share

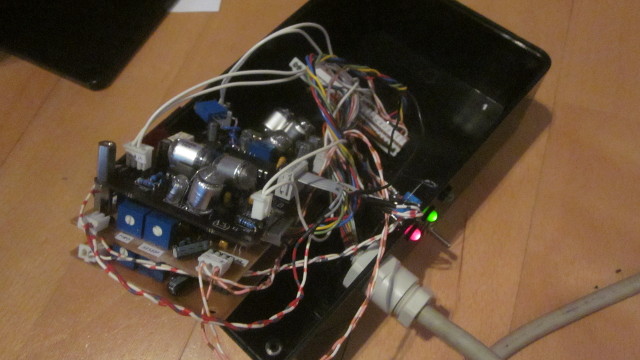

SSM2044 (seppoman) filter PCB stacked with two AOUT_LCs. Switch & red LED for switching bipolar 12VDC on/off, green LED for indicating whether the filter is switched to on or bypass (LED connected to CORE4_J5 digital switch pin).
