hey folks,
i got a problem with my sid-minimal-synth..
from the beginning: i first had to program the pic18f452 with the file mios_v1_9g (pic18f452-burner-bootloader_v1_2b_pic18f452), and i ordered a ks150 (for 10 euros), and it didnt function, dont know what, its 8 weeks ago ;) in my diplomarbeit i used a parallel programmer with this p18 by sprut.. some weeks later i did successfully write a program to it.. its not working probably, but some times it works.

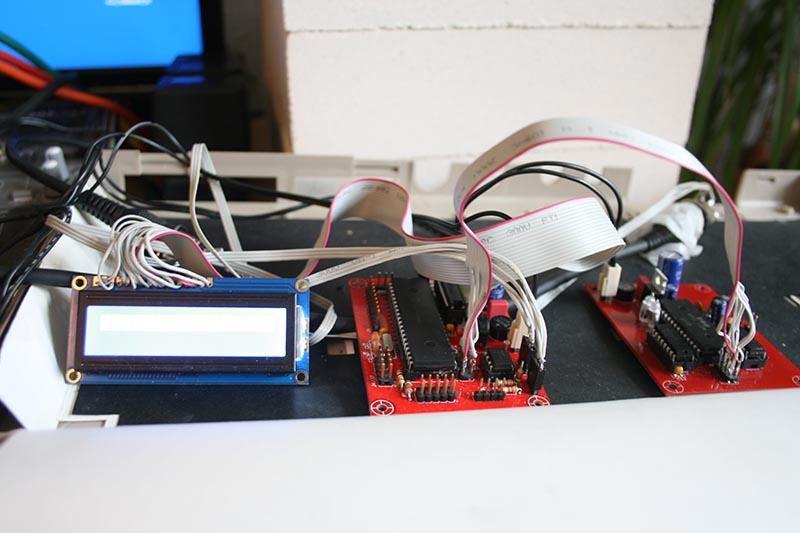

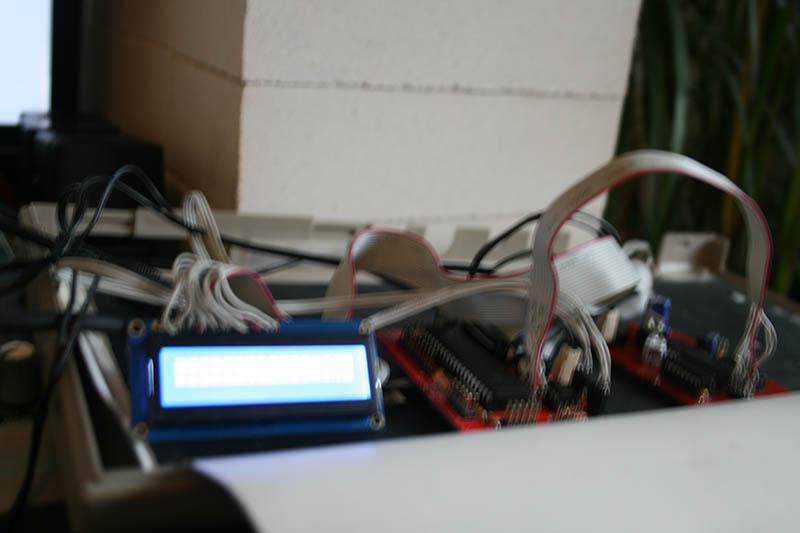

i assembled the core and its like on the picture1. mios studio 2.4.6 says "Operating System: MIOS8" and on the midi-in there is [1060.940] f0 00 00 7e 40 00 01 f7.. soweit so gut! ;)
midi-out is:
[2072.858] f0 00 00 7e 32 00 00 01 f7
[2072.858] f0 00 00 7e 40 00 0d 02 00 00 00 00 00 00 01 00 00 00 00 f7
[2073.056] f0 00 00 7e 40 00 02 00 00 00 01 10 11 12 13 14 15 16 17 18 19 1a f7
after that ive to program via midi the file on it (pic18f452-midi-mios_1_9g_pic18f452).

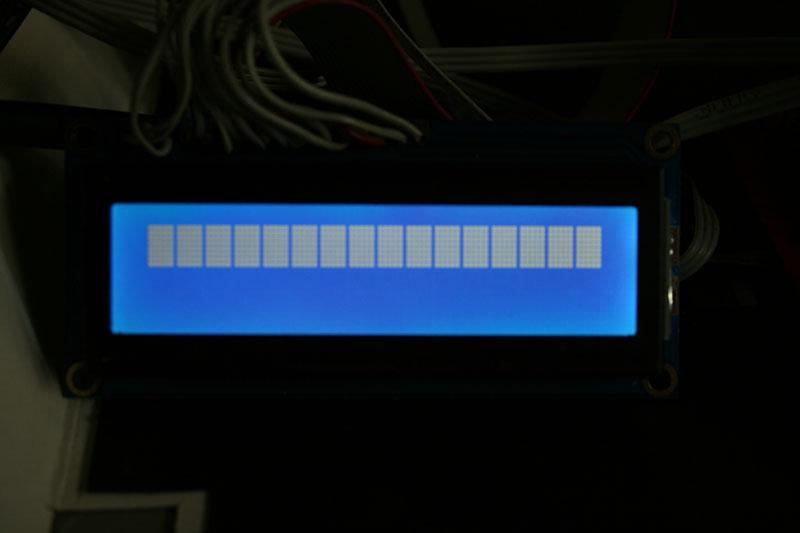

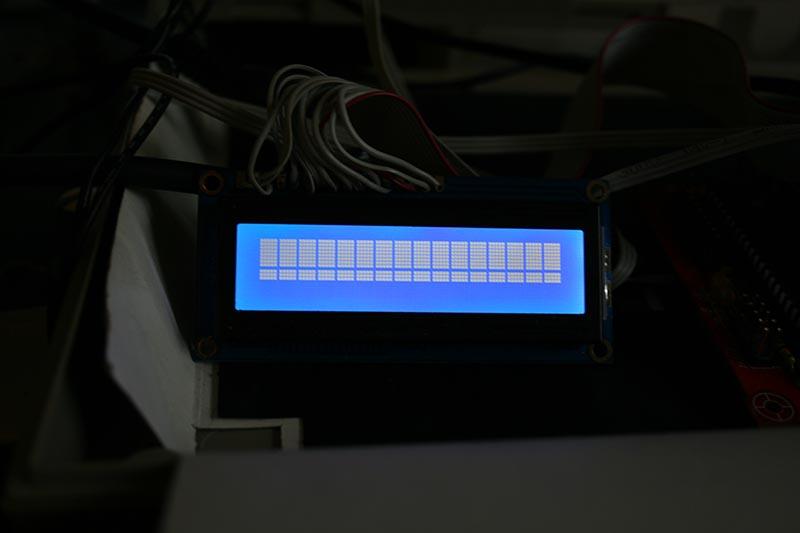

the file uploads and on the display is picture2. first 20 columns, all pixels on, and on the downer part the above 3 pixels are lit.
on the midi-in there is [2199.766] f0 00 00 7e 40 00 0f 00 00 f7
and on the midi-out:
[2199.490] f0 00 00 7e 32 00 00 01 f7
[2199.490] f0 00 00 7e 40 00 0d 02 00 00 00 00 00 00 01 00 00 00 00 f7
then i tried to find out, if there is another file to upload, then i selected midibox_sid_v1_730e to upload via midi the setup_6581.hex, and pushed start.
the display reset to the first output, all columns in the first row went lit.
after that there comes sth new: midi_in:
[2807.096] f0 00 00 7e 40 00 0e 0b 2c f7
[2809.400] f0 00 00 7e 40 00 01 f7
[2811.296] c0 00 Chn# 1 Program Change 0
[2811.296] c0 00 Chn# 1 Program Change 0
[2811.296] c0 00 Chn# 1 Program Change 0
[2813.018] f0 00 00 7e 46 01 0d 00 00 00 f7
[2813.025] f0 00 00 7e 46 01 0d 01 00 00 f7
[2813.033] f0 00 00 7e 46 01 0d 02 00 00 f7
[2813.124] f0 00 00 7e 46 01 02 00 49 6e 74 65 72 6e 61 6c 20 50 61 74 63 68 20 20 7f 00 00 00 00 00 00 00 00 01 40 00 00 00 40 40 40 40 02 00 04 40 00 00 00 00 7f 00 00 00 00 00 40 42 02 00 04 40 00 00 00 00 7f 00 00 00 00 00 40 3e 02 00 04 40 00 00 00 00 7f 00 00 00 00 00 00 00 7f 00 00 7f 00 00 7f 00 20 10 2e 00 00 00 07 10 7f 07 20 00 01 03 7f 01 40 00 01 50 7f 01 60 00 7f 40 40 40 40 00 60 60 20 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 38 f7
[2813.126] f0 00 00 7e 46 02 0d 00 00 00 f7
[2813.136] f0 00 00 7e 46 02 0d 01 00 00 f7
[2813.144] f0 00 00 7e 46 02 0d 02 00 00 f7
[2813.234] f0 00 00 7e 46 02 02 00 49 6e 74 65 72 6e 61 6c 20 50 61 74 63 68 20 20 7f 00 00 00 00 00 00 00 00 01 40 00 00 00 40 40 40 40 02 00 04 40 00 00 00 00 7f 00 00 00 00 00 40 42 02 00 04 40 00 00 00 00 7f 00 00 00 00 00 40 3e 02 00 04 40 00 00 00 00 7f 00 00 00 00 00 00 00 7f 00 00 7f 00 00 7f 00 20 10 2e 00 00 00 07 10 7f 07 20 00 01 03 7f 01 40 00 01 50 7f 01 60 00 7f 40 40 40 40 00 60 60 20 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 38 f7
[2813.236] f0 00 00 7e 46 03 0d 00 00 00 f7
[2813.246] f0 00 00 7e 46 03 0d 01 00 00 f7
[2813.254] f0 00 00 7e 46 03 0d 02 00 00 f7
[2813.343] f0 00 00 7e 46 03 02 00 49 6e 74 65 72 6e 61 6c 20 50 61 74 63 68 20 20 7f 00 00 00 00 00 00 00 00 01 40 00 00 00 40 40 40 40 02 00 04 40 00 00 00 00 7f 00 00 00 00 00 40 42 02 00 04 40 00 00 00 00 7f 00 00 00 00 00 40 3e 02 00 04 40 00 00 00 00 7f 00 00 00 00 00 00 00 7f 00 00 7f 00 00 7f 00 20 10 2e 00 00 00 07 10 7f 07 20 00 01 03 7f 01 40 00 01 50 7f 01 60 00 7f 40 40 40 40 00 60 60 20 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 38 f7
[2815.112] f0 00 00 7e 40 00 0f 00 00 f7
did i uploaded the files correctly? what is this calling up? i wanted to upload the interconnection, and i dunno if i should do that with the burner? or with mios studio? i did do it with mios studio and there comes nothing..
help me please.. i had an aneurysma 2 years ago, with 37 :(
thank you,
finn
