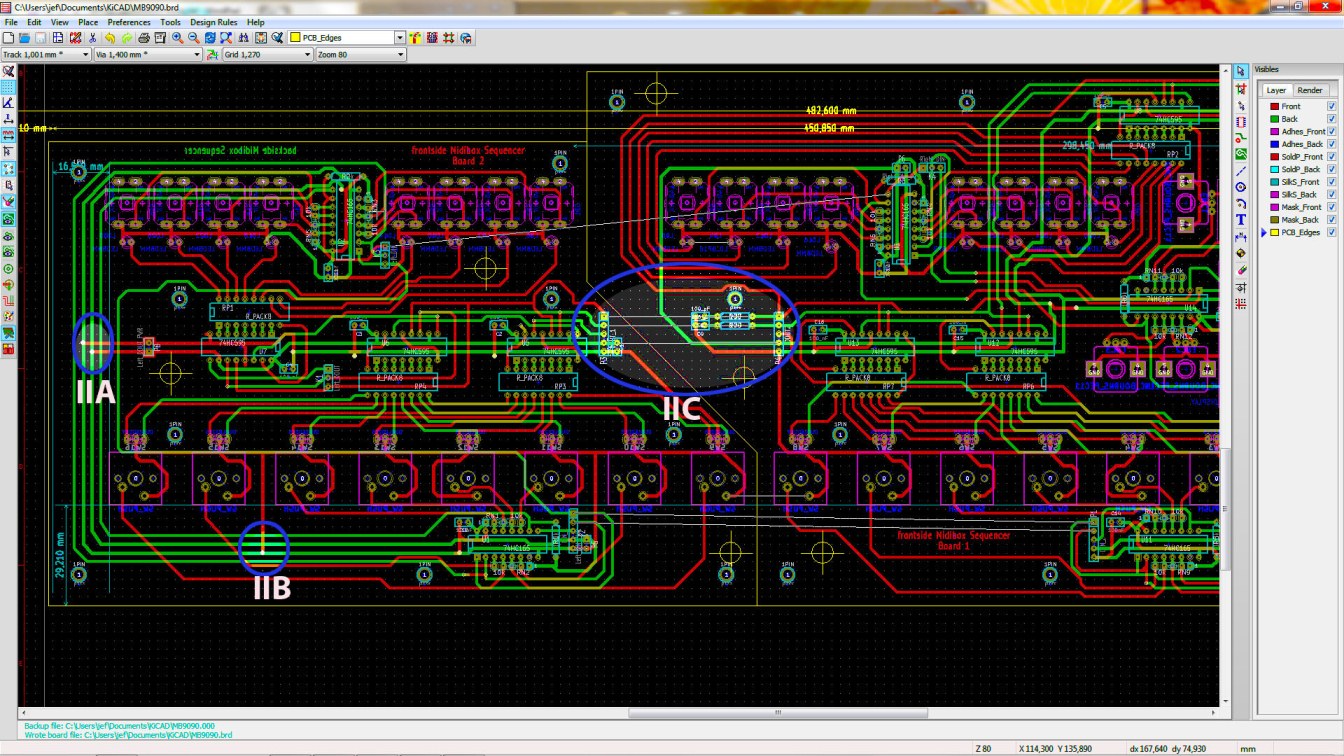

pcbatterij Posted October 26, 2011 Report Share Posted October 26, 2011 (edited) Could someone help me out with the questions below: MB9090 board1.jpg: IA: Is this the correct order to connect the encoders with the 74hc165 (see also the INPUT schematics)? MB9090 board2.jpg: IIA: Is it ok to interconnect Ground and power of the DIN and DOUT circuit like I did? IIB: same question as IIA IIC: this is a KiCAD question: I don't know how I can put in the schematic or the board that these are connected through the connectors and wires. I have put a different type of labels in the input schematic than the ones in the output schematic but the result is the same :sad: That's it for now folks :D Cheers JefMB9090 input v1.21.pdf Edited October 26, 2011 by pcbatterij Quote Link to comment Share on other sites More sharing options...
