MBHP_SIDFB Board


Sauraen

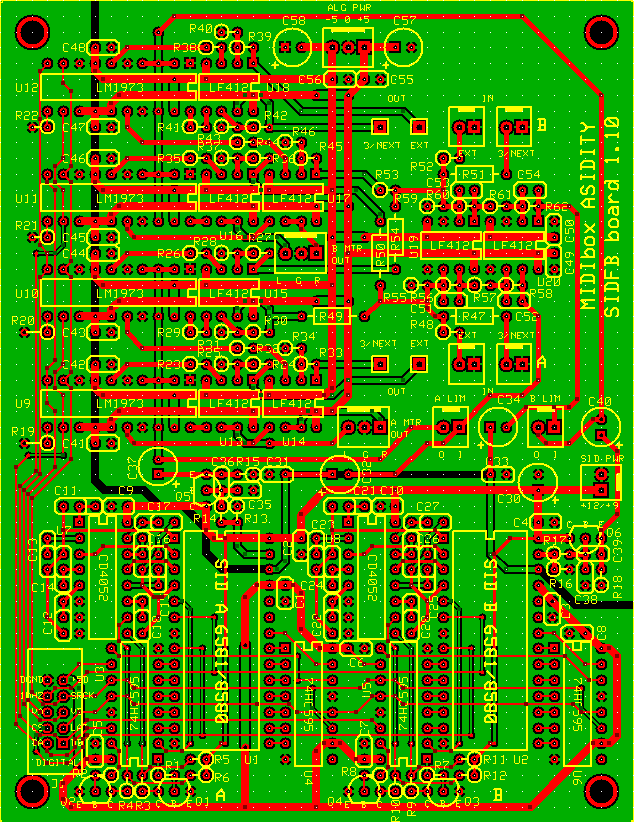

This is the final (ordered!) version of our design for the SIDFB module, containing two SIDs, six channels of digitally controlled feedback and audio outputs per SID, and a CD4052-based circuit to switch between four pairs of filter capacitors.
