MIDIbox FM V2.0 Prototype: Front panel circuit board design made in Front Panel Designer! Seriously!


Sauraen

I have a friend with a CNC mill who's willing to mill the front panel and front panel board for me at cost (i.e. I provide the aluminum, copper clad board, and pay him for the bits he goes through milling the copper clad board, heh heh). But I don't have a program that will let me design a circuit board for milling like this--so I did it in Front Panel Designer!

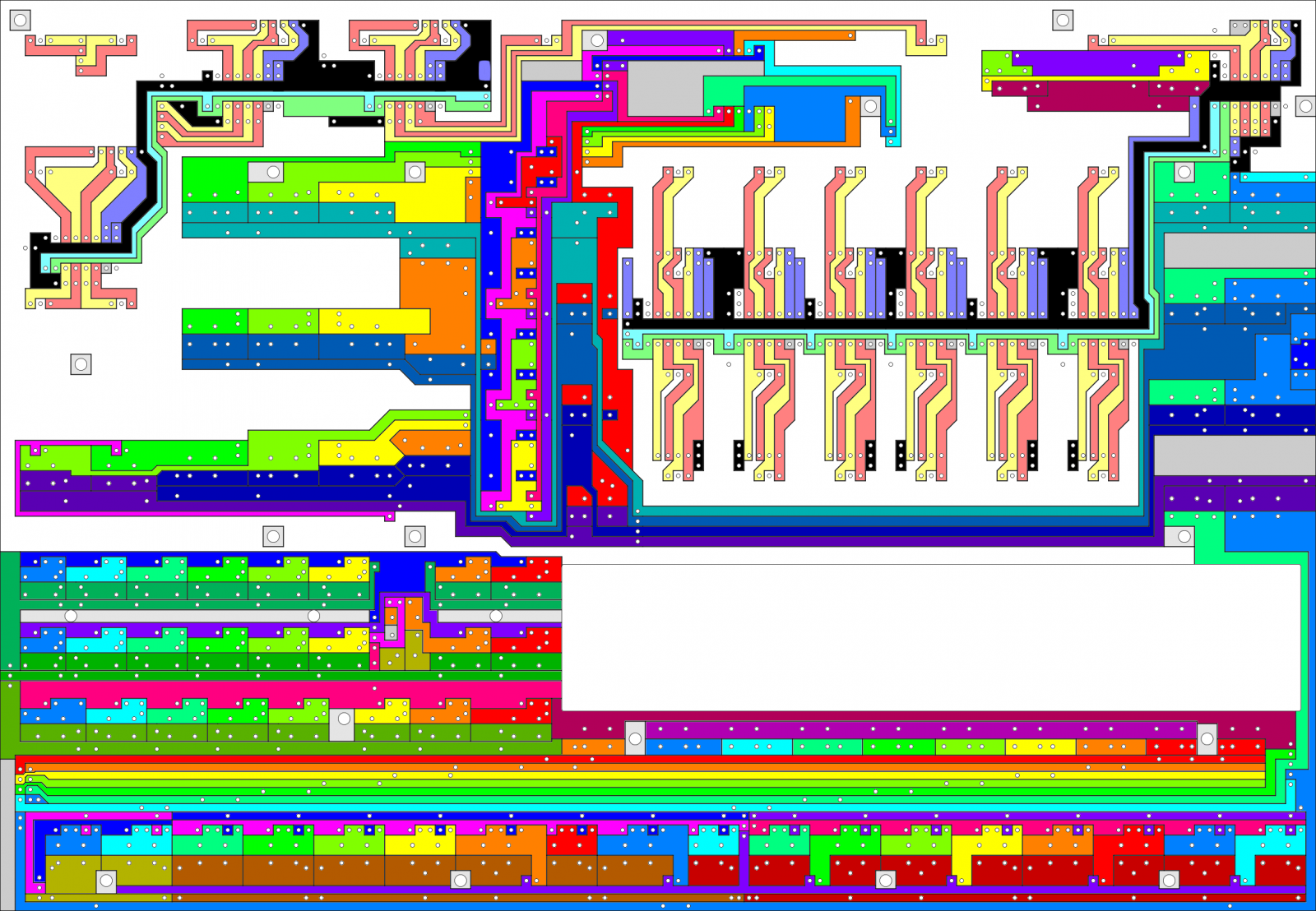

I put the image into an image-editing program and filled each of the "traces" with a different color according to their function, mostly to check for mistakes, and partly to help when writing the MBNG config files. But it also looks cool!

From the album:

MIDIbox FM V2.0 Prototype

· 23 images
  • 23 images
  • 0 comments
  • 7 image comments
