MIDIbox 2069 - PCB Proto

Antichambre

By Antichambre

 Share

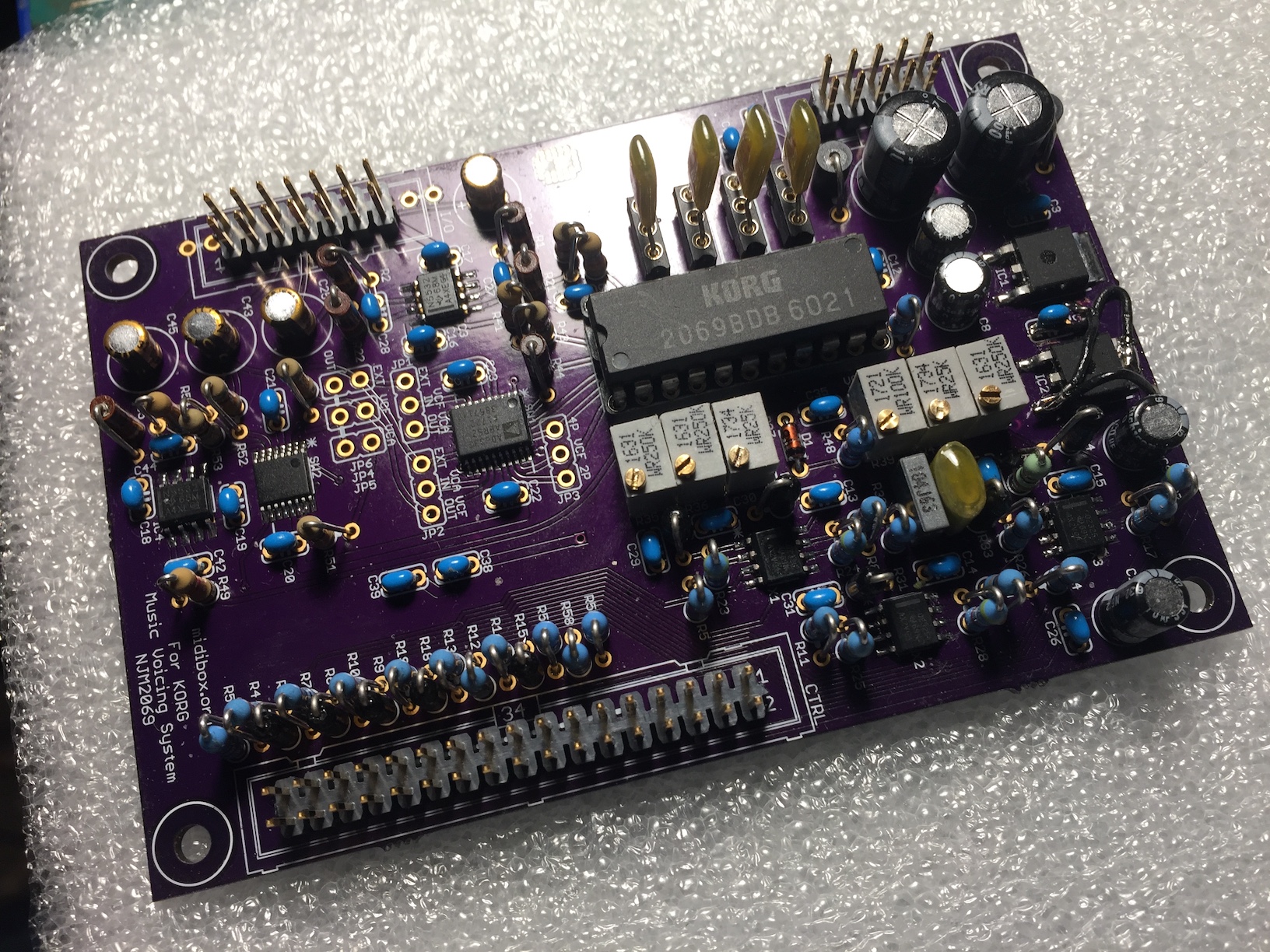

As you can see, there's an error on the 7905 regulator, wrong footprint.
This 2 large +/-5V regulators will maybe replaced by smaller package, need to measure current with front panel PCB before deciding...
