self-made Voronoi-CNC-milled PCB


bilderbuchi
 Share

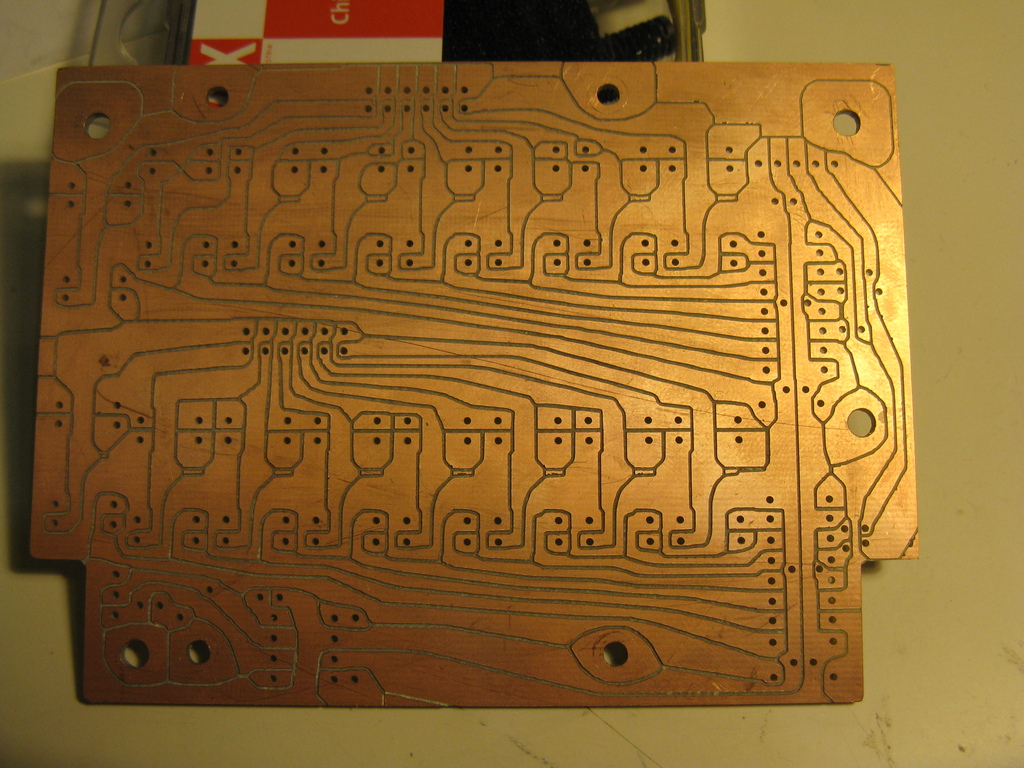

Board contains a half-stuffed DOut, the reed relays, and the CAN transceiver circuitry.

Big thanks to B.K. for help in designing and producing the board!

From the album:

bilderbuchi: SlideControl build log

  • 8 images
  • 0 comments
  • 2 image comments
