PaulBeaney

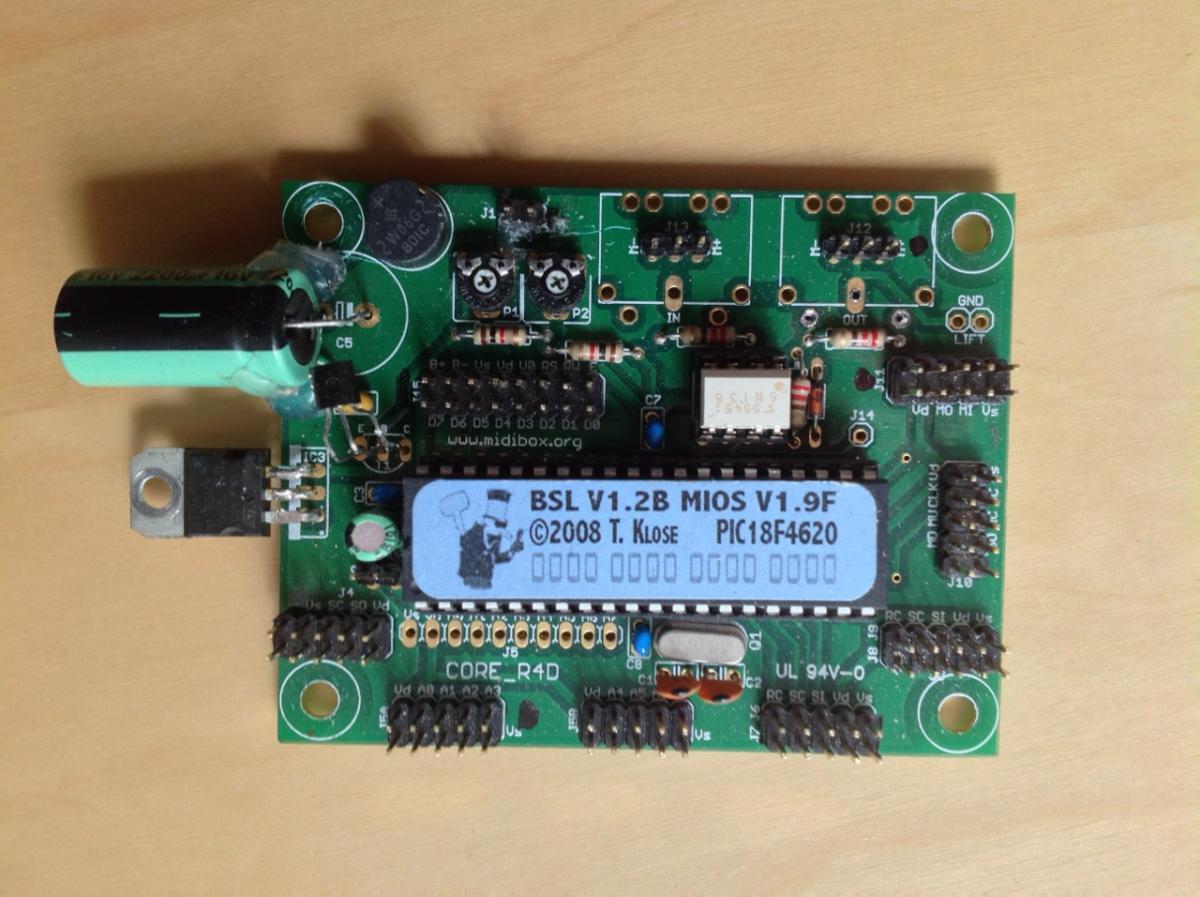

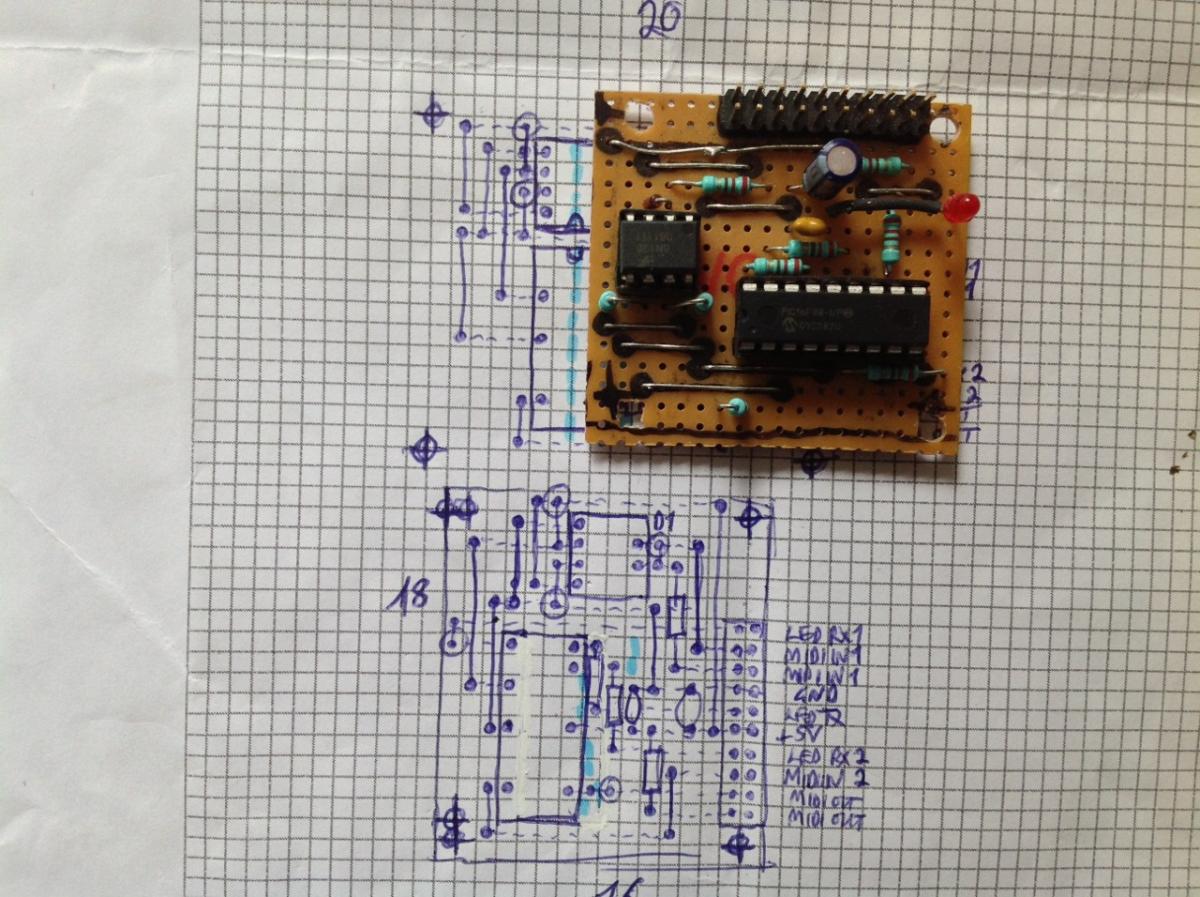

Having upgraded to a shiny new STM32F4 core, I have a PIC-based core going spare (18F4620), along with a veroboard MIDI merger (with layout diagram). Drop me a PM with an offer if you are interested! (Shipping from France)

Whilst I can now recover the board after a crash, I am still getting these "hard fault at PC=0x00000000" errors whenever I try and create an RTOS task. Running umm_info() before attempting to launch the task gives this: [24733.109] Dumping the umm_heap... [24733.109] |0x20000910|B 0|NB 0|PB 0|Z 0|NF 0|PF 0| [24733.110] |0x20000910|B 0|NB 0|PB 0|Z 2048|NF 0|PF 0| [24733.110] Total Entries 0 Used Entries 0 Free Entries 0 [24733.110] Total Blocks 2048 Used Blocks 0 Free Blocks 2048 [24733.110] Size of umm_heap is 24576 bytes, used: 0 bytes, free: 24576 bytes I have fiddled with the values of the stack size in the task creation and the only extra information I have been able to ascertain is that if I request too much memory, or none at all, then there is no crash (but nothing useful happens either), which seems to indicate that the crash is only happening when there *is* available memory. e.g. xTaskCreate(TASK_LED_Update, (signed portCHAR *)"LED", 4*1536, NULL, PRIORITY_TASK_LED_UPDATE, NULL); gives the error in MIOS Studio console: [25057.685] Can't allocate 2049 blocks at 305 Any ideas welcome!

Ah, just realised that I didn't actually need to make a first post - I've just this moment seen the bit on that page I linked to that mentions using the User and Reset buttons to force bootloader mode... and it works a treat!

Hi, Been a MIDIbox user for a few years now (thanks, TK!) but this is the first time I've not found my question already answered somewhere. Having been on MIOS8 for so long, I recently got an STM32F4 Discovery to start work on replacing my existing board. It was all going really well until I tried add an RTOS task with (I presume) not enough stack memory allocated, resulting in a "hard fault at PC=0x00000000". I've amended my code to allocate a bigger stack, but now I seem to have no way to upload any more. The error condition occurs very soon after bootup (in App_Init()), but using the reset button on the Discovery board doesn't seem to trigger an upload request - MIOS Studio doesn't respond in any case. I'm guessing my config must have fastboot turned on. I found a mention of the "BSL Hold" jumper here http://www.ucapps.de/mios32_bootstrap_newbies.html, but that seems to be for the LPC17 board only. Is there any equivalent on the Discovery?? Hoping someone can help! Regards, - Paul
