Blixman

SOLD

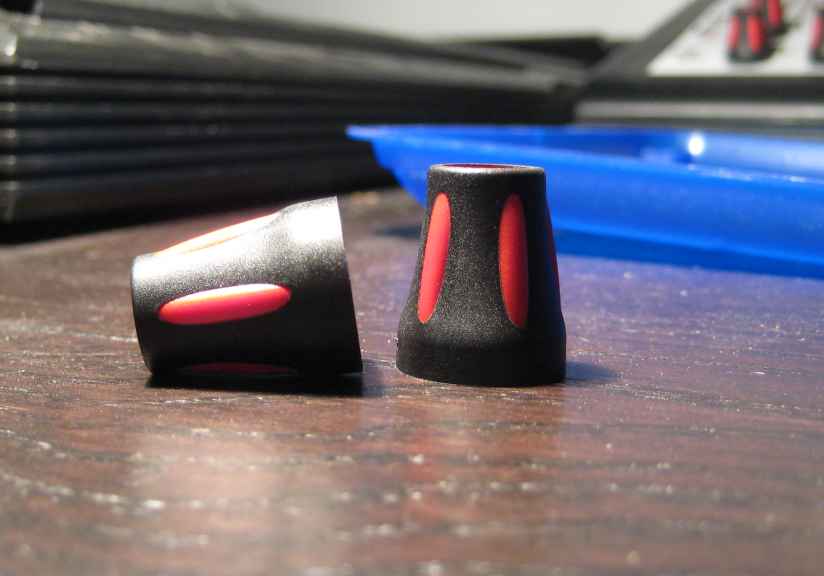

Hi, no, they're not transparent. Here is a picture.

Hello everyone, I'd like to sell 30 "Waldorf" knobs for 30€ or 15 knobs for 15€. Shipping is not included. It's the following type: 863120 Drehknopf DK16-190V3 A.6/4,5 AT=14 schwarz soft-rot 3092 If someones interested write me a PN. Blixman

Hi, who's editing the builders list (serial number list) for the MB6582? Blixman

You can use the "64 pin LQFP Adapter" on the Futurelec site. There's the needed pitch i think. blix

...but remind: beware of the right pitch... isn't the "8pinpitchthing" a little bit too much away from 0.5mm? blix

Hello, maybe you could use something like this and cut it down to the size you need: TSSOP-SMD Multiadapter @ Reichelt ...but i see it's a little bit expensive. Otherwise try to find a PCB with nearly the same pitch from a broken radio, laptop, etc... blix

@ilmenator: Thanks alot. I took the fpg file and transfered it manually to dxf with corel draw. I just painted everything new. With this dxf file a friend of mine milled the frontpanel on his engraving machine. This was much cheaper than paying for the "commercial" made frontpanel. The rearpanel is made by myself from the same material used for the front.

Hi, sorry for the big pictures w/ poor quality. First post with attachments, so the next time the pics will be a little smaler. :) Or maybe next time i would post even bigger pictures.... ;) The panel isn't from Schaeffer, it's done on an engraving milling machine. I'm not sure to change the knobs from red/black to white/black, i'm still searching.... BTW i've got some spare red/black knobs here. If there is someone out there who needs some for his MBSID or something else...maybe close by my home? The display also needs to be changed but haven't decided which color. Also thought bw or red/black whould be nice. The rearpanel isn't fully packed w/ all the pots and so on, so still some work to do. Blix

Hy everybody. I nearly fineshed my MB-6582. :D Maybe someone like to see the pictures.
