MIOS-Studio says: Your creation is up and running Uploaded the MIDIO 128 succesfully Uploaded the 64E application succesfully I checked the connections Putting power on and off make no difference. As soon as I press a button it gives me b-messages again.. As soon as I make a connection for a button I get A LOT of MIDI messages all like this: See picture I read the whole ucapps webpage my head is exactly like the midimessages b0 e4 f0 b4 4a 4f As far as I understand the MIDIO128 tool is a way of checking your DIN, apparently it is not working;) What am I overseeing??

bump

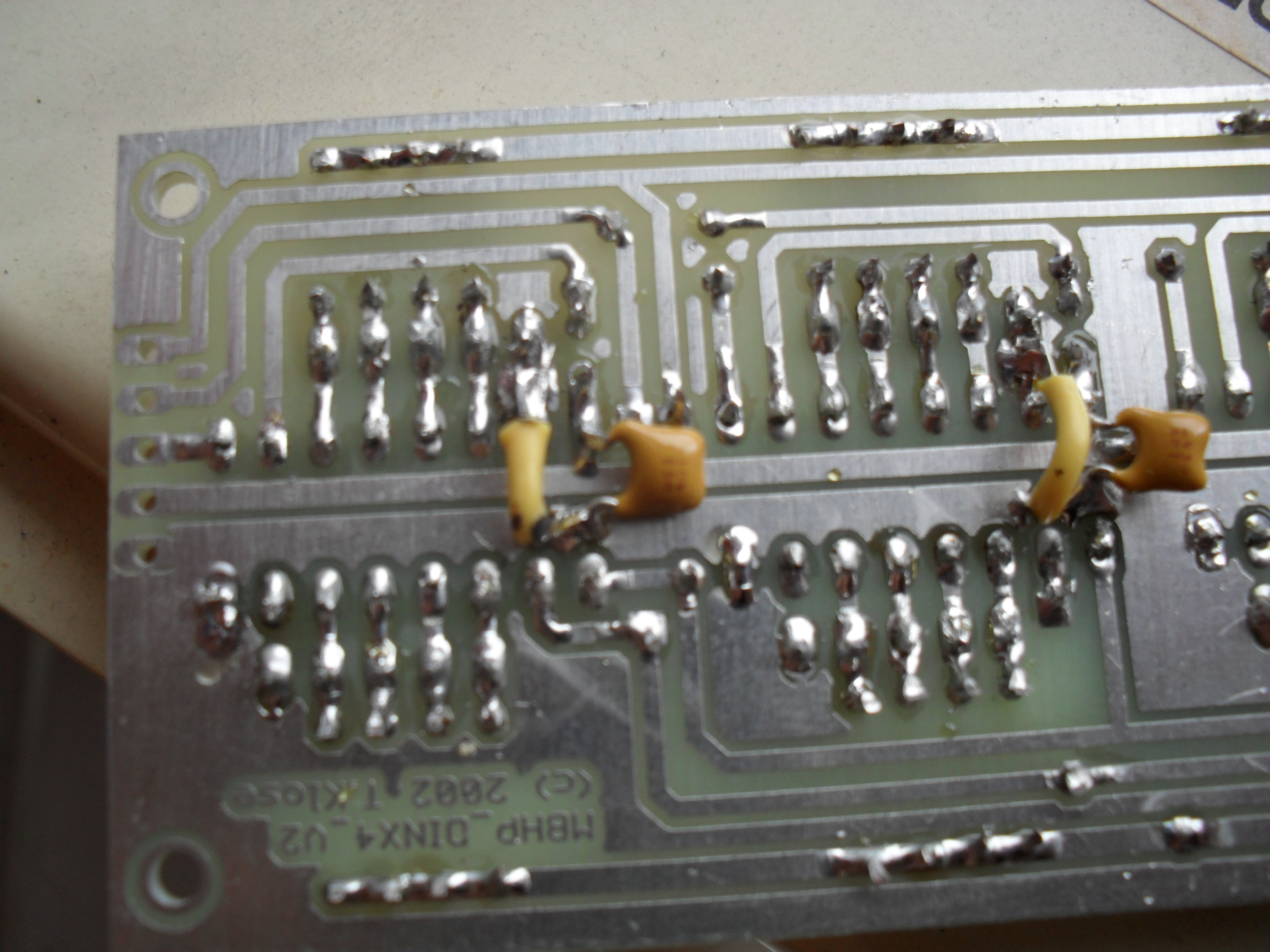

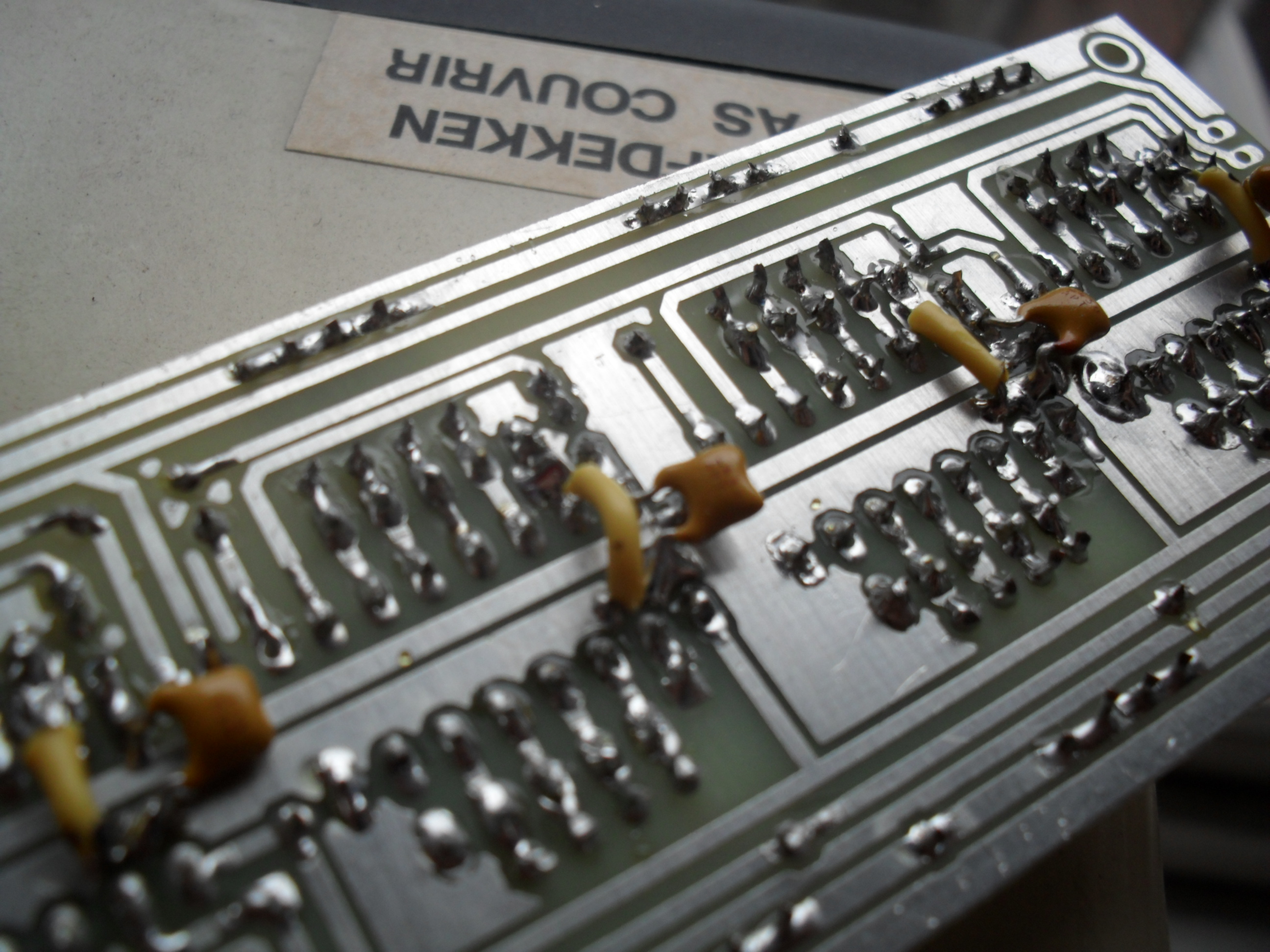

Here I soldered them all the same Can you tell me if this is correct?

Version 2 DINX4 From Mikes Midizeite There is like a landingstrip/surface soldering on the back, I attached the jumperwires on those But if somebody has a picture it will clear up my mind, Ill take pictures in a minute

Hello, Quick question: I can't figure out how to assemble the back of the DIN4X... Suppose to add 4 jumper wires and 4 caps but the pictures in the tutorial are too shady and Im too much a noob to do it without. Does anyone have a picture of the back of a DIN4X? If it can help I can upload a picture of my attempt, maybe somebody can point out where I went wrong KEEP YOUR SOlDERING IRON HOT! =)
