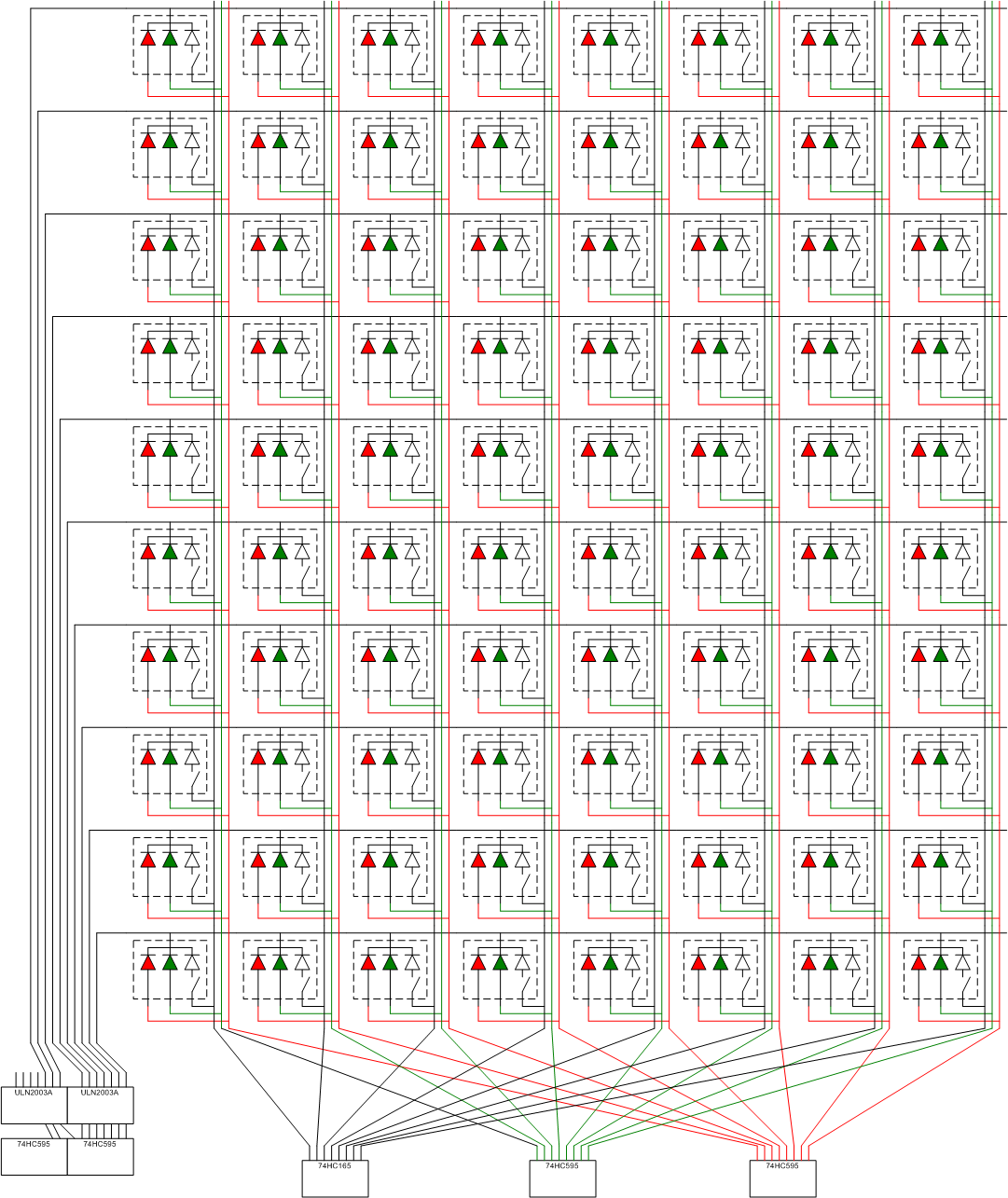

spongebob Posted January 27, 2010 Report Share Posted January 27, 2010 My new midibox-based project need duo-led+button 8x10 matrix. In attached file scheme of matrix. This scheme is correct? The minimum elements is necessary. Quote Link to comment Share on other sites More sharing options...
Wilba Posted January 27, 2010 Report Share Posted January 27, 2010 I would advise not to use ULN2003A (i.e. darlington transistor array). When these are fully sinking current, the voltage at the collector (i.e. collector-emitter voltage) when fully saturated MAY BE higher than the logic level low voltage of the 74HC165. This is why I used discrete BC547 transistors in the MB-6582 - 1K resistor between output pin and BC547 base, collector to common cathode "row", emitter to ground. Quote Link to comment Share on other sites More sharing options...
spongebob Posted January 29, 2010 Author Report Share Posted January 29, 2010 (edited) Here my main.c, it is compiled without errors. This code is correct? I wish to know it before PCB creation. I badly understand a principle of operation of function SR_Service_Prepare. P.S. I have project in Proteus, but i don't know how to load MIOS+application in virtual PIC.main.c Edited January 29, 2010 by spongebob Quote Link to comment Share on other sites More sharing options...
