7 + 7 Channel Stereo Mixer

January 26, 2012
1,329 views
View albpower2seq4sid's images

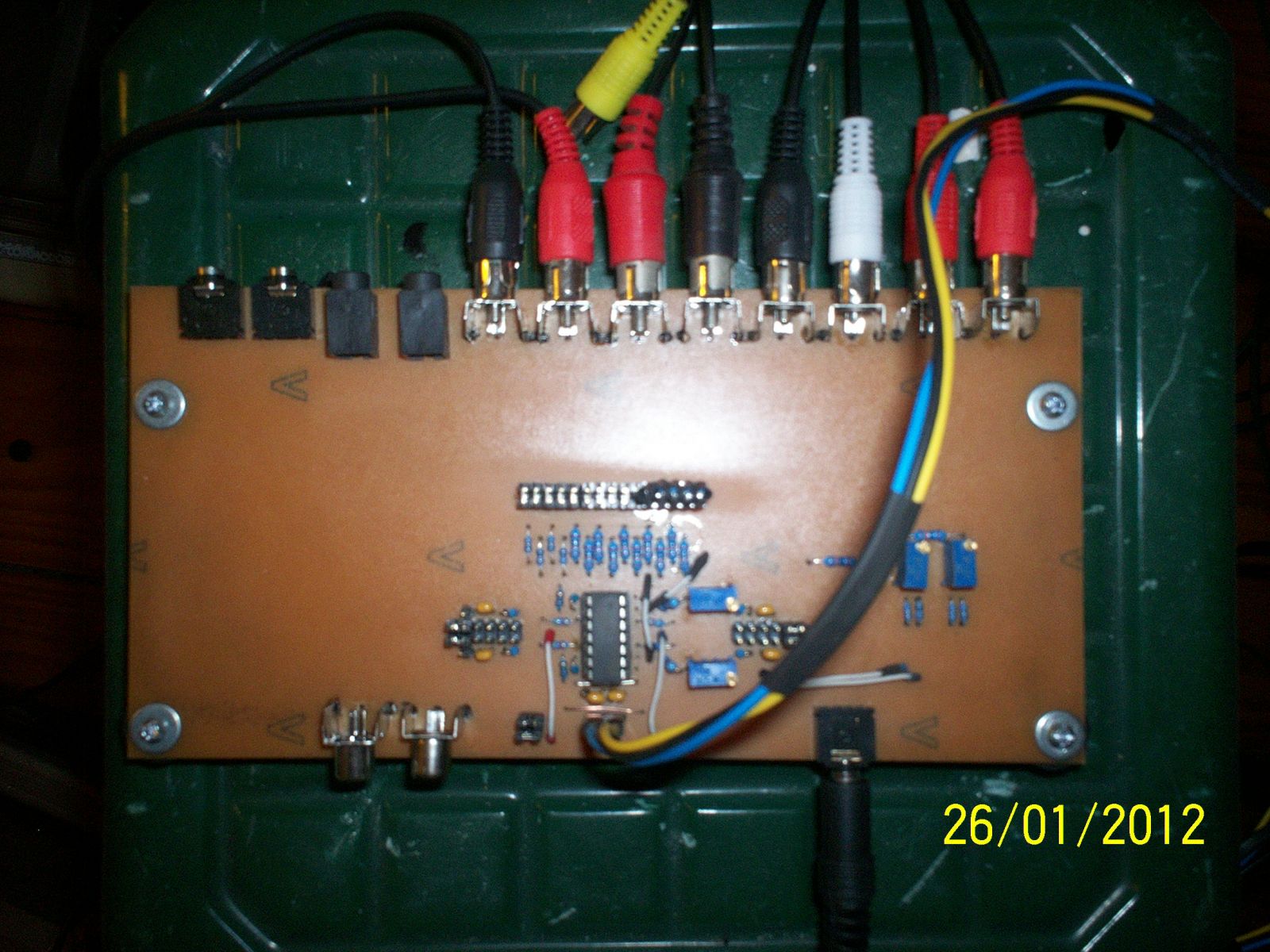

This is a mixer based on TL084 Quad OP-AMP, Hand made PCB. I needed this to mix SID, FM, 2 Analog Synths and other devices. The output of the mixer was connected to a PC line in input and record sounds track with audacity software
