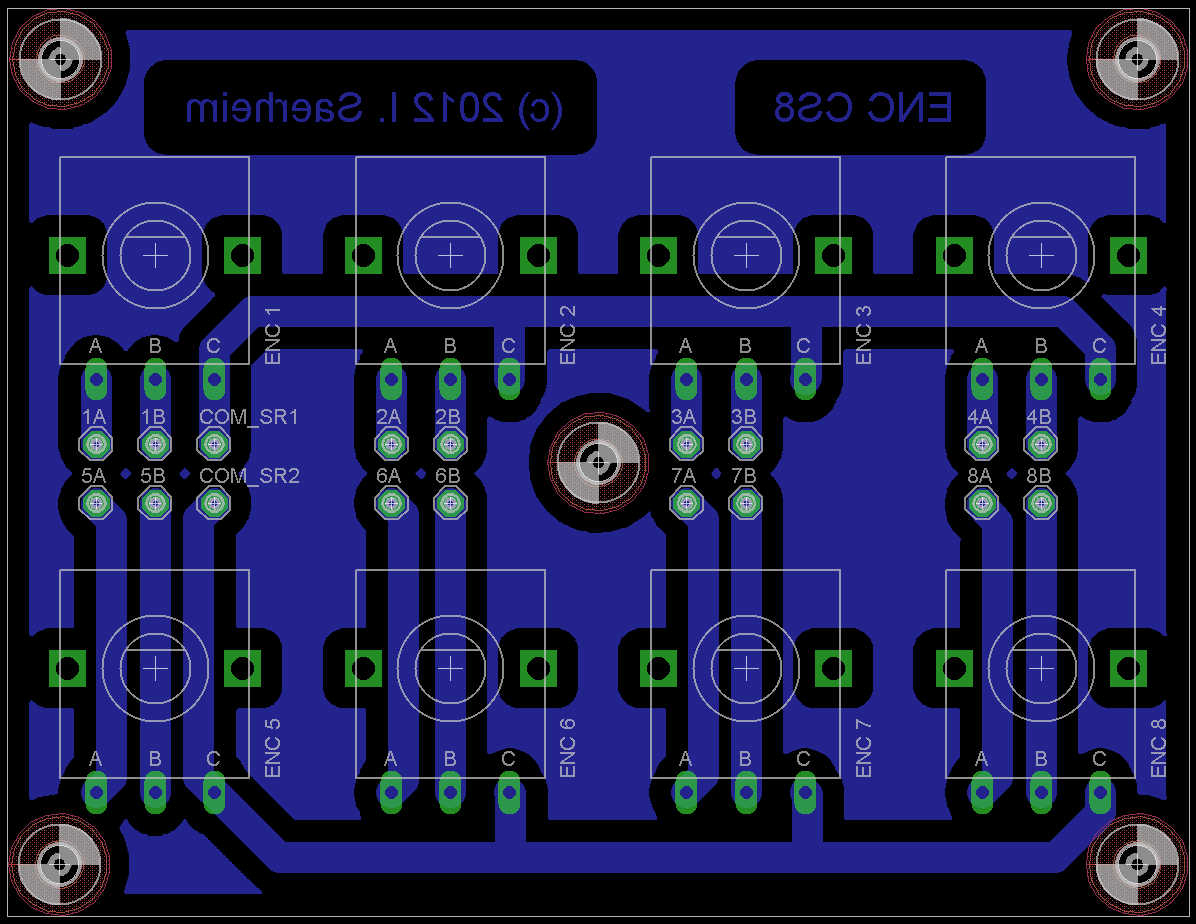

A very simple board with 8 encoders. Is supposed to be fitted on the frontpanel of my MB64E. I have some waldorf knobs with this destination.
