AVR-Synthesizer "WAVE 1"

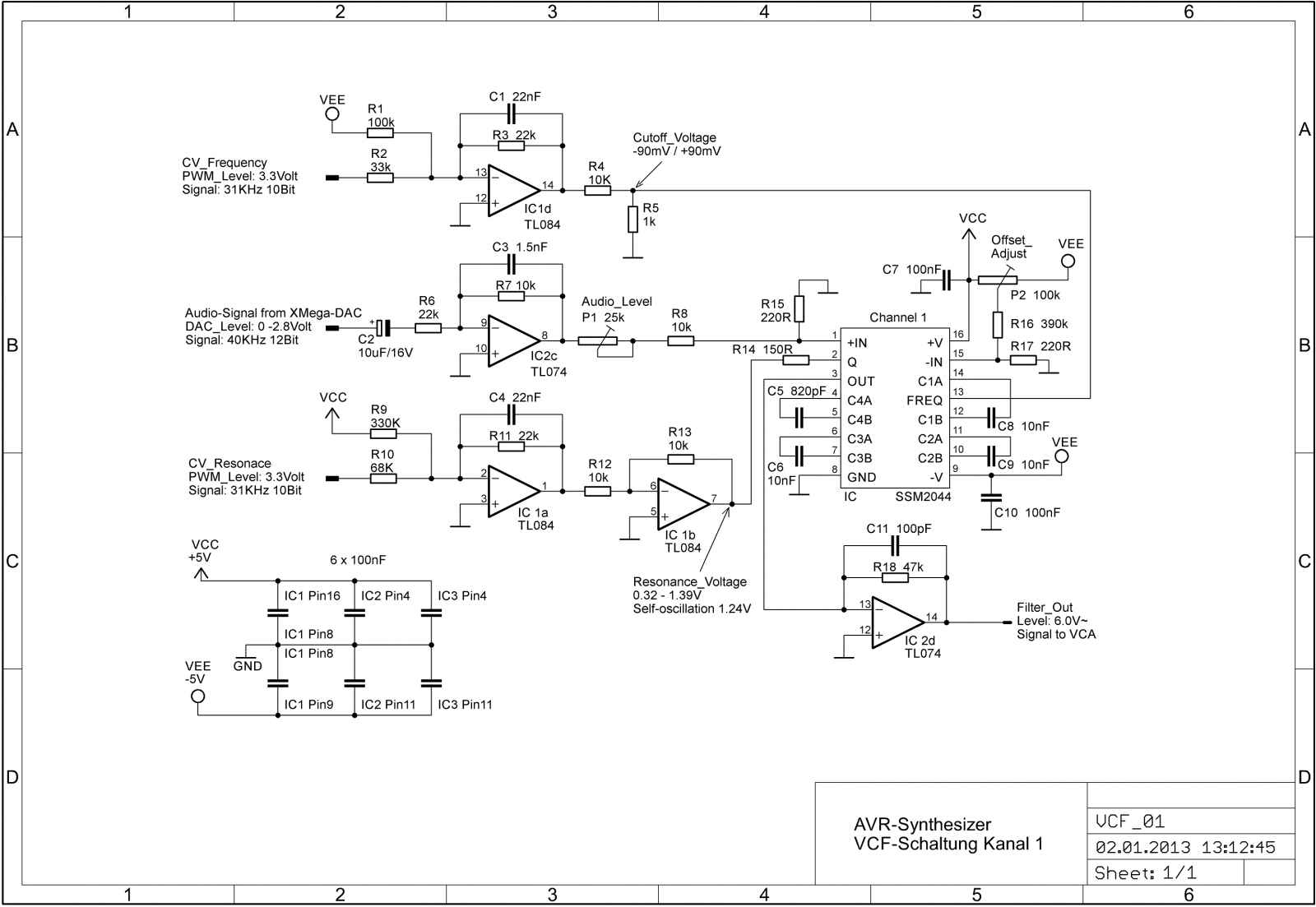

VCF-circuit

From the category:

Schematics and PCBs

· 187 images
  • 187 images
  • 52 image comments

Photo Information

View photo EXIF information
 Share

Recommended Comments

rolfdegen

rolfdegen 24

Posted

The cap list is not right!



The cap on IC3 is delete. The cap on IC1 is not Pin16/Pin8/Pin9. The cap on IC1 is Pin4 and Pin11. Sorry...



See new pic:



Greetings Rolf
