MB Stereo SID
By Schrabikus
- 1,222 views
- View Schrabikus's images

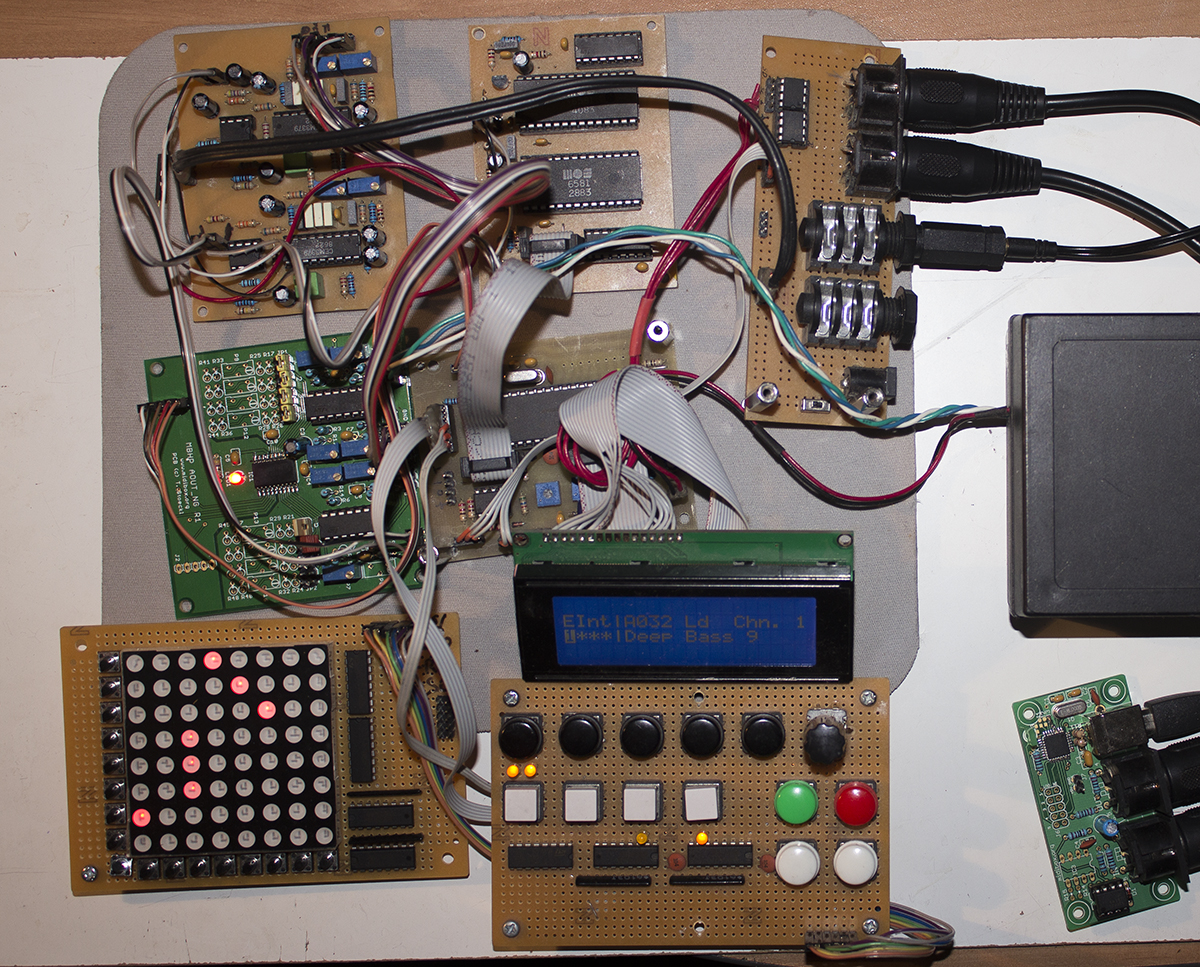

Finally it works!
2xMOS6581 -> 2xCEM3379 VCF/VCA (CV range 0-5V for Cutoff/Resonance/Gain)
modified AOUT_NG to output 0-5V from 12V bipolar supply.
perfoboarded CS and modulation matrix with cheap 8x8 led matrix from ebay.
