Motorfader PCB just for wiring purposes

GMAprogrammer

By GMAprogrammer

 Share

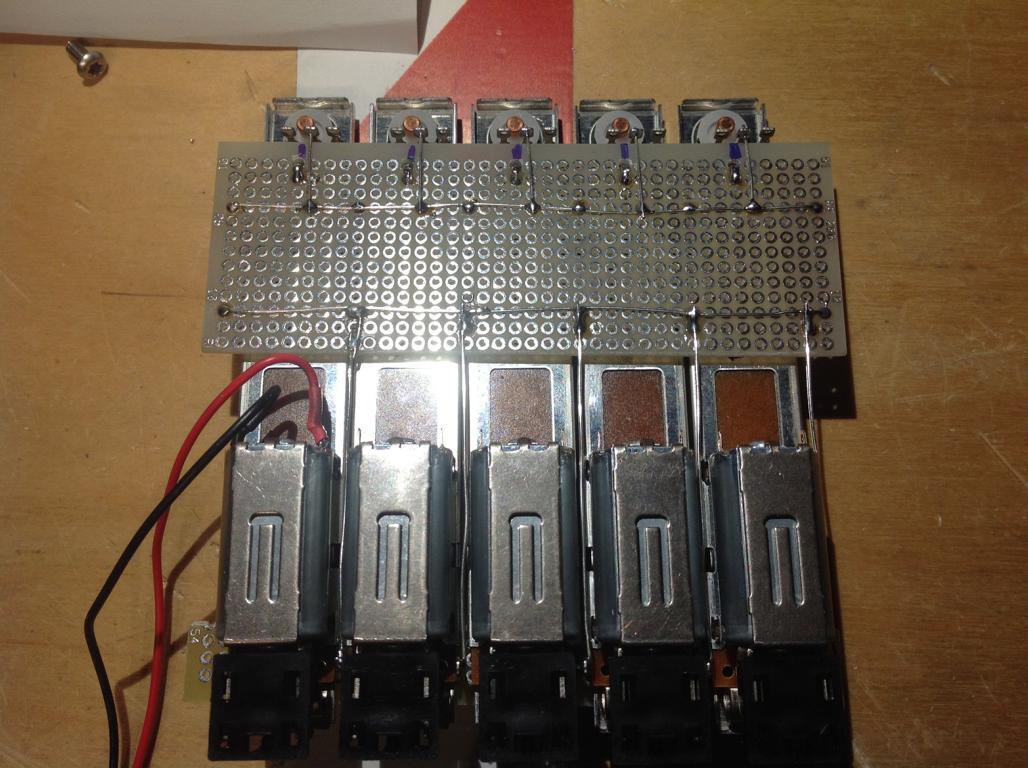

This is a small PCB i designed for the Motorfaders to provie me GND and VSS for each fader its just for better wiring not for stability

From the album:

GMAprogrammer: MA4PC a Midi Lighting Controller
