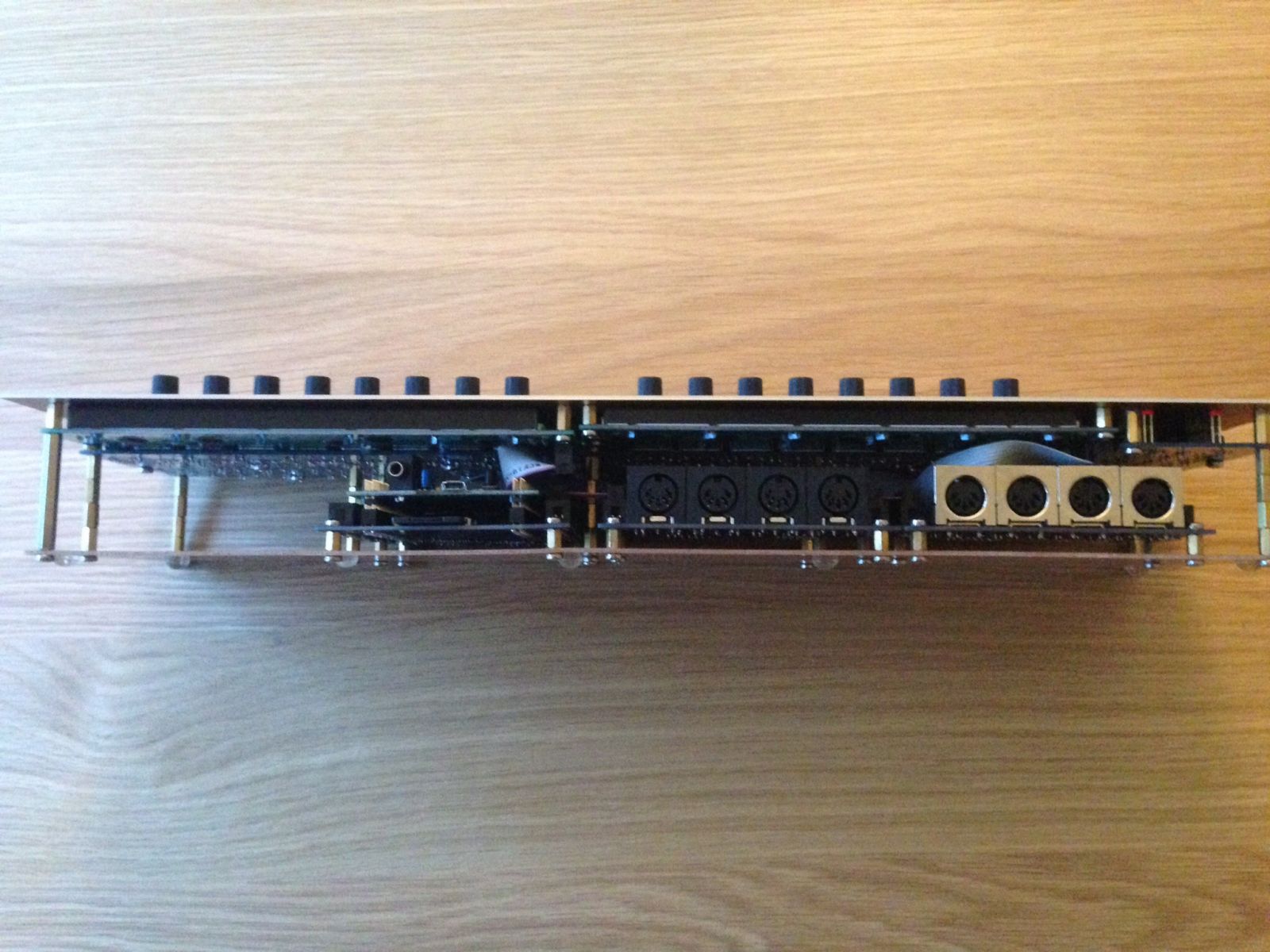

Core and 2 x MIDI I/O mounted - Back

Rowan

By Rowan

 Share

I mounted the STM32F4 core and 2 x MIDI I/O on a sheet of vero board today. Luckily there is still plenty of space left free for other modules and internal PSU in the future.

From the album:

Rowan - MBSEQ V4
