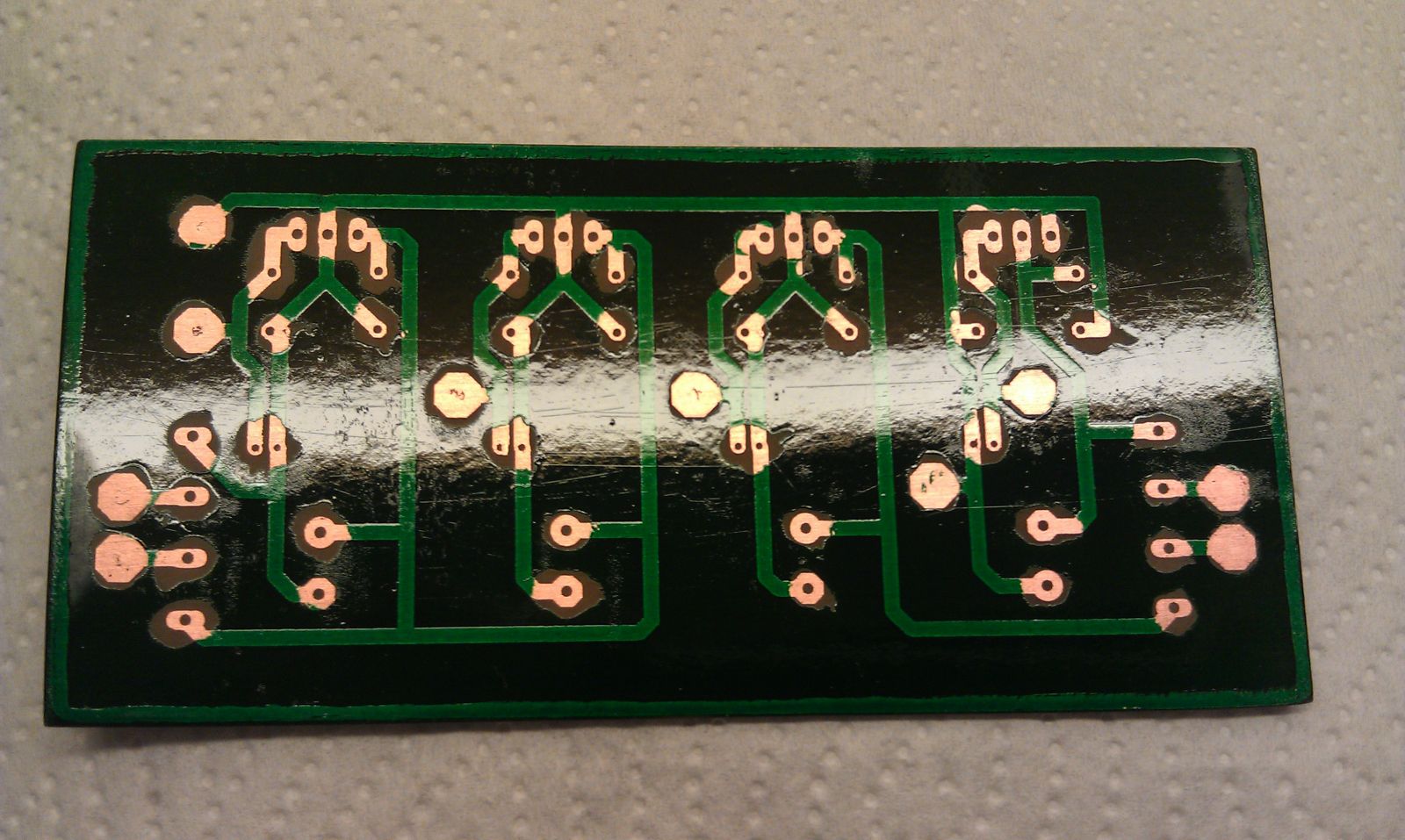

PSU board Closeup

September 26, 2011
813 views
View technobreath's images

OK. Second of these board I etched. The first one was kinda dirty, soldermask didn't look good etc - in short - it worked very good, but I didn't like it :P...&amp;lt;br /&amp;gt;&amp;lt;br /&amp;gt;The other picture will explain how I did the soldermask.
