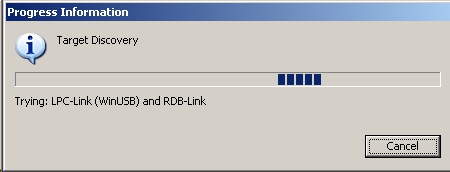

lemonhorse Posted July 17, 2012 Report Share Posted July 17, 2012 (edited) Hi * Got a problem with installing the MIOS32 Bootloader. I'm not sure if there is a USB problem. I changed the USB cable. No difference. I changed the XP Workstation - same result. Found this: http://support.code-red-tech.com/CodeRedWiki/LPCLinkDiagnostics Here is the dfuapp.log output: ***************************************************** *** DFU LOG FILE *** Creation Time : dfuapp.log ***************************************************** Open Device Get Device Descriptor successful Get Configuration Descriptor successful DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is operating in the DFU mode and is waiting for requests. Device Descriptor bLength: 0x12 bDescriptorType: 0x01 bcdUSB: 0x0200 bDeviceClass: 0x00 bDeviceSubClass: 0x00 bDeviceProtocol: 0x00 bMaxPacketSize0: 0x40 idVendor: 0x0471 idProduct: 0xdf55 bcdDevice: 0x0001 iManufacturer: 0x00 iProduct: 0x00 iSerialNumber: 0x00 bNumConfigurations: 0x01 DFU Get State successful ---> DFUState: Device is operating in the DFU mode and is waiting for requests. Download Block Nb 0 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 1 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 2 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 3 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 4 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 5 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 6 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 7 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 8 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 9 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 10 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 11 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 12 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 13 (2048 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 14 (1544 Bytes) DFU Get State successful ---> DFUState: Device has received a block and is waiting for the host to solicit the status via DFU_GETSTATUS. DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device is processing a download operation. Expecting DFU_DNLOAD requests. Download Block Nb 15 (0 Bytes) DFU Get State successful ---> DFUState: Device has received the final block of firmware from the host and is waiting for receipt of DFU_GETSTATUS to begin the Manifestation phase; or device has completed the Manifestation phase and is waiting for receipt of DFU_GETSTATUS. (Devices that can enter this state after the Manifestation phase set bmAttributes bit bitManifestationTolerant to 1.) DFU Get Status successful ---> DFUStatus: No error condition present. ---> DFUState: Device has programmed its memories and is waiting for a USB reset or a power on reset. (Devices that must enter this state clear bitManifestationTolerant to 0.) Device Reset after Download successful *** END OF FILE *** Any Ideas? - Contemplating Lemonhorse Annotation: LED2 is always blinking - and it's my first LPCXpresso ;-) Edited July 23, 2012 by lemonhorse Quote Link to comment Share on other sites More sharing options...
taximan Posted July 18, 2012 Report Share Posted July 18, 2012 Are you using the lpc expresso software from the guys that make the chip? cheers Paul Quote Link to comment Share on other sites More sharing options...
lemonhorse Posted July 18, 2012 Author Report Share Posted July 18, 2012 I do use LPCXpresso 4.2.3.201205301041 (Code Red Technologies) Quote Link to comment Share on other sites More sharing options...
TK. Posted July 18, 2012 Report Share Posted July 18, 2012 Did you already plug the LPCXPRESSO into the MBHP_CORE_LPC17 module? This isn't required and can cause such issues if you don't follow my guide 100% Most simple way: unplug the module, it will (resp. should) be powered via the LPC-Link USB port anyhow during programming. Best Regards, Thorsten. Quote Link to comment Share on other sites More sharing options...
lemonhorse Posted July 19, 2012 Author Report Share Posted July 19, 2012 (edited) Did you already plug the LPCXPRESSO into the MBHP_CORE_LPC17 module? Ahoi TK! No, I only used the plain LCPXpresso board and followed Your guide [installing the MIOS32 Bootloader @ http://ucapps.de/mbhp_core_lpc17.html ]. Edited July 19, 2012 by lemonhorse Quote Link to comment Share on other sites More sharing options...
TK. Posted July 22, 2012 Report Share Posted July 22, 2012 Very strange... do you have access to another computer? Best Regards, Thorsten. Quote Link to comment Share on other sites More sharing options...
lemonhorse Posted July 22, 2012 Author Report Share Posted July 22, 2012 do you have access to another computer? Yes, will try it on another Computer. If it fails again, I will send the LPCXpresso board to someone who was already successful. So I can exclude HW problems. I will post the results here. Quote Link to comment Share on other sites More sharing options...
lemonhorse Posted July 23, 2012 Author Report Share Posted July 23, 2012 Solved the Problem. Solution: VMware Player (4.0.4), Suse Linux 12.1 (32bit, with KDE) and LPCXpresso v4.2.3 It worked on the same (!) Host Computer (XP SP3 32bit). :) Quote Link to comment Share on other sites More sharing options...
lemonhorse Posted July 23, 2012 Author Report Share Posted July 23, 2012 (edited) Now the LPCXpresso LED2 is blinking 3 times (the last state = on). Edited July 23, 2012 by lemonhorse Quote Link to comment Share on other sites More sharing options...
