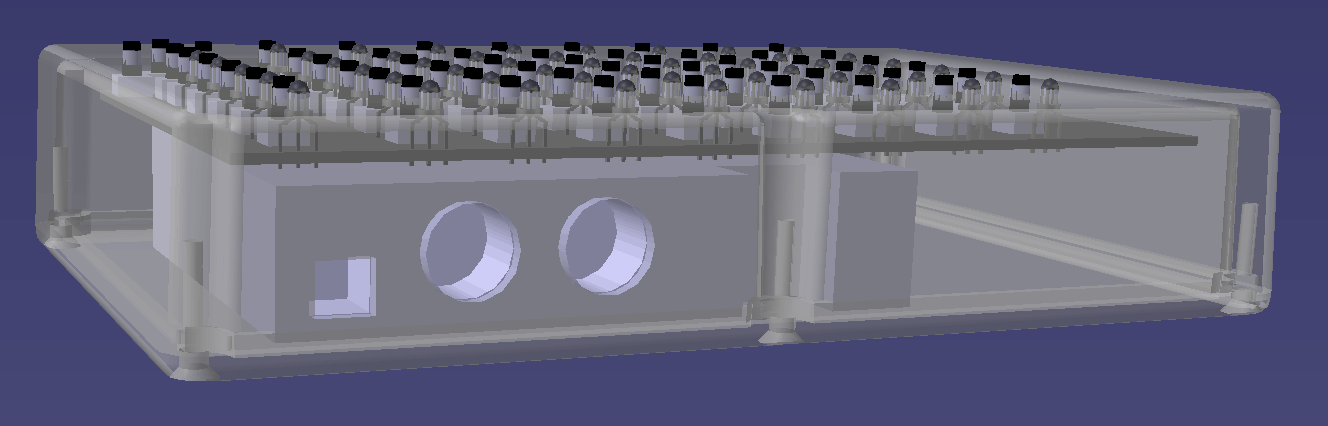

the design is going to be a tight fit. i need to add much more detail to the core32 pcb (right now it's just a block, representing the height of the midi sockets) and the control surface pcb (which now needs a complete redesign) to see how it all fits together. at 7.38" x 4.70" x 1.30" (188mm x 119.5mm x 33mm), this is going to be a tiny little clip controller.
