tight fit!

ultra

By ultra

 Share

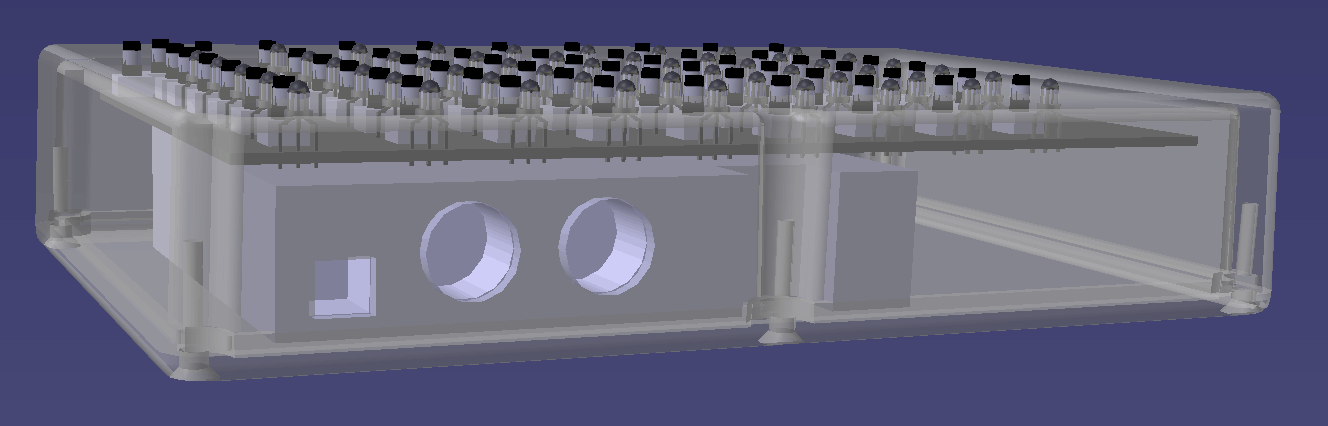

the design is going to be a tight fit. i need to add much more detail to the core32 pcb (right now it's just a block, representing the height of the midi sockets) and the control surface pcb (which now needs a complete redesign) to see how it all fits together. at 7.38" x 4.70" x 1.30" (188mm x 119.5mm x 33mm), this is going to be a tiny little clip controller.

From the album:

MIDIbox Live

· 11 images
  • 11 images
  • 0 comments
  • 25 image comments
 Share

Recommended Comments

ultra

ultra 0

Posted

and it's metal!!!!!!!!!!!

lucem

lucem 1

Posted

Hm, where's the second MIDI pair in that?

ultra

ultra 0

Posted

lucem i left them out b/c i don't see a reason for them.
