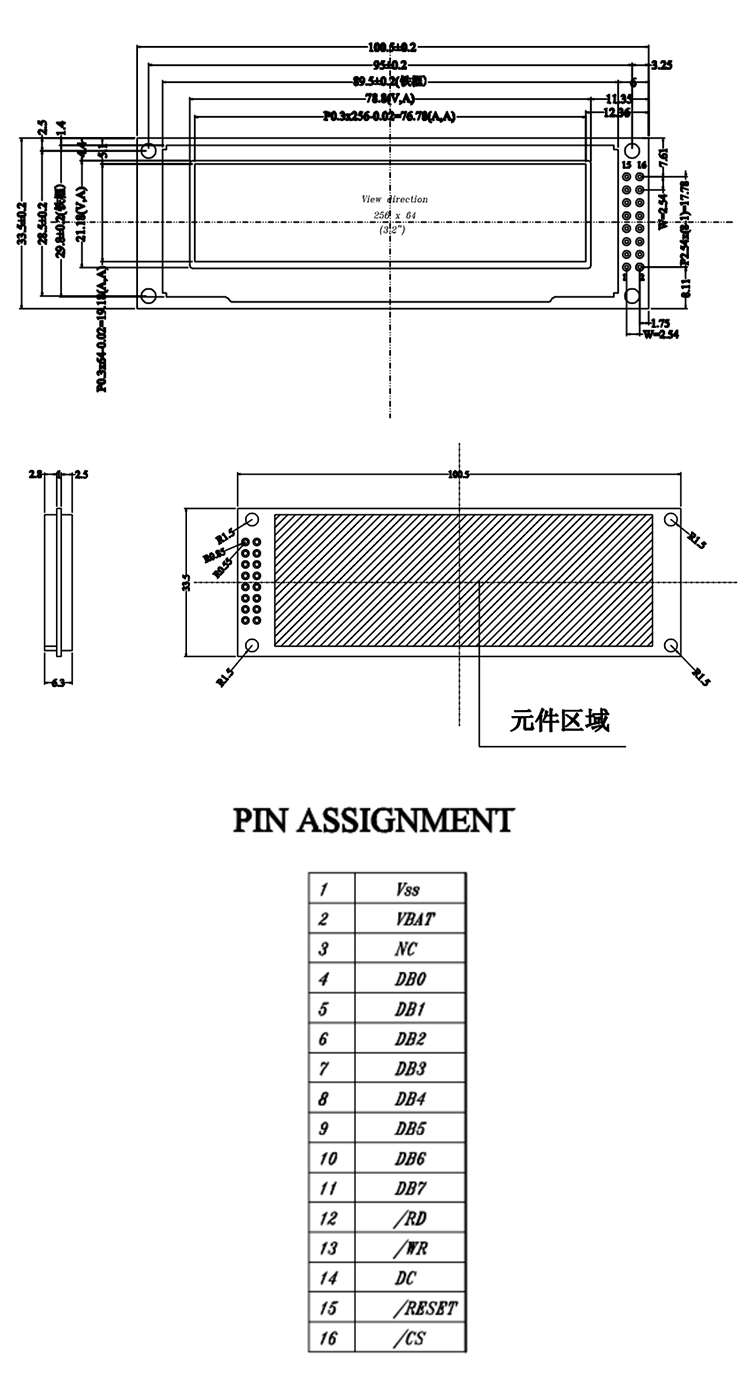

ksir Posted October 25, 2023 Report Share Posted October 25, 2023 Hello, I have a tw56640320b03 screen, is it possible to make it work with midibox ng? THANKS https://s.alicdn.com/@sc01/kf/HTB19t6LcXkoBKNjSZFkq6z4tFXa3/232025343/HTB19t6LcXkoBKNjSZFkq6z4tFXa3.jpg Quote Link to comment Share on other sites More sharing options...
TK. Posted October 26, 2023 Report Share Posted October 26, 2023 Yes, this one should work Here the interconnections: http://www.midibox.org/dokuwiki/lib/exe/fetch.php?media=neonking:ssd1322-pinout.jpg In order to select the display in MIOS32, upload the Bootloader Update Application and enter: set lcd_type GLCD_SSD1322 set lcd_num_x 1 set lcd_num_y 1 set lcd_width 256 set lcd_height 64 store Thereafter upload the MIDIbox NG application again -> display should show some meaningful messages Best Regards, Thorsten. Quote Link to comment Share on other sites More sharing options...
ksir Posted October 28, 2023 Author Report Share Posted October 28, 2023 (edited) THANKS . I don't understand the interconnection diagram clearly. My screen has 16 pins not 20 pins and the name of the pins on the seller's diagram does not correspond. hence my confusion ( https://fr.aliexpress.com/item/32414142892.html?gatewayAdapt=glo2fra ) I just tried to match : it's ok ? i can't fide GLCD_SSD1322 Edited October 28, 2023 by ksir Quote Link to comment Share on other sites More sharing options...
TK. Posted October 28, 2023 Report Share Posted October 28, 2023 Ok, I've to admit that I haven't checked the current state of the driver before my reply Unfortunately it isn't available - last posting about this activity was more than 10 years ago: I fear that nobody can help you to get it running :-( Best Regards, Thorsten. Quote Link to comment Share on other sites More sharing options...
