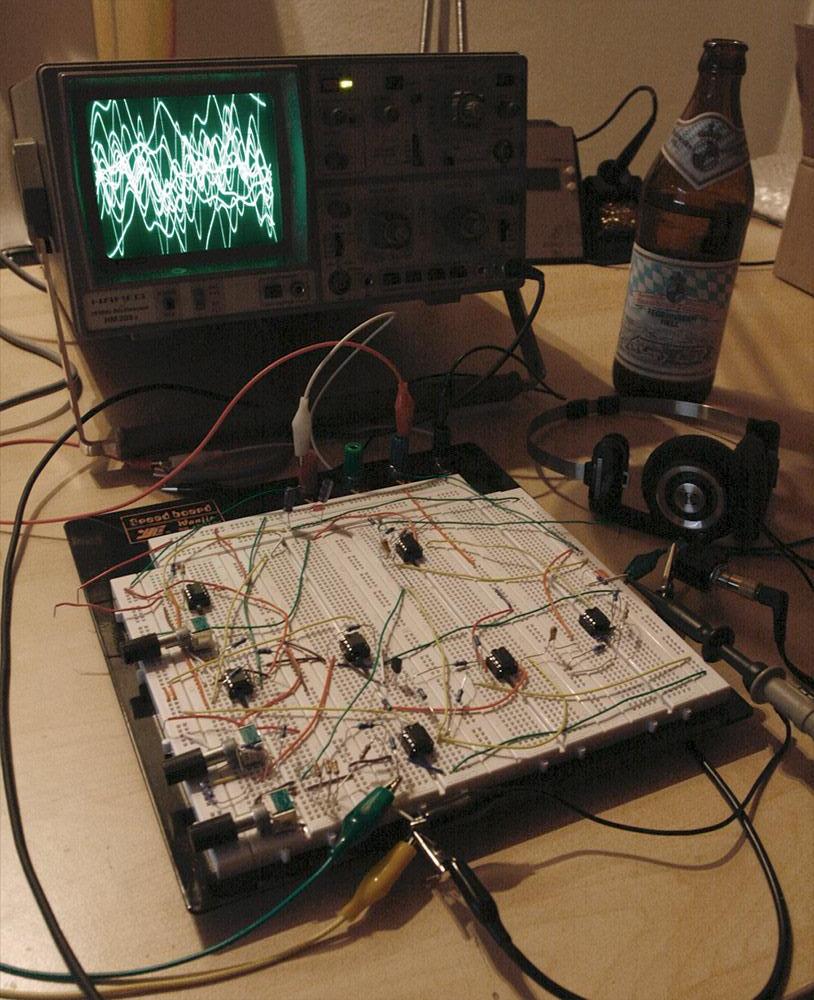

Breadboarded the "Bareille" Polivox clone and just did a test! Works nicely and does some very civilized filtering, when the resonance turned down, becomes a screaming beast when resonance turned up... Still to test: frequency modulation of the filter, have to connect a lfo voltage source and see what happens <img src="http://midibox.org/forums/public/style_emoticons/default/smile.gif" class="bbc_emoticon" alt=":)"><br> <br> Will build a stereo variant on veroboard primarly to be used with the MB6582 later, the rawness and the extreme resonance should suit the SID sound <img src="http://midibox.org/forums/public/style_emoticons/default/smile.gif" class="bbc_emoticon" alt=":)"><br> <br> Highly recommended because of very good performance for material cost - less than 20€ in parts, just 7 opamps, about 25 resistors, two 1uF tantals and three pots, +15V/0/-15V or +12V/0/-12V PSU (e.g. from MBFM) required.<br> <br> Have fun!<br> Peter
