Motherboard from DIY Synth "DEGENERATOR"
Motherboard of my DIY Synth "DEGENERATOR"
Hi my fiends!

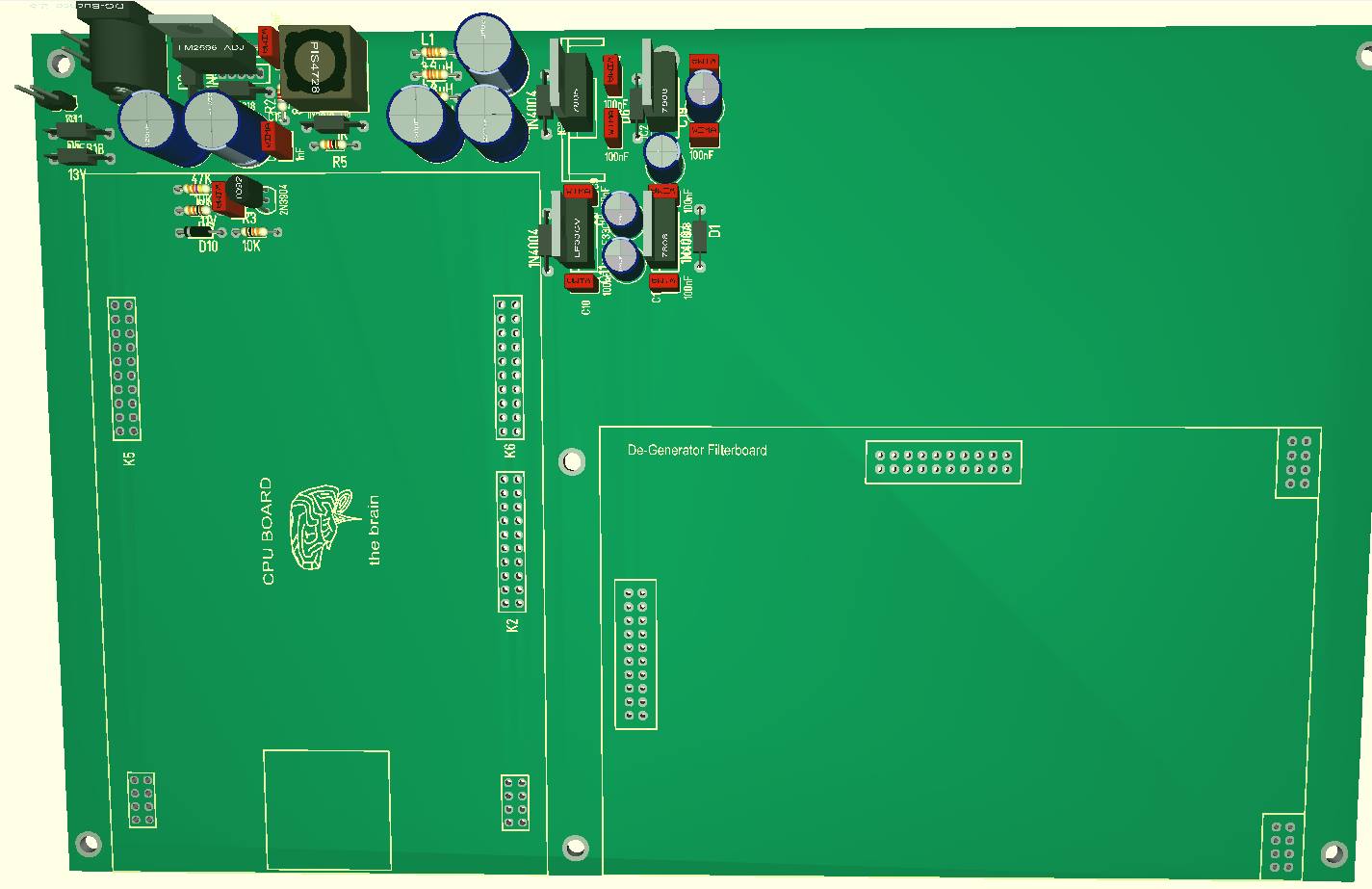

Just Andre sent me the first psb-designe from the motherboard of Degenerator. On left top site is the position from power connector and negativ switching regulator P3596. Under the regulator the components of the voltage monitoring. These Components are covered by the CPU board. Right next to the negativ switching regulator position 4 liniar voltage regulators for + 3.3V + 5V + 8V -8 Volt. For the + 5V regulator
there will be a heat sink. On the top right site of motherboard are planned the position of the Midi-jacks and the audio jacks. On the free place are planned the delay and VCA circuit.
