OLRE16, in colors.


Antichambre
 Share

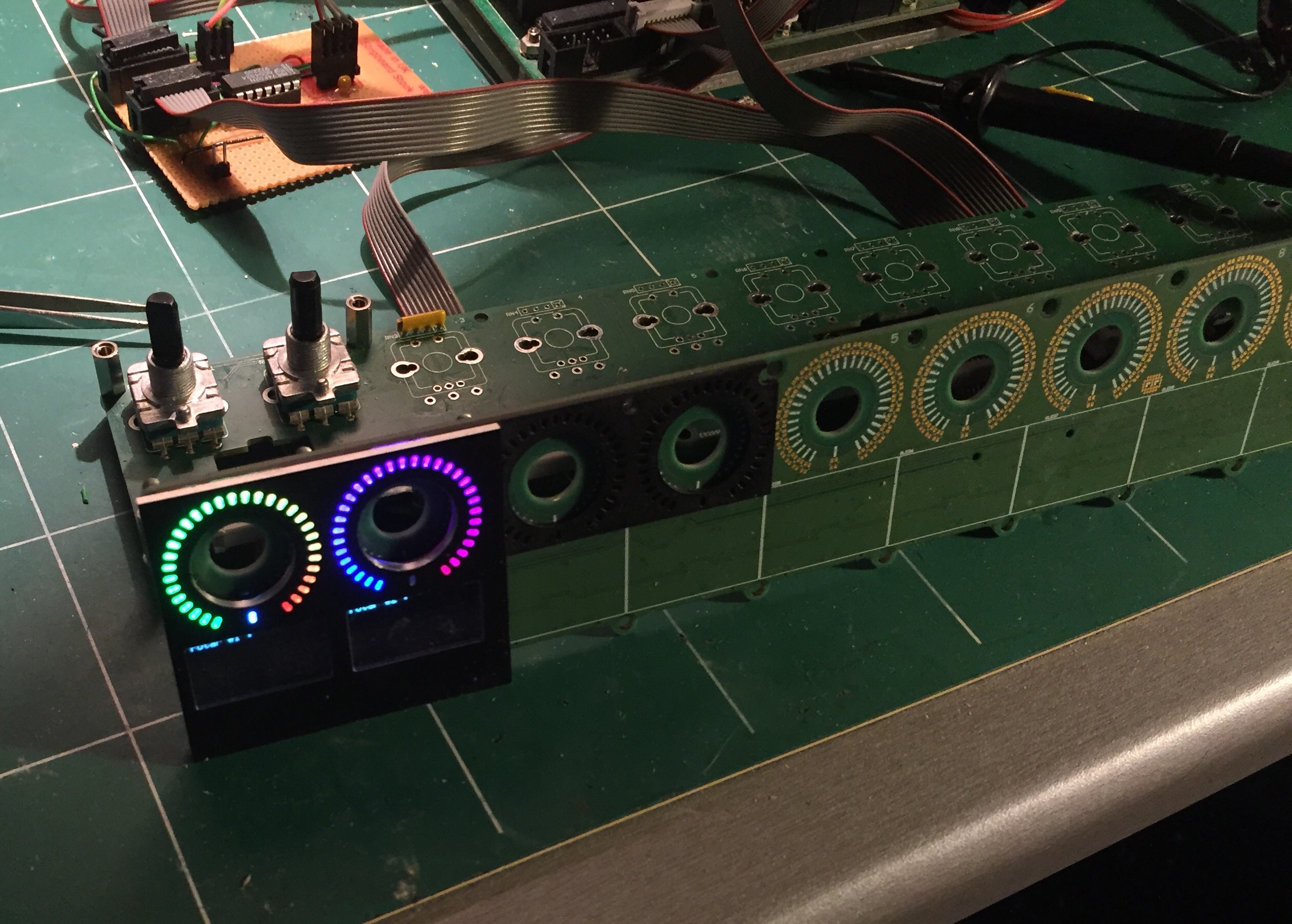

First ring is gradation from green to red with its step index in white
Second blue to red, step index off


From the album:

OLRE16

  • 9 images
  • 0 comments
  • 20 image comments

Photo Information for OLRE16, in colors.

Taken with Apple iPhone 6

  • 4.2 mm
  • 1/33
  • f f/2.2
  • ISO 160
View all photo EXIF information
 Share


Recommended Comments

It looks really great!

I removed led rings from my design because I though it was almost impossible for me to fit them in 1.1in channel strip and looks good. But it seems you managed to do it?

Link to comment

Yes no 3d, no fake lol
It was not easy. The difficulty was to route the rings. it's 16 rgb leds with 32:1 multiplexing, 2 mux adress by ring.then it's a 48 channels bus which passes thru the rings on full length of the board. This top board is 4 layers but even with that, it was hard work.
