Razer Posted October 2, 2010 Report Share Posted October 2, 2010 Hi guys, I would like to make my own set of PCBs. As I only want to use SMD parts I have to modify the schematic. Unfortunately I didn't find any schematic file on the website. I would need all the schematic files for the Midibox SEQ V4 (STM32 Core board, DIN, DOUT,...) I would be happy if anyone can provide these files. Best regards Robert Quote Link to comment Share on other sites More sharing options...
nILS Posted October 2, 2010 Report Share Posted October 2, 2010 Welcome abord, Razer :flowers: Let me guess - you have spent countless hours searching already, but somehow managed to not stumble across http://www.ucapps.de, right? Quote Link to comment Share on other sites More sharing options...
Razer Posted October 2, 2010 Author Report Share Posted October 2, 2010 Hi Nils, I know the website - for sure. I meant Eagle schematic file which belong to board files on this site. Robert Quote Link to comment Share on other sites More sharing options...

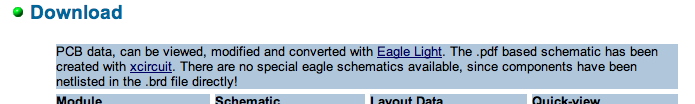

TK. Posted October 2, 2010 Report Share Posted October 2, 2010 It's really a FAQ, just 10 days ago Therefore I updated all pages to make it clear, that components have been netlisted directly in the .brd file, and that schematics have been created with xcircuit. Best Regards, Thorsten. Quote Link to comment Share on other sites More sharing options...
nILS Posted October 2, 2010 Report Share Posted October 2, 2010 DIY! :) Prolly the best thing to do, if you want a one big custom board anyways. Quote Link to comment Share on other sites More sharing options...
