4-Pole Mission Filter from DE-GENERATOR (stereo)

rolfdegen

By rolfdegen

 Share

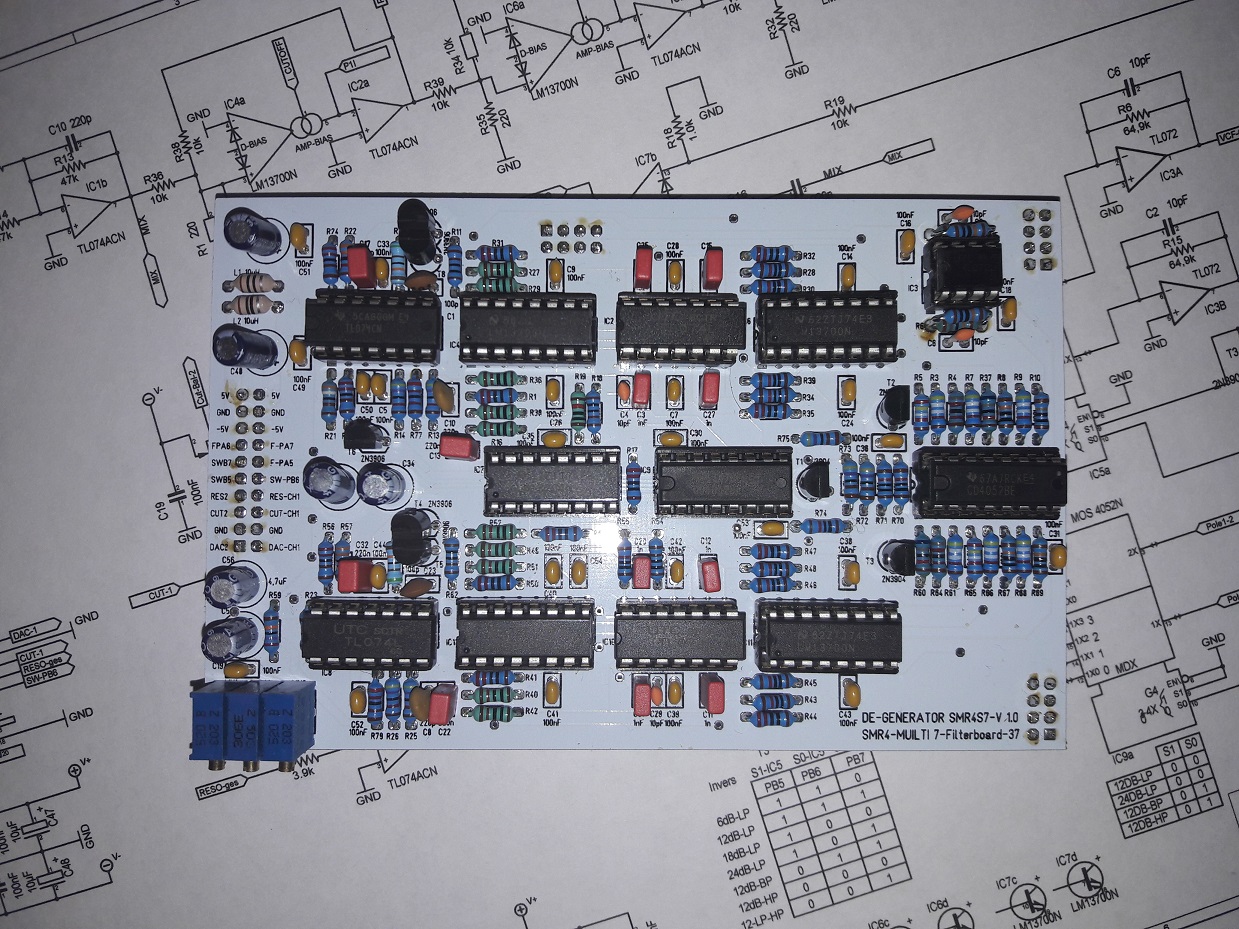

There are news again. The second filter board for the DE-GENERATOR is ready. It
Is a stereophonic 4-pole Mision filter with the following characteristics:

* Lowpass 6dB * Lowpass 12dB * Lowpass 18dB * Lowpass 24dB * Bandpass 12dB * Highpass 12dB * Lowpass + Highpass 12dB
