PIC Burner - How it could / should look like ;-)


Recommended Posts

Posted (edited)

Hi everybody!

I got several requests for more photos about the PIC Burner ive built - Here they are.

Please notice that this is not my construction, i just followed the guide on the mainpage ;-)

since this is not a Midibox HUI, i decided to post it here, hope this is ok.

here we go!

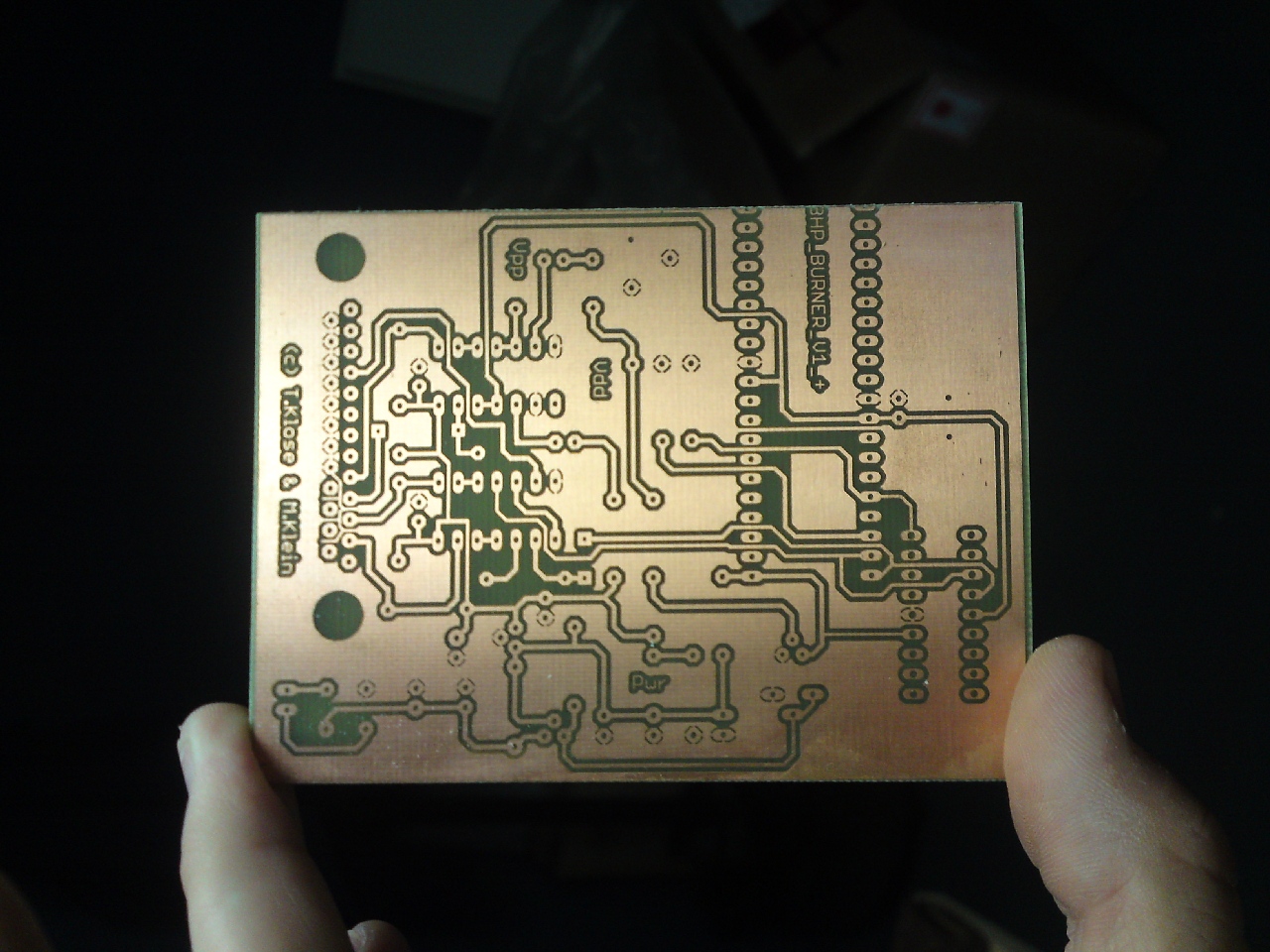

the virgin PCB fresh from the etching bath


first parts are mounted (upper right one )

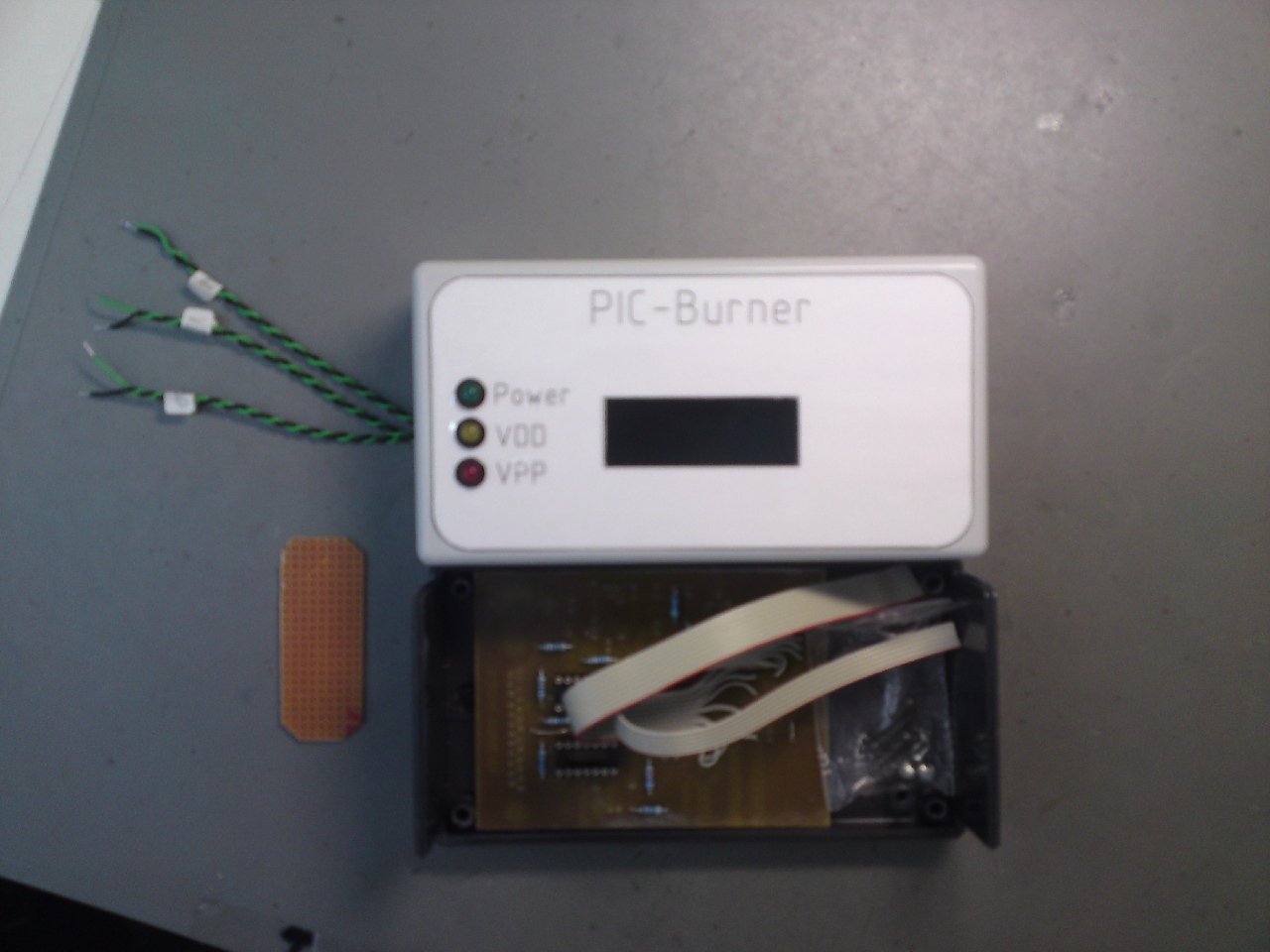

board is now placed into its boxing. you can see the ribbon cables which will connect to the PIC socket later. the socked will be mounted on that little piece on the left side

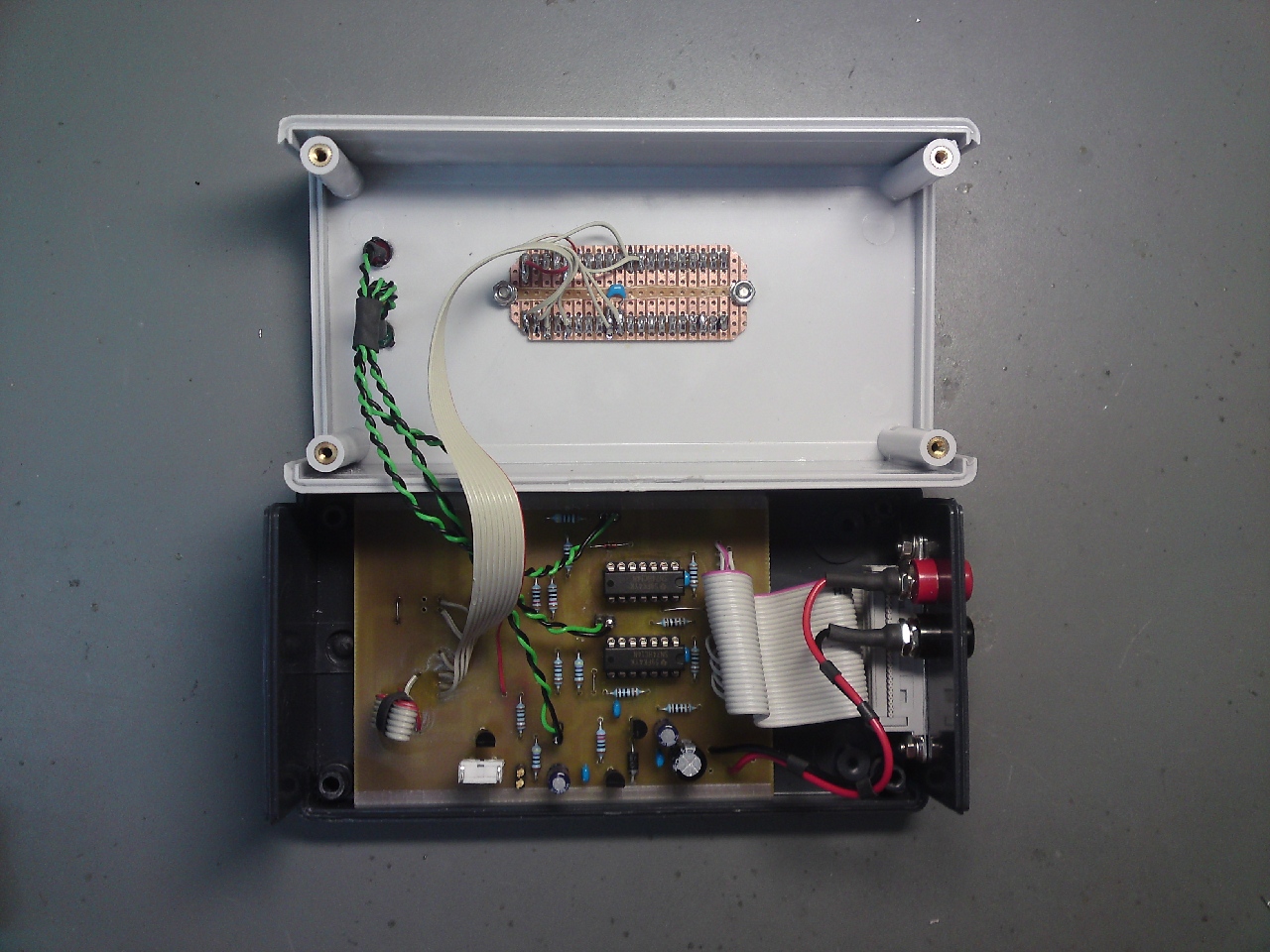

PIC ocket is now mounted and connected, LEDs too. that liddle ribbon cable in the lower left corner is for a second socket.

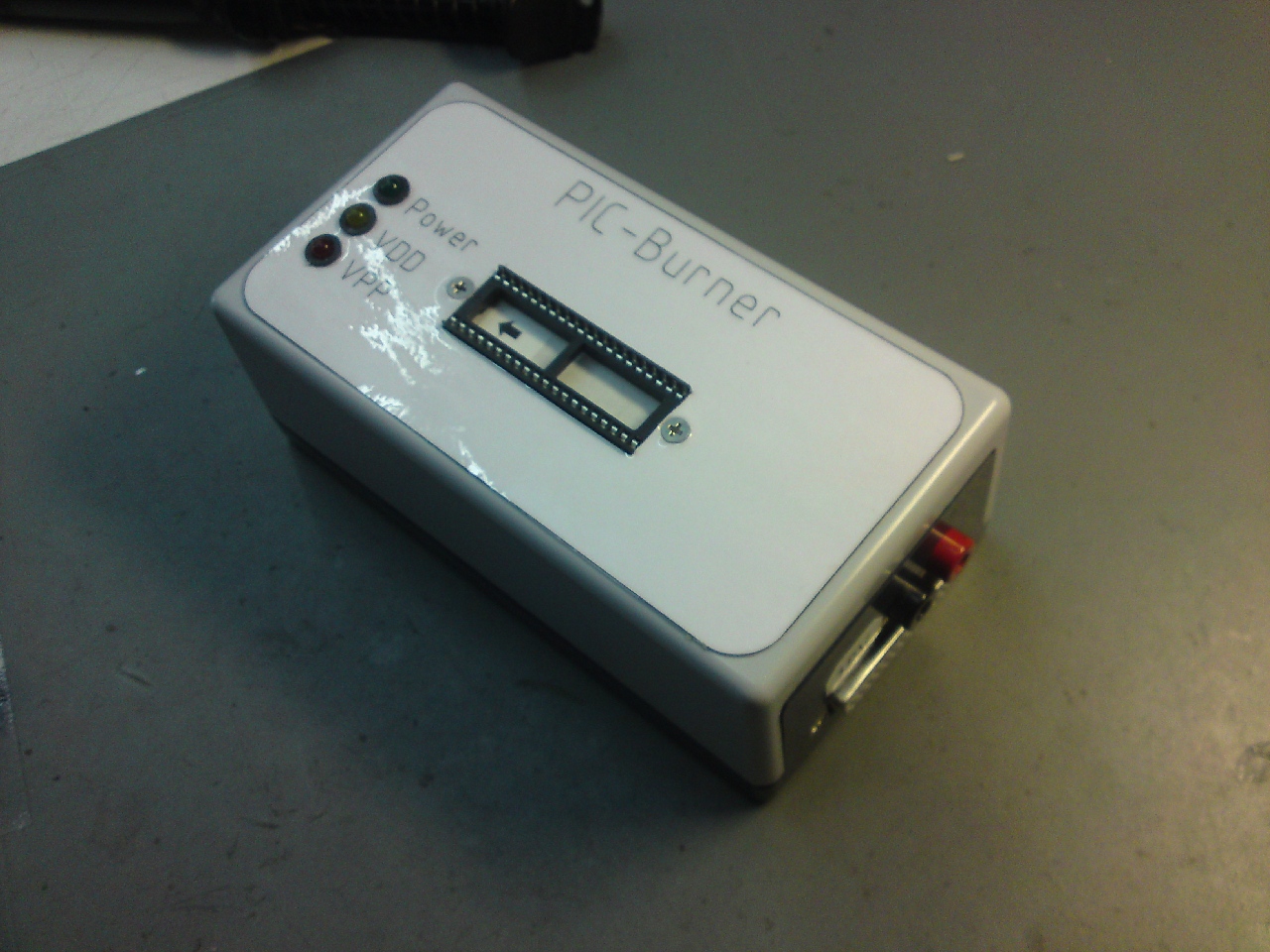

Ready to connect


it works!

Edited by Nasrudin
