MB64E Side project


technobreath

666 views

Yo!

Just thought I'd do a small blog entry on the sideproject (I consider the synths my main projects). A midibox 64e. This is a short term project, and all parts have arrived or are on their way. It's gonna have 9 encoders, lcd and some buttons + 4 expression pedal connections. One pedal is soon built - waiting for the last parts to arrive from the states :).

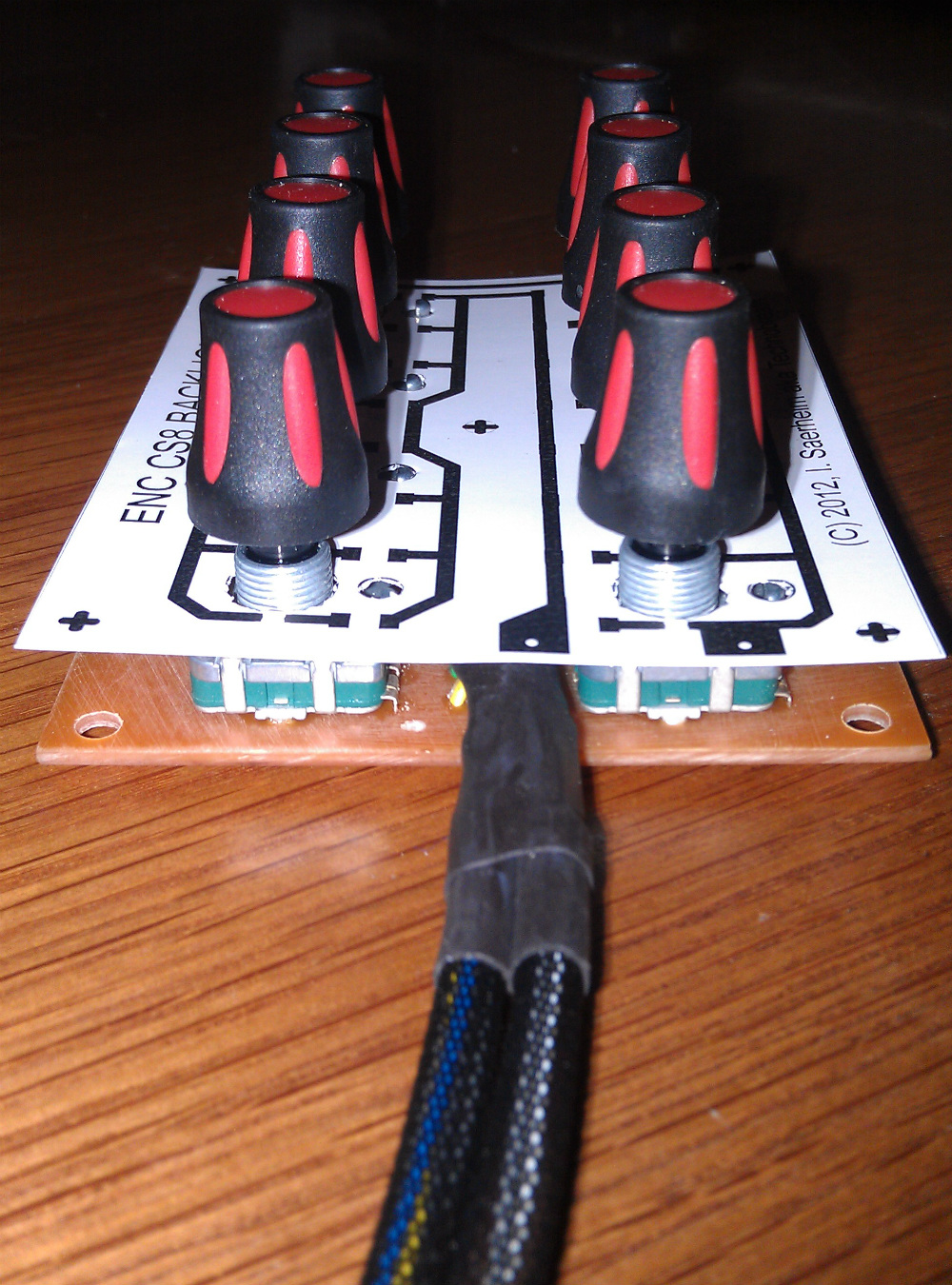

Anyway, some of you might have seen my picture of the encoder PCB. Now, here is a couple of pics of the finished built pcb. Also fitted on top is a PCB mockup (thick paper). This is gonna be housing all the smd leds for the knob backlights. This hasn't been etched yet because I discovered I needed to do a couple of layout changes - the leds are a bit too close to the encoder shaft than I'd like it to be... :).

blogentry-8299-0-39692100-1336687200_thu

blogentry-8299-0-10290200-1336687262_thu

blogentry-8299-0-72378800-1336687208_thu

blogentry-8299-0-70406100-1336687214_thu

blogentry-8299-0-95034700-1336687220_thu

blogentry-8299-0-90645000-1336687256_thu

As you can see, this is gonna be a encoder control surface sandwitch :D. The cables are rainbow ribbon cable from tim's and I have split them up and put on some nylon stockings :P. Heat shrink tubes holds them in place ;).
